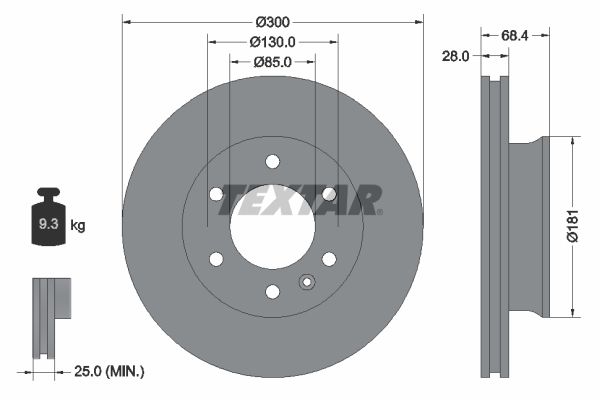

The Textar Braking (tmd) 93143203 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 300 mm outer diameter, 28 mm brake disc thickness, and 25 mm minimum thickness. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
internally vented
Outer Diameter [mm] :
300
Brake Disc Thickness [mm] :
28
Height [mm] :
68.4
Minimum thickness [mm] :
25
Surface :
Coated
Inner Diameter [mm] :
155
Bolt Hole Circle Ø [mm] :
130
Centering Diameter [mm] :
85
Hole Arrangement/Number :
06/07
Wheel Bolt Bore Diameter [mm] :
15.6
Supplementary Article/Supplementary Info 2 :
without wheel hub
Supplementary Article/Supplementary Info 2 :
without wheel bearing
Supplementary Article/Supplementary Info 2 :
without wheel studs
Packaging length [cm] :
30.8
Packaging width [cm] :
30.8
Packaging height [cm] :
16
Weight [kg] :
9.3
- Vendor TEXTAR BRAKING (TMD)
- SKU 93143203
- VW : 2E0615301
- MERCEDES-BENZ : 9064210012 9064210212 9074210100 907421010007 A9064210012 A9064210212 A9074210100 A907421010007
