Sensors, relays and control units: diagnosis, fitment and UK safety guidance
What this category covers
This category brings together three building blocks of modern vehicle electrics: sensors (inputs), relays (power switching), and control units (electronic modules that interpret data and command outputs). They underpin engine management, emissions systems, braking and stability functions, climate control, lighting, security and comfort features. A single faulty input can affect multiple systems because vehicles share data across communication networks.
How it works (step-by-step)
- Sensor reads a physical condition: e.g. oxygen content in exhaust gas, air mass flow, coolant temperature, wheel speed or pedal position.
- Signal is converted to an electrical value: analogue voltage, variable resistance, frequency signal, or a digital data frame.
- Control unit receives and validates the data: plausibility checks compare sensor values with expected ranges and with other sensors.
- Software calculates the required response: fuel injection duration, ignition timing, boost control, fan speed, EGR position, ABS pressure modulation, etc.
- Outputs are commanded: via drivers in the control unit, or through relays that switch high-current circuits (pumps, heaters, motors).
- Feedback confirms the result: closed-loop systems use additional sensors to fine-tune performance and emissions.
What performance depends on
- Accurate sensor data: drift, contamination and wiring resistance can produce “plausible but wrong” readings.
- Stable power and ground: poor battery health, corroded earth straps and voltage drops can trigger multiple fault codes.
- Clean connections: moisture ingress, damaged seals and pin fretting cause intermittent faults, especially in winter.
- Correct component specification: connectors, signal type and calibration must match the vehicle’s system.
- Software compatibility: some control units require coding/adaptation or pairing with immobiliser/security systems.
Vehicle types and applications
These parts are used across petrol, diesel, hybrid and electric vehicles. Petrol engines rely heavily on ignition and mixture control sensors; diesels often add boost control, rail pressure sensing, glow control and aftertreatment monitoring. Many vans and towing vehicles use higher-load cooling fan control and additional temperature/pressure monitoring. Modern cars also use more body control modules to coordinate lighting, wipers, central locking and driver-assistance functions.
Modern technologies and related systems
Today’s vehicles commonly use networked modules (CAN, LIN and other protocols) to share sensor data. Driver assistance and stability systems combine wheel-speed sensors with steering angle, yaw rate and acceleration sensors. Start-stop systems monitor battery state of charge and temperature. Emissions controls use multiple oxygen sensors and exhaust temperature/pressure signals. Even minor voltage instability can affect these systems, so good electrical fundamentals (battery, grounds and charging) matter when diagnosing faults.
Development and evolution overview
Early vehicles used simple switches and mechanical control. As emissions standards tightened and electronics became affordable, single-function controllers evolved into integrated engine ECUs and networked body systems. Sensors moved from basic resistive senders to fast, digital components with built-in diagnostics. Relays remain common for high current, but many vehicles now use solid-state power control within modules. This improves precision but increases the need for correct parts and careful fitting.
Core components (detailed breakdown)
Engine management sensors
These include crankshaft and camshaft position sensors (timing reference), MAF/MAP sensors (air measurement), throttle position sensors, coolant and intake air temperature sensors, knock sensors, and oil pressure/level sensors (where fitted). A fault here can cause misfires, stalling, poor cold starting or limp mode.
Emissions and aftertreatment sensing
Common examples include oxygen (lambda) sensors, exhaust temperature sensors, differential pressure sensors (commonly used to infer filter loading), and NOx-related sensing on some applications. These sensors are critical for emissions control and can trigger warning lights that may affect MOT outcomes if the MIL is illuminated.
Chassis and safety sensors
ABS wheel speed sensors, steering angle sensors, yaw rate sensors and brake pressure sensing (where fitted) feed stability systems. Because these relate directly to braking and stability assistance, faults should be treated with urgency.

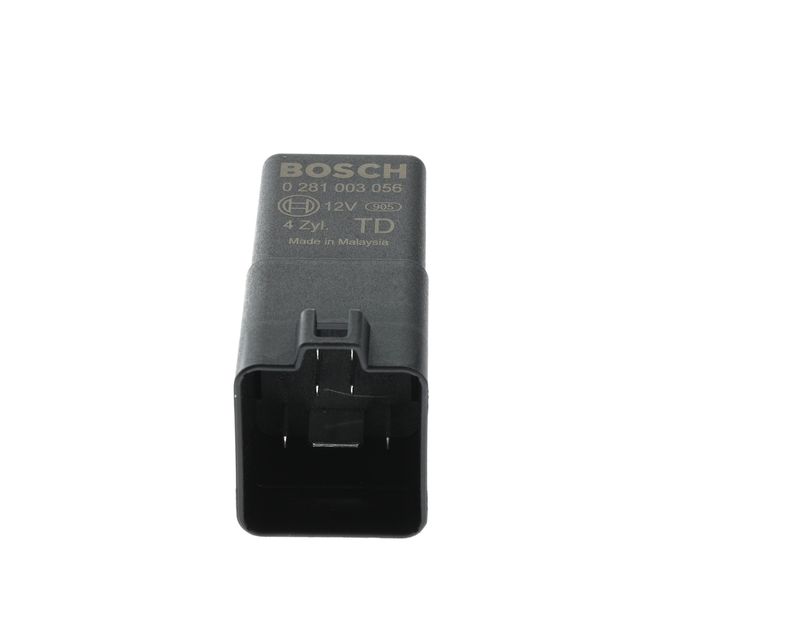

Relays and power switching
Relays allow a low-current control signal to switch a high-current circuit reliably. Common circuits include starter, fuel pump, cooling fan, glow plugs, heated screens and horn. Failures can be complete (no function) or intermittent, often worsened by heat, vibration or moisture.
Control units and modules
Control units range from engine ECUs to ABS modules, body control modules, airbag modules, transmission control units and climate controllers. Some faults are internal (failed drivers, water ingress), while others are caused by external issues such as wiring damage, low voltage or shorted actuators. Replacement can involve coding, parameter resets, or immobiliser pairing depending on vehicle design.
Comparison tables
Sensor signal types and what they mean for diagnostics
| Signal type | How it’s produced | Typical examples | Common failure pattern |
|---|---|---|---|
| Resistive (variable resistance) | Resistance changes with temperature/position | Coolant temp sender styles, some position sensors | Out-of-range reading from corrosion or internal wear |
| Analogue voltage | Sensor outputs a changing voltage | MAP, throttle position (by design) | Flatline, noisy signal, or “plausible but wrong” drift |
| Frequency / pulse | Outputs pulses proportional to speed/position | Crank/cam sensors, some speed sensors | Intermittent cut-out when hot; no-start/stall |
| Digital / networked | Data frames over LIN/CAN or smart outputs | Some steering angle/yaw sensors, smart battery sensors | Communication faults, multiple system warnings |
Relays vs solid-state switching
| Switching method | Strengths | Weaknesses | Typical symptom |
|---|---|---|---|
| Electromechanical relay | Handles high current, easy to test/replace | Contacts can pit/burn; can stick | Intermittent operation or total failure of a circuit |
| Solid-state (module-controlled) | Fast control, fewer moving parts | More sensitive to overheating/shorts; module dependent | Function disabled, fault codes, sometimes multiple outputs affected |
Wear parts and inspection guidance
| Item | What typically degrades | What to inspect | When to act |
|---|---|---|---|
| Wheel speed sensors & rings | Sensor face contamination, wiring, reluctor ring damage | Cracked insulation, debris, damaged ring/teeth | ABS/ESC warnings, erratic speed signal, braking anomalies |
| Engine position sensors | Heat damage, internal electronics, connector issues | Heat-soak no-start, intermittent stalling | Any stall/no-start pattern linked to heat or vibration |
| Relays | Contact wear, coil failure, corrosion | Loose fit, heat discoloration, intermittent function | Critical circuit failures (fuel pump, starter, fan) |
| Control unit connections | Pin fretting, water ingress, broken locks | Green corrosion, dampness, damaged seals | Multiple random codes or repeated communication faults |
Materials and construction choices
Sensors commonly use plastics and sealed housings with metal sensing elements, magnets or thin-film electronics. Many are designed to withstand high heat and vibration, but sealing is critical. Relays use copper coils, spring-loaded contacts and heat-resistant housings. Control units use circuit boards with conformal coatings and sealed cases; failures often involve moisture ingress, thermal cycling, or overload from a shorted actuator.
| Component | Typical construction feature | Why it matters | Common vulnerability |
|---|---|---|---|
| Sensor | Sealed housing + connector + sensing element | Stable readings in harsh environments | Water ingress, damaged connector seals |
| Relay | Coil + moving armature + contacts | Reliable high-current switching | Contact pitting, heat damage, corrosion |
| Control unit | PCB + drivers + sealed casing | Manages complex systems safely | Moisture damage, overload from shorts, poor grounds |
Fluids, specs and approvals (where relevant)
While sensors and relays don’t use service fluids, they often monitor systems that do. Correct fluids and approvals matter because the electronics react to what they measure. For example, incorrect coolant mix can cause overheating and misleading temperature behaviour; incorrect brake fluid condition can affect brake pressure modulation; incorrect engine oil grade can influence oil pressure readings and timing system behaviour on some designs.
| System monitored | Fluid/spec relevance | Example monitored by | Risk if wrong/neglected |
|---|---|---|---|
| Cooling system | Correct coolant type/mix and level | Coolant temperature sensor, fan control | Overheating, fan issues, false readings |
| Braking | Brake fluid condition and correct spec | ABS sensors/modules, brake pressure sensing (where fitted) | Reduced braking performance; stability faults may be triggered |
| Engine lubrication | Correct oil grade and level | Oil pressure/level sensor (where fitted) | Warnings, poor protection, potential engine damage |
Operating conditions, overheating and limits
Electronics are affected by heat, vibration and moisture. Under-bonnet components face high temperatures and thermal cycling. Road spray, salt and engine-bay washing can compromise connectors. Overheating from a failed cooling fan relay, shorted wiring, or blocked airflow can also damage modules and sensors.
| Operating condition | Typical effect | Common symptom | Practical check |
|---|---|---|---|
| Heat soak after shutdown | Sensor/module drift or failure when hot | Hot no-start, stall after short stop | Compare cold vs hot behaviour; check fault memory |
| Damp/salty winter roads | Connector corrosion and leakage paths | Intermittent warning lights | Inspect seals, pins and wiring routing |
| High current demand | Relay contact heating, voltage drop | Fan/pump cuts out under load | Check voltage at load and relay temperature |
| Low battery voltage | Module resets/communication errors | Multiple random codes, functions unavailable | Battery/charging test before replacing parts |
Fault symptoms and urgency
| Symptom | Likely area | Urgency | Why |
|---|---|---|---|
| Engine cranks but won’t start | Crank sensor, fuel pump relay, ECU power supply | High | Can leave you stranded; repeated attempts can drain battery |
| ABS/ESC warning lights | Wheel speed sensor/wiring, ABS module | High | Safety systems may be reduced; braking behaviour can change |
| Cooling fan not operating | Fan relay, temperature input, fan control module | High | Overheating risk, potential engine damage |
| Intermittent electrical faults | Relays, grounds, connectors, body module power | Medium–High | Can escalate; difficult to diagnose once worsened by corrosion |
| Emissions warning / MIL on | Lambda/air measurement, temperature sensing, control issues | Medium | May affect emissions compliance and MOT outcome |
Maintenance and repair guidance
- Start with the basics: battery state, charging voltage, main grounds and fuses before replacing electronics.
- Read fault codes and freeze-frame data: codes guide diagnosis, but confirm with live data (sensor readings) and a visual inspection.
- Inspect connectors properly: look for pin corrosion, water trails, broken locks, chafed wiring and oil contamination.
- Test relays under load: a relay can click but still fail due to burnt contacts; verify voltage at the component (fan, pump, heater).
- Check sensor installation: correct seating, clean mounting surfaces, correct air gap (where applicable) and undamaged seals.
- Be prepared for calibration: some sensors/modules (e.g. steering angle sensors, throttle bodies, certain control units) may need adaptation/coding after replacement.
Common mistakes to avoid
- Replacing a sensor because of a code without checking wiring, power, ground and connector condition.
- Ignoring low voltage: weak batteries can create multiple misleading faults across modules.
- Mixing up similar-looking sensors with different signal types or connector keys.
- Using aggressive cleaning methods on connectors that damage seals or push water further into the harness.
- Fitting a control unit without understanding coding/immobiliser requirements, leading to a non-start or disabled functions.
- Not addressing the root cause (e.g. a seized fan motor) and repeatedly burning out relays or module drivers.
Upgrades and tuning considerations (UK road/MOT caveats)
Electrical upgrades can include improved relays or wiring improvements for reliability, but any modification should be safe, fused correctly and routed to avoid chafing and heat. Engine tuning that changes airflow or fuelling can place more demand on sensors (MAF/MAP, lambda) and control strategies. In the UK, your vehicle must remain road-legal and emissions compliant; disabling emissions-related systems or bypassing monitoring can lead to warning lights and potential MOT failure. If you modify, do it responsibly and ensure the car remains safe and stable in real-world conditions.
UK MOT, legal and safety notes
Safety-related electronics matter for roadworthiness. ABS and ESC warning lights indicate reduced assistance and should be investigated quickly. An illuminated engine management light can also be relevant to emissions compliance at MOT. Always disconnect the battery safely where appropriate and follow correct procedures around airbags and high-current circuits. If you’re unsure about module coding, immobiliser pairing or safety systems, seek professional support—incorrect work can create safety risks.
