The terminal carries high current with very little allowable resistance
A starter may draw hundreds of amps. At that current, a few milliohms produce meaningful voltage loss and heat. The joint must be electrically clean, mechanically tight and protected from corrosion without distorting the lead post.
Modern terminals can also measure current and distribute fused power, so cutting them away may remove safety and charging functions.
Terminal designs

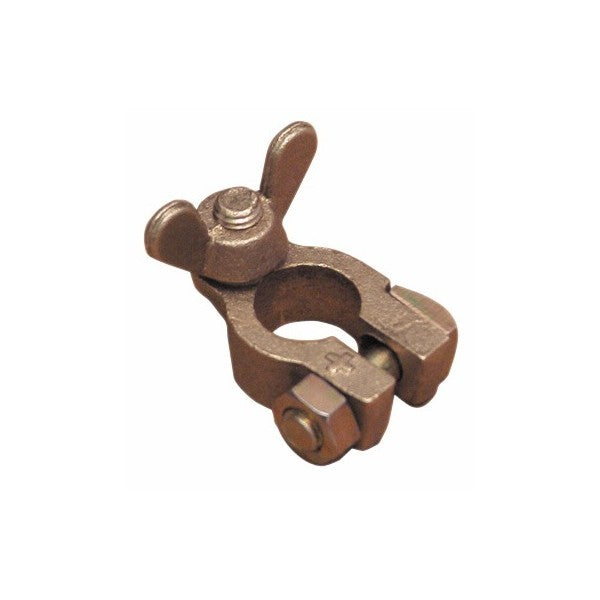

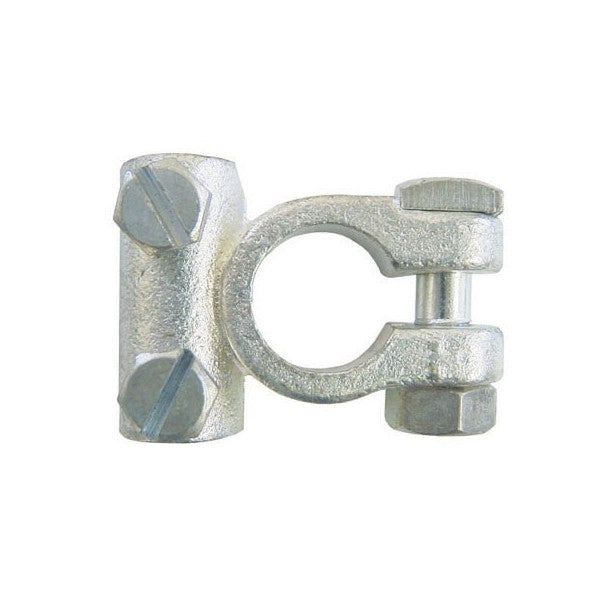

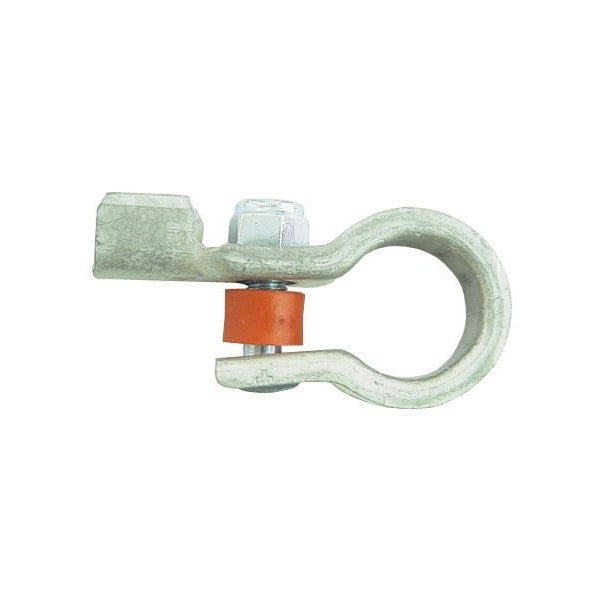

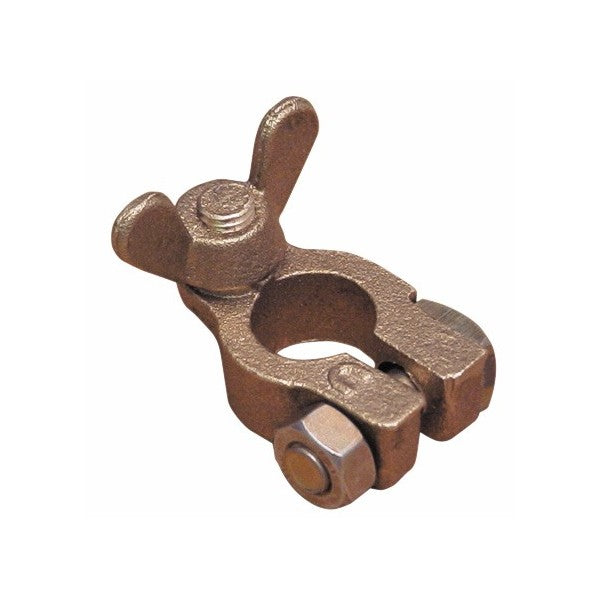

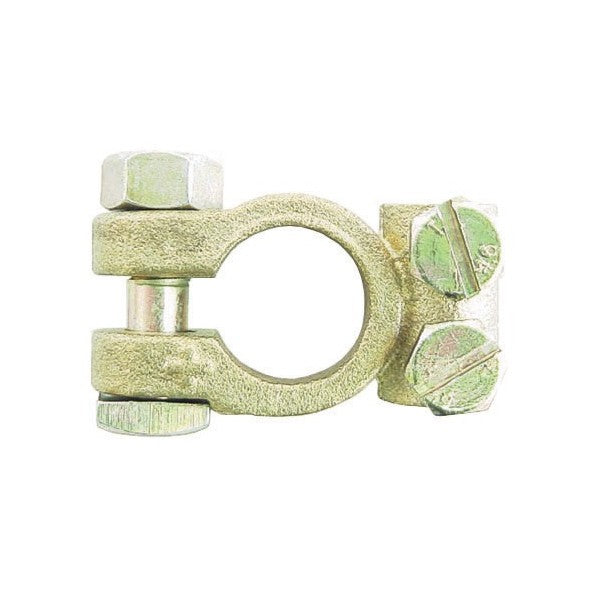

| Design | Function | Variation | Service concern |
|---|---|---|---|
| Taper-post clamp | Grips conventional battery post. | Positive/negative diameters and orientation. | Correct depth and clamp torque. |
| Side/remote stud | Bolted battery or jump connection. | Thread, seat and insulators. | No overtightening or crossed cables. |
| Fused positive block | Distributes protected high-current feeds. | Fuse ratings and cable studs. | Replace correct complete section. |
| Battery sensor terminal | Measures current, voltage and temperature. | LIN/data connector and calibration. | Do not bypass sensor path. |

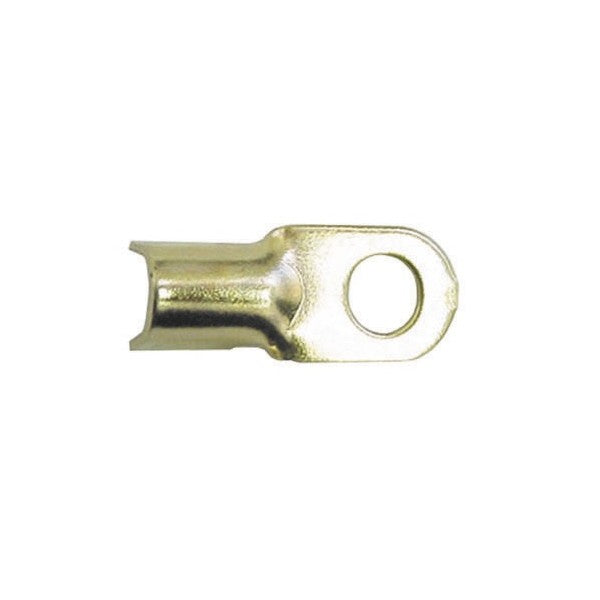

| Crimped cable terminal | Joins conductor strands to clamp. | Cable size, material and sealed barrel. | Use qualified crimp tooling. |
Exact identification
Polarity, post and cable arrangement must all match
| Check | Risk if wrong |
|---|---|
| Positive/negative post size | Loose clamp or damaged post. |
| Cable section and length | Voltage drop, heat or strain. |
| Stud/fuse layout | Unprotected or missing circuit. |
| Sensor/protocol | Charging and stop-start faults. |
| Clamp orientation | Cover, bonnet or body contact. |
| Material/plating | Galvanic corrosion and poor crimp. |
Symptoms and diagnosis
| Symptom | Terminal possibility | Other checks | Urgency |
|---|---|---|---|
| Slow/no crank | High resistance or loose clamp. | Battery, starter and earth strap. | High. |
| Terminal hot | Resistance or overload. | Starter current and cable size. | Immediate. |
| Intermittent reset | Loose connection. | Battery internal link and fuse block. | Prompt. |
| White/blue corrosion | Acid vapour and dissimilar metals. | Battery seal/vent and overcharging. | High. |
| Charging fault | Sensor or voltage drop. | Alternator, belt and network. | Prompt. |
| Battery drains | Sensor bypass or poor sleep data. | Parasitic consumers and battery health. | Diagnose. |
Voltage-drop testing
Measure across the connection while current flows: battery post to clamp, clamp to cable and negative post to engine/body. A clean-looking joint can fail only under starter load.
Use fused leads away from moving parts and compare with vehicle limits. Do not pierce insulation where corrosion can begin.
Battery condition and charging
A leaking, overcharged or internally damaged battery continually corrodes a new terminal. Test state of charge, conductance/capacity and alternator regulation. Confirm vent tube routing.
Stop for a frozen, swollen, cracked or strongly gassing battery. Disconnecting it can create sparks near explosive hydrogen.
Corrosion beneath insulation
Capillary action draws electrolyte into copper strands, producing green or black corrosion and stiffness. Cutting back only the visible end may leave resistance farther along the cable.
Measure voltage drop and inspect a defined cable length. Replace the cable assembly if clean conductor cannot be reached without losing routing or capacity.
Safe power-down
| Stage | Control | Prevents |
|---|---|---|
| Save data | Record codes/settings and battery history. | Lost diagnosis. |
| Sleep modules | Close/prepare vehicle and wait specified time. | Network and latch faults. |
| Remove key/charger | Eliminate external power sources. | Unexpected energisation. |
| Disconnect earth first | Use insulated tools per procedure. | Tool short from positive to body. |
| Secure cables | Prevent spring-back to post. | Accidental reconnection. |
| High-voltage awareness | Apply EV/hybrid trained isolation. | Electric shock. |
Cleaning and electrolyte safety
Wear eye and chemical-resistant protection. Battery residue may contain acid and lead compounds. Follow a controlled neutralisation and waste process; do not blow dry powder into the air.
Keep neutralising solution out of battery cells and electrical modules. Rinse/dry only as the component procedure permits.
Terminal and cable repair
Use the correct cable material, cross-section, closed-barrel terminal, crimper and environmental seal. Pliers, hammer crimps and solder-only joints cannot prove low resistance or strain strength.
High-current cables flex with engine movement. Restore clips, bend radius, abrasion sleeves and clearance from exhaust.
Sensor-terminal considerations
The negative battery sensor must normally carry all vehicle current except explicitly routed circuits. Connecting accessories directly to the battery side can bypass measurement and corrupt state-of-charge calculations.
Handle the sensor by its body, protect the data connector and run battery-monitor reset or registration where specified.
Installation
| Check | Correct method |
|---|---|
| Post/clamp | Clean, square, fully seated without hammering. |
| Clamp bolt | Torque to specification; gap need not close fully. |
| Cable studs | Correct eyelet order, insulators and torque. |
| Fuse block | No cracks, heat or bypassed fusible links. |
| Cover | Positive parts fully insulated. |
| Routing | No bonnet, body or moving-part contact. |
Protective compounds
Where approved, apply terminal protectant after the metal-to-metal connection is made and torqued. Grease between dirty or loose contact faces does not restore conductivity.
Use products compatible with lead, copper, plastics and sensors. Keep aerosol away from vent openings and belts.
Remote jump-start terminals
Vehicles with batteries under seats, floors or in luggage compartments often provide engineered underbonnet jump points. These maintain safe polarity, current path and battery-sensor measurement. Use them when the vehicle procedure instructs rather than reaching an inaccessible battery with improvised extensions.
Inspect a remote positive post for cracked insulation, loose mounting and heat. Its protective cap must close fully. The designated negative jump point is chosen to control sparks away from battery gas and to provide a sound engine/body path.
Fusible links and pyrotechnic disconnects
A positive distribution block may include strip fuses or a pyrotechnic battery safety terminal that disconnects selected circuits during a collision. A visually intact strip can crack at a hidden joint, so measure voltage on both sides under appropriate load.
Pyrotechnic devices contain an initiator and require restraint-system handling, diagnostic records and exact replacement. Never bridge one with cable or test its firing circuit using an ordinary powered probe.
Accessory connections
Additional amplifiers, chargers and trackers need a fused connection sized for their cable and located according to electrical and battery-sensor guidance. Stacking many ring terminals prevents the original nut seating and leaves exposed live metal.
Use a proper auxiliary distribution point and fuse close to the source. Route through grommets, protect from abrasion and keep all added current on the measured side of an intelligent battery sensor unless documentation says otherwise.
Thermal verification after repair
After a controlled cranking and charging load, compare temperature at the post, clamp, crimp and nearby cable using a suitable contact or thermal instrument. A local hot spot indicates resistance even if voltage appears acceptable during a brief test.
Recheck mechanical security only with the circuit safely isolated; do not touch a suspect live connection. Persistent heat requires replacement or renewed diagnosis, not more clamp torque.
Battery replacement interactions
A different case size or post layout can strain cables and rotate the clamp against the bonnet. Confirm hold-down, vent, polarity, technology and capacity before connecting. The hold-down must secure the case without crushing it.
Never extend a cable by leaving a terminal half-seated. Fit the correct battery and cable assembly, then perform registration and state-of-charge setup required by the management system.
Commissioning
Reconnect positive circuits and earth in the specified order, then restore windows, steering and other learned functions. Register the battery if replaced.
Check starter and charging voltage drop, terminal temperature and sensor data. After vehicle sleep, verify parasitic current without waking modules accidentally.
Common mistakes
Do not swap positive and negative clamps, hammer the post, stack unprotected accessory rings, bypass fusible links, overtighten lead, omit covers or grease over corrosion. Do not use a body bolt as an unverified high-current earth.
A temporary screw-type clamp should meet cable capacity and durability; many roadside styles are unsuitable as permanent sensor/fuse replacements.
UK roadworthiness and safety
A loose battery or exposed positive terminal can short in a collision. Wiring must be secure, insulated and free from dangerous overheating. Charging faults can disable lighting and control systems.
Stop if a terminal smokes, glows, arcs or becomes too hot, and keep ignition sources away from battery gas.
Practical battery-terminal FAQs
Q: Are positive and negative clamps the same size?
A: No. Conventional tapered posts use different diameters.
Q: Does corrosion prove the terminal is faulty?
A: Check battery leakage, venting, overcharge and cable condition too.
Q: Can a clean-looking joint have resistance?
A: Yes. Test voltage drop while current flows.
Q: Which terminal is disconnected first?
A: Normally earth/negative, following vehicle guidance.
Q: Can the clamp be hammered down?
A: No. It can damage the battery post and case.
Q: Should grease go between post and clamp?
A: Make and torque a clean connection first; follow protectant guidance.
Q: Can a battery sensor be bypassed?
A: No. Charging management depends on measured current.
Q: Is solder enough for a starter cable?
A: Use an approved high-current crimp and sealing process.
Q: Why is a terminal hot?
A: High resistance or excessive current is generating heat.
Q: Must a battery be registered?
A: Many managed systems require it after replacement.
Q: Can white powder be blown away?
A: No. Control acidic/lead-containing dust safely.
Q: Is the 12 V battery safe on an EV?
A: High-voltage hazards remain and require separate procedures.
Q: Can an exposed positive stud remain uncovered?
A: No. Restore its designed insulation.
