Bit Sets

A driver bit works by matching the fastener's geometry across maximum contact area

Torque passes through faces, flanks or lobes inside the recess. Correct fit spreads stress; undersize, wrong-angle or worn tips load only corners and cam out.

Selection, alignment and tool control matter as much as alloy strength.

Common bit profiles

Phillips, Pozidriv and other cross heads

Phillips flanks taper and can cam out under overload. Pozidriv adds secondary ribs and more parallel engagement. A Phillips bit in a Pozidriv recess contacts poorly; the reverse also damages edges.

Japanese cross-head standards may require their own driver. Check markings and application data.

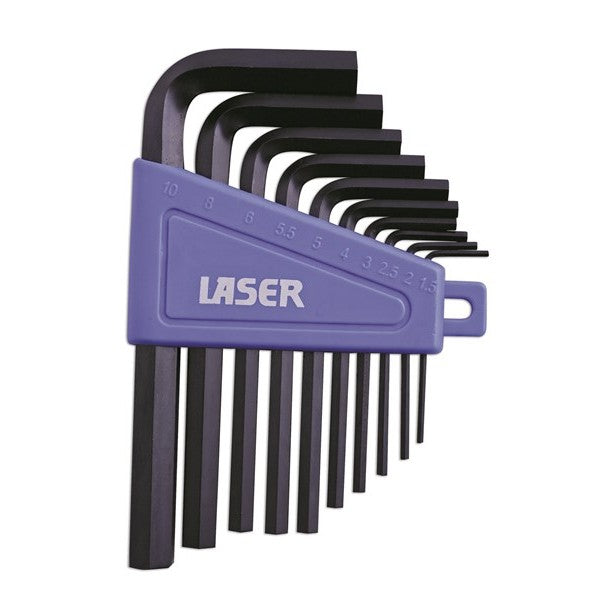

Metric and imperial hex sizes

Near-sized keys can enter the recess while still loading only the corners

For example, an imperial size may feel close to a metric socket but have enough clearance to round it under torque. Remove rust, measure accurately and use the marked system.

Ball-ended hex bits aid angled access but generally carry less breakaway torque than a straight full-depth tip.

Torx families

Standard Torx, tamper-resistant Torx and Torx Plus differ in lobe shape and centre feature. External E-Torx heads require sockets rather than male bits. Do not hammer one family into another.

Correct lobes seat deeply with minimal rotational play.

Set-selection factors

Insert bits, power bits and bit sockets

Short insert bits sit in a holder; one-piece power bits have extended 1/4-inch hex shanks; bit sockets bond or press a tip into a square-drive socket. Choose a drive that transmits required torque without excessive adaptors.

Small precision bits are not suitable for a large ratchet simply because an adaptor connects them.

Impact-rated construction

Impact bits are designed with tougher heat treatment and often a torsion zone to absorb pulses. Hard brittle bits intended for steady hand torque can shatter in an impact driver.

Use impact-rated holders and sockets throughout the drive chain and obey maximum tool settings.

Tool steel and heat treatment

Chrome-vanadium, chrome-molybdenum and proprietary alloy descriptions do not by themselves guarantee performance. Tip geometry, forging/machining, heat treatment and quality control determine hardness and toughness.

Very hard tips resist wear but can chip; tougher impact designs may show controlled wear instead.

Coatings and finishes

Black oxide and phosphate offer limited corrosion protection and retain a little oil. Other coatings target wear or identification. A decorative colour is not proof of insulation or impact rating.

Keep bit surfaces clean so cracks and rounding remain visible.

Fastener assessment before force

Cleaning the recess

Use a pick, brush and compressed air only with eye protection and control of debris. Scrape paint from the walls without altering metal. A bit should reach the bottom or designed shoulder.

In brakes or fuel equipment, prevent dirt and penetrating fluid reaching friction or clean-system surfaces.

Full seating and alignment

Press the bit squarely into the fastener and maintain axial force. Long extensions amplify angular error. Support the ratchet head so side load does not lever the tip from the recess.

For concealed fasteners, confirm engagement by feel at low force before applying torque.

Manual tools

A screwdriver gives good feedback for small screws. A T-handle balances control and leverage. Ratchets provide torque in restricted spaces but can encourage excessive force on small bits.

Use a breaker bar only when the bit, socket and fastener are sized for it; avoid cheater pipes unless an approved tool system allows them.

Power drivers and drills

Set low speed, use a clutch for assembly and stop before final torque where the fastener has a specification. High speed creates heat and ejects a camming bit repeatedly, destroying the recess.

Start threads manually. Power cannot distinguish cross-threading from useful resistance.

Torque accuracy

For safety-critical fasteners, use a calibrated torque tool with the specified drive and clean thread condition. Universal joints, extensions and crowfoot arrangements can alter applied torque or alignment.

Do not use an impact wrench as a torque measurement unless a documented torque-control procedure requires it.

Removing seized fasteners

Apply penetrant time, controlled tapping or heat only if surrounding materials and fire risk permit. A manual impact driver converts hammer force into simultaneous inward pressure and rotation, useful on some screws.

Plan the next step before the recess fails. Repeated slipping work-hardens and rounds the head.

Extracting damaged screws

Options include gripping an exposed head, cutting a slot, using a dedicated extractor, welding a nut or drilling. Centre punching and drill control protect the parent thread. Hardened broken extractors are difficult to machine.

Protect wiring, fuel, glass and swarf-sensitive components; seek specialist help when access or consequences are severe.

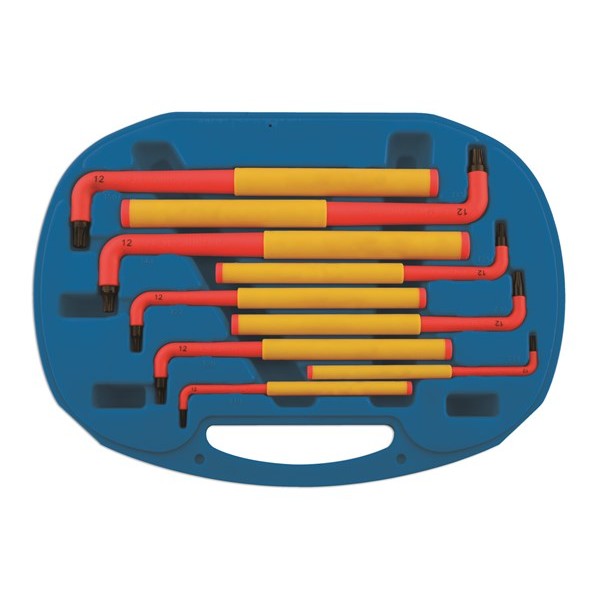

Electrical work and insulation

A plastic handle, coloured coating or rubber bit holder is not certified insulation. Work on live circuits only when authorised and with voltage-rated tools, PPE and procedure. Vehicle high-voltage systems require trained isolation.

Disconnect low-voltage power where practical and verify absence according to service data.

Bit inspection

Compare opposite lobes and wings under bright light. Rounding, twisting, mushrooming, cracks or a damaged shank retention groove warrants replacement. A magnetic holder should release positively and run without excessive wobble.

Never grind an impact bit; heat and shape changes make behaviour unpredictable.

Storage and corrosion prevention

Return dry bits to labelled positions so missing sizes are obvious. Keep the case free of grinding dust, which is abrasive and magnetic. Apply a light corrosion inhibitor for storage, then wipe before clean assembly work.

Do not mix metric and imperial loose bits in an unmarked compartment.

Safety and workshop discipline

Wear eye protection, especially with impact or seized fasteners. Secure the workpiece and position hands away from the slip path. Use hearing protection with prolonged impact tools.

Discard shattered pieces carefully. A fastener serving brakes, steering, suspension or restraints must be replaced and tightened to its defined procedure.

Common mistakes

• Using Phillips in a Pozidriv recess.
• Choosing a near imperial size for a metric hex.
• Driving before dirt has been removed from the recess.
• Using a hand bit in an impact driver.
• Running a power tool at full speed into final seating.
• Stacking adaptors until the bit cannot remain square.
• Continuing after the tip begins to slip.
• Treating coloured sleeves as electrical insulation.

Practical bit-set FAQs

Q: Are Phillips and Pozidriv interchangeable?
A: No; their flank and rib geometry differs.

Q: Can an imperial hex fit a metric screw?
A: A near size may enter but can round the recess under load.

Q: What makes a bit impact-rated?
A: Its material, heat treatment and geometry are designed for shock loading.

Q: Can any bit be used with a ratchet?
A: Only within the bit and holder's torque capacity.

Q: Why clean the recess first?
A: Full depth maximises contact and prevents cam-out.

Q: Are ball-end hex bits for high breakaway torque?
A: Usually a straight full-depth end is stronger.

Q: Can a bit be ground back into shape?
A: No; geometry and heat treatment would be compromised.

Q: Should power tools tighten to final torque?
A: Use a calibrated method for specified fasteners.

Q: What should happen when a bit slips?
A: Stop, reassess size, seating and fastener condition.

Q: Is a magnetic holder insulated?
A: Not unless it carries the required certified voltage rating.

Q: When should a bit be discarded?
A: For cracks, chips, twisting, rounding or damaged retention.

Q: Why return bits to marked slots?
A: It prevents near-size errors and shows missing tools.

Q: What protects a critical fastener?
A: Exact profile, controlled technique and the specified final torque.
