Successful audio installation begins with vehicle integration
An audio system shares power, grounding, controls and physical space with the vehicle. A factory head unit may also generate warning sounds, display parking information and communicate with several modules.
Plan what must be retained before choosing adapters. Good sound cannot compensate for lost safety chimes, damaged networks or unsafe power wiring.
Main accessory families
| Accessory | Purpose | Critical check |
|---|---|---|
| Fascia adapter | Mounts a replacement head unit neatly. | Dash generation, unit size and ventilation clearance. |
| Wiring harness | Adapts factory connector without cutting loom. | Pin assignment, amplifier and switched-power logic. |
| Steering-control interface | Translates button messages for new radio. | Vehicle protocol and head-unit patch lead. |
| Aerial adapter | Converts connector and may supply phantom power. | Connector type, diversity and amplification. |

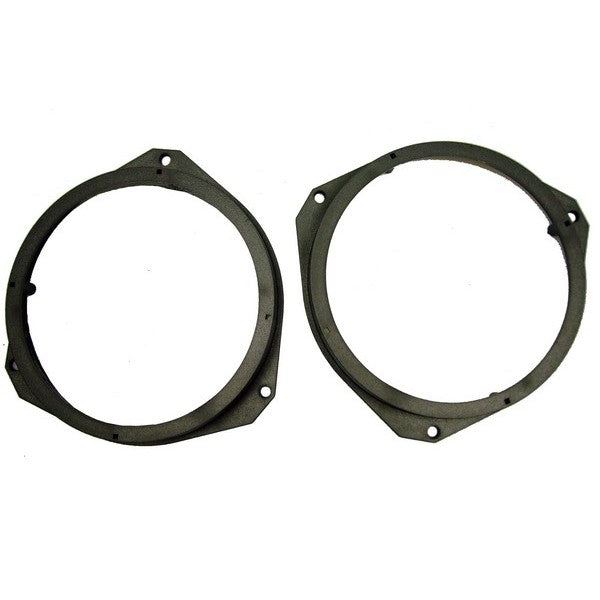

| Speaker adapter ring | Mounts speaker to original opening. | Depth, window clearance and sealing. |
| Line-output converter | Creates amplifier-level signal from speaker outputs. | Factory equalisation, balanced signals and power rating. |
| Power wiring kit | Supplies amplifier with protected current path. | True conductor area, fuse and terminal quality. |
| Sound treatment | Controls panel resonance and road noise. | Heat, weight, drain and airbag compatibility. |
Head-unit sizes and fascia fit
Single- and double-DIN
DIN describes nominal chassis dimensions, not the shape of every factory opening. Integrated screens and curved dashboards require a model-specific fascia and support cage.
Depth
Rear connectors, cooling fins and cable bends need clearance. Forcing a unit back can crush harnesses or block HVAC ducts.
Support
The radio should be retained by an approved cage or brackets, not wedged by trim. Heavy floating screens need stable mounting through bumps.
Vehicle wiring architectures
Older radios may have separate battery, ignition, illumination and speaker wires. Later vehicles wake the radio over CAN and may not provide a traditional switched feed. An interface generates the correct accessory output without loading a data line.
Fibre-optic audio networks need an optical interface or compatible amplifier strategy. Cutting the loop can disable multiple modules.
Exact integration checks
| Check | Possible variation | Why it matters |
|---|---|---|
| Build date | Connector and network generation. | Dashboard appearance may remain similar. |
| Factory amplifier | Analogue, digital, optical or speaker-level input. | Determines interface and turn-on. |
| Speaker impedance | Low-impedance premium or standard drivers. | Wrong load overheats amplifier or reduces output. |
| Steering controls | Resistive, CAN or LIN. | Needs correct translator and programming. |
| Aerial system | Passive, amplified, diversity or DAB. | May need power and multiple connectors. |
| Camera/parking | Video standard and trigger message. | Retention may require conversion module. |
| USB/microphone | Factory socket protocol and bias. | Physical adapter may not retain data quality. |
| Vehicle settings | Menus hosted in original head unit. | Replacement plan must preserve access. |
Speaker impedance and power
Impedance is the frequency-dependent load presented to an amplifier. Connecting lower impedance than the amplifier supports increases current and heat. Factory premium systems can use unusual values and active crossovers.
Continuous RMS ratings are more useful than peak marketing figures, but frequency range and high-pass filtering matter. A door speaker asked to reproduce deep bass at high level reaches excursion limits quickly.
Speaker fit and door operation
Measure basket depth with the window fully lowered and through its travel. Adapter rings must seal front output from the rear wave and resist moisture. Preserve door membranes and drainage.
Route cable away from glass, regulator and lock. Do not drill where side-impact beams, airbags or wiring lie. Use grommets through metal.
Polarity and phase
When one speaker's polarity is reversed, its cone moves opposite others and bass cancels around the cabin. Factory wire colours are not universal. Verify through diagrams or safe polarity testing.
Time alignment and crossover phase are more complex than plus/minus polarity, but correct basic wiring is the foundation.
Amplifier power wiring
Choose cable from current, length, conductor material and acceptable voltage drop. Copper-clad aluminium has less conductivity than equivalent copper area. Ground cable should be short, equal in capability and attached to approved clean structure.

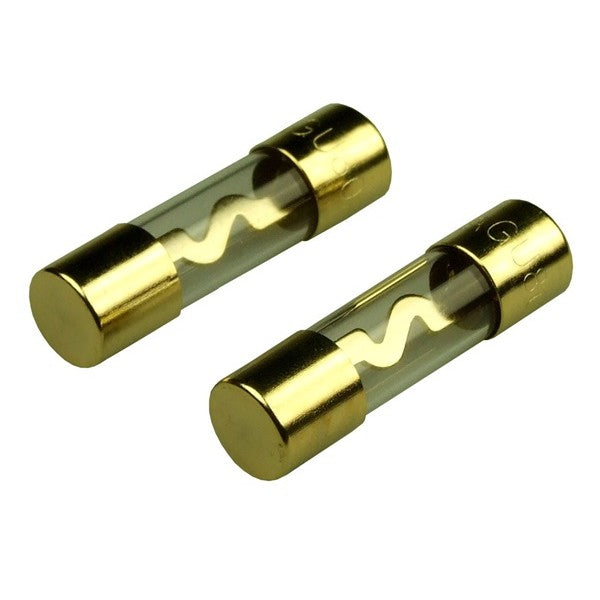

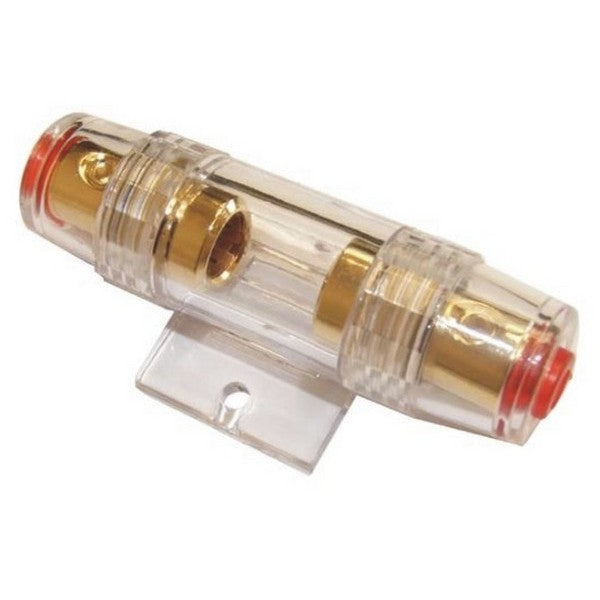

The source fuse protects the cable against a short and belongs close to the battery connection. It must not exceed the cable's safe capacity. Each downstream amplifier may have separate protection.
Battery, charging and smart management
Large audio loads can exceed alternator output at idle and discharge the battery. Measure charging behaviour under load before adding hardware. Modern battery sensors and smart alternators change voltage deliberately.
Do not bypass a battery-monitoring sensor with the ground connection. High-output charging modifications need vehicle-specific engineering, cable and protection review.
Signal interfaces and gain structure
Factory speaker signals may be equalised, time-aligned, balanced or load-detecting. A suitable converter must accept voltage and signal type without triggering faults. Summing channels can reconstruct bandwidth only when the interface is designed for it.
Set source to a known clean level, then adjust amplifier gain to reach required output before clipping. Gain is input sensitivity, not an extra volume control.
Noise and fault patterns
| Symptom | Possible cause | Diagnostic direction |
|---|---|---|
| Whine changes with engine speed | Ground loop, charging noise or signal routing. | Measure grounds and isolate signal path. |
| Pop at switch-on | Turn-on timing or DC transient. | Check remote output and interface sequence. |
| Amplifier enters protection | Low impedance, short, heat or low voltage. | Inspect load and supply under output. |
| Radio loses stations | Missing aerial phantom power or wrong adapter. | Check antenna amplifier supply. |
| Battery drains parked | Interface/amp stays awake. | Sleep-current and remote-turn-on diagnosis. |
| One side weak bass | Reversed speaker polarity or leak. | Verify polarity and mounting seal. |
| Vehicle warnings after install | Network, module or connector disturbed. | Scan all systems and restore architecture. |
Aerials, DAB and reception
Amplified factory aerials need phantom power through the coax or a separate feed. Diversity systems combine multiple elements. A simple one-to-one plug adapter may connect only part of the system.
DAB aerials require correct ground plane, glass position and routing away from interference. Heated screens and metallic tint affect reception.
Steering controls, cameras and chimes
Program the interface for exact vehicle and radio brand. Retained buttons can include phone, voice and display menus. Confirm airbag clockspring functions are not disturbed.
Factory cameras may use different video voltage and format. Warning chimes can be generated through the radio or amplifier; losing them is a safety regression.
Installation sequence
- Record factory audio, settings, codes and every integrated function.
- Identify vehicle, connector, amplifier, network, speakers and aerial.
- Plan current, cable, fuse, grounding, signal and accessory routing.
- Follow battery, airbag and retained-power procedures.
- Remove trim with non-marring tools and support the original unit.
- Bench-connect approved harness adapters without cutting vehicle wiring.
- Run power separately from low-level signals and protect every penetration.
- Mount speakers, amplifiers and interfaces against vibration and moisture.
- Fuse the source connection before energising.
- Test polarity, supply voltage, network and retained vehicle functions.
- Set gains and crossovers at safe clean levels.
- Secure harnesses, refit trim and perform a sleep-current check.
Common mistakes
- Choosing an adapter by plug shape without checking pin logic.
- Cutting factory wiring before confirming an interface exists.
- Using cable too small or fusing only at the amplifier.
- Grounding around paint, seat rails or battery sensor incorrectly.
- Running signal cable beside high-current power.
- Loading a factory amplifier with wrong speaker impedance.
- Using amplifier gain as a volume boost.
- Closing trim before cameras, chimes and battery sleep are tested.
Sound treatment and safe placement
Damping sheets reduce panel resonance; closed-cell foam decouples trim; absorbers manage cavity energy. Keep drains, airbags, latches, cables and service holes clear. Added weight must be securely bonded and heat-safe.
Do not cover side-impact sensors or pressure vents. Treat rattles at their actual contact point rather than filling the door indiscriminately.
UK legal and road-safety relevance
Equipment must not obstruct the driver's view, vehicle controls or required warning functions. Displays and devices should not distract, and audio level must not prevent awareness of emergency vehicles or hazards.
Unsafe wiring can cause fire and battery failure. Modifications can affect insurance. An MOT pass does not certify installation current capacity or retained chimes.
Practical car-audio-accessory FAQs
Q: Do I need a wiring harness adapter?
A: Usually, to retain the factory loom and translate correct power/control signals.
Q: What is a fascia adapter?
A: It mounts and visually integrates a replacement head unit in the dashboard.
Q: Why will the new radio not switch off?
A: It may need a CAN interface rather than a traditional ignition wire.
Q: Does speaker impedance matter?
A: Yes, too low a load can overheat or damage the amplifier.
Q: Where should an amplifier fuse be fitted?
A: Close to the battery source, sized to protect the power cable.
Q: Why is there engine-speed whine?
A: Ground, signal routing, interface or charging noise needs diagnosis.
Q: Can factory steering controls be retained?
A: Often with the exact vehicle interface and radio patch lead.
Q: Why is radio reception worse?
A: An amplified aerial may lack phantom power or diversity connection.
Q: Can I twist audio wires together?
A: No. Use proper crimps/connectors, insulation and strain relief.
Q: Is amplifier gain a volume control?
A: No, it matches input sensitivity and should be set before clipping.
Q: Can a factory camera be retained?
A: Often, but video format, voltage and trigger may need an interface.
Q: Why does the battery drain after installation?
A: An amplifier or interface may not enter sleep mode.
Q: Can audio modifications affect the MOT?
A: Indirectly if they obscure view/controls or disable required warnings and safety functions.
