An extractor converts access into a controlled load path
When a component cannot be gripped normally, an extractor creates purchase on a thread, edge, bore or drilled hole and reacts force against a stronger surrounding point. Success depends less on brute force than on alignment, contact area and knowing where the reaction load travels.
A tool that can generate enough force to remove a part can also crack the housing supporting it.
Different extractor families solve different interfaces
| Extractor | How it grips | Force source | Typical use |
|---|---|---|---|

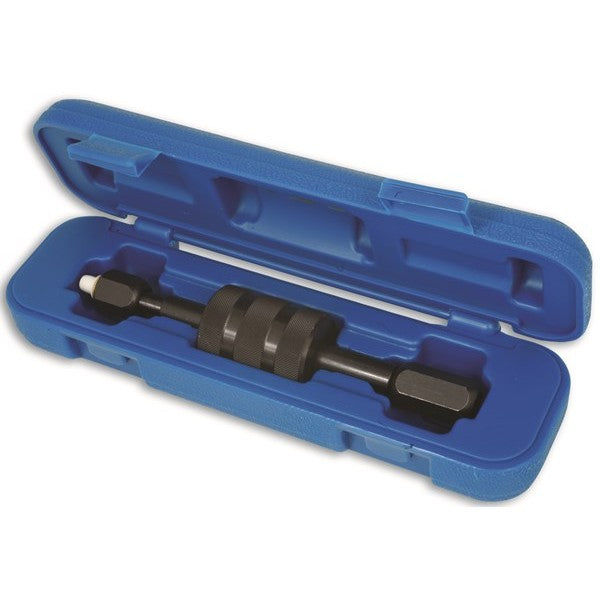

| Injector adaptor puller | Threads or clamps to injector body. | Slide hammer, bridge or ram. | Carbon-bound fuel injector. |
| External jaw puller | Hooks behind a rim or hub. | Central forcing screw. | Pulley, gear or bearing. |
| Internal collet | Expands behind an internal shoulder. | Bridge or slide hammer. | Bush or blind bearing. |
| Spiral screw extractor | Bites into a drilled pilot hole. | Hand turning torque. | Broken threaded fastener. |
| Straight-flute extractor | Wedges into prepared recess. | Hand turning torque. | Damaged screw or stud. |
| Hex/socket remover | Keys into rounded internal drive. | Ratchet or wrench. | Damaged hexagon socket. |
Axial force is safest when it stays concentric
A centred pull applies tension along the component axis. An offset jaw or angled slide hammer adds bending, causing a pulley to cock in its bore or an injector to load one side of its well. Alternating small corrections can help alignment, but random side impacts can fracture the part.
Use guide sleeves, bridges and all available attachment points to maintain the intended axis.
Reaction strength sets the real capacity
A puller's printed capacity does not mean a thin aluminium cover, pulley flange or injector solenoid housing can accept that load. Reaction legs should sit on specified reinforced areas and jaws should engage the hub rather than a fragile outer rim whenever possible.
If the surrounding structure begins to dish, mark or crack, stop and redesign the support before increasing force.
Selection begins with the obstruction and access
| Question | Evidence to collect | Tool consequence | Common error |
|---|---|---|---|
| What is retained? | Threads, circlips, keys, taper or corrosion. | Determines removal direction. | Pulling against an unseen retainer. |
| Where is strong purchase? | Hub, shoulder, thread or approved clamp. | Selects adaptor/jaw style. | Gripping a cosmetic flange. |
| What can take reaction? | Housing ribs and service tool points. | Defines bridge and support. | Loading a thin cover. |
| How much travel is needed? | Engagement length and release distance. | Sets screw, leg or hammer stroke. | Running out of thread under load. |
| What access exists? | Diameter, depth and surrounding parts. | Controls tool profile. | Choosing a tool that cannot align. |
| What hazard is present? | Fuel, spring force, heat or brittle fragments. | Sets isolation and containment. | Starting before depressurisation. |
Injector removal requires fuel-system preparation
Modern diesel and direct-petrol systems can retain hazardous pressure. Isolate and depressurise by the vehicle procedure, control spill, protect open connections and treat fuel as a fire and injection-injury risk. Remove wiring, pipes, leak-off fittings and the complete retaining clamp before applying extraction force.
Never loosen a high-pressure connection with the engine running to prove delivery or relieve pressure.
Carbon-bound injectors need patient preparation
Combustion leakage can pack hard carbon around an injector and corrode it into the bore. Remove accessible deposits without driving debris into the cylinder, apply only compatible approved chemistry and allow time to work. A dedicated adaptor should grip the strongest designed area.
Pulling through a plastic electrical top or fuel connection destroys the injector and may still leave the lower body seized.
Slide hammers create impact and recoil
A sliding mass delivers repeated axial impulses, useful where static force alone does not break adhesion. The tool also produces recoil and noise, and attachments can loosen between strokes. Keep the shaft aligned, check threaded connections frequently and use controlled full-hand grips away from pinch points.
Do not add mass, strike the stop with another hammer or use a damaged shaft.
Bridge pullers favour steady measurable force
A bridge spans a sound surface while a screw or hydraulic unit pulls the component. It offers fine control and keeps force more concentric than free hammering. Protect machined faces with specified reaction pieces and ensure bridge legs cannot slide as load rises.
A hydraulic gauge shows ram pressure, not necessarily safe component force unless piston area and setup limits are known.
Pulley pullers should load the hub
Thin stamped pulley edges bend readily. Place jaws behind reinforced hub features and protect the shaft centre with the correct tip. Remove retaining bolts, washers and keys identified by the procedure. On tapered fits, maintain controlled force while applying only approved release techniques.
Do not heat a bonded rubber damper, sealed bearing or fuel-contaminated area indiscriminately.
Broken-fastener extraction starts with accurate drilling
Flatten and centre-mark the fracture where possible, then drill square with a sharp correctly sized bit. A guide bush helps preserve the parent thread. Left-hand drilling can sometimes rotate the remnant out before an extractor is needed.
Drilling off-centre removes parent material and leaves the extractor loaded against one wall, making breakage more likely.
Hard extractors are strong but brittle
Spiral and straight extractors must be hard enough to bite, which limits their tolerance of bending and shock. If one snaps in the hole, conventional drilling becomes much harder. Use a hand tap wrench where specified and apply steady axial turning rather than an impact wrench.
Stop if the extractor twists visibly, the pilot hole crumbles or required torque rises without fastener movement.
Heat and penetrant have boundaries
Penetrant can reach corrosion but is not a substitute for removing mechanical locks. Local heat may expand a housing or soften threadlocker, yet it can damage seals, tempering, paint and electronics or ignite residues. Cooling can also create condensation and thermal shock.
Use only a component-approved temperature method with fire controls and temperature monitoring where required.
Preparation removes all opposing retainers
| Observation | Likely issue | Stop check | Safer response |
|---|---|---|---|
| Force rises immediately | Retainer remains or pull direction wrong. | Bolts, clips, staking and taper. | Review service information. |
| Part tilts | Unequal grip or off-axis reaction. | Jaw depth and bridge level. | Unload and realign. |
| Jaw marks spread | Contact surface is yielding. | Hub strength and jaw profile. | Use different purchase. |
| Forcing screw tightens roughly | Dry/damaged thread or overload. | Screw, nut and lubrication. | Replace damaged tool parts. |
| Extractor begins to wind up | Fastener torque exceeds safe tool load. | Pilot size and seizure cause. | Stop before brittle fracture. |
| Crack or sharp sound | Component/tool failure beginning. | Maintain exclusion zone. | Unload remotely if possible. |
Stored energy demands an exclusion line
A forcing screw, hydraulic ram and stretched attachment all store elastic energy. Stand to the side, use guarding or containment where practical and keep other people clear. Eye protection is the minimum; task assessment may require face, hand, hearing and body protection.
Never lean over the centreline to inspect a loaded connection closely.
Tool threads need the correct lubricant
Forcing-screw threads experience high contact pressure. Clean them and use only the manufacturer-specified lubricant so torque produces predictable axial force. Grease on a thread that must be dry can increase load beyond the rated value at the same torque.
Reject galled, stretched, cracked or mushroomed screws; dressing visible damage does not restore their strength.
Controlled loading reveals useful feedback
Take up slack by hand
Confirm every jaw, adaptor and reaction point is seated before applying working force.
Increase force in small stages
Watch alignment and component condition between stages rather than pulling continuously blind.
Unload before adjustment
Never reposition a jaw or bridge leg while stored force remains in the system.
After removal, preserve the opening
Catch the component so it cannot fall into a cylinder, housing or onto the operator. Account for keys, clips, extractor tips and drilled swarf. Plug exposed oil and fuel paths with clean approved covers, then inspect the bore, thread, seal land and reaction surfaces.
Extraction marks can reveal whether misalignment or corrosion caused the original seizure.
Repair decisions follow accurate inspection
Chase or repair threads only within permitted dimensions, clean injector seats with controlled tooling and measure pulley shafts for scoring or distortion. A successful removal is not a complete repair if a cracked casting, stretched thread or damaged seal surface remains.
Correct water entry, combustion leakage, wrong torque or galvanic corrosion so the replacement will be serviceable later.
Practical extractor FAQs
Q: Is one extractor set suitable for every job?
A: No. Grip, reaction, travel and force method must suit the component.
Q: Can a puller grip a thin pulley rim?
A: Use reinforced hub features specified for pulling; thin rims can bend.
Q: Why must a screw-extractor hole be centred?
A: It preserves parent threads and loads the extractor evenly.
Q: May an impact wrench turn a spiral extractor?
A: Normally no; brittle extractors need controlled hand torque.
Q: Can I add a tube to a puller handle?
A: No. Unrated leverage can overload tool and component.
Q: What must happen before injector extraction?
A: Depressurise fuel safely and remove every electrical, pipe and retaining connection.
Q: Is hydraulic pressure the same as pull force?
A: Not without ram area and setup data; obey the complete tool rating.
Q: Can heat always free a seized part?
A: No. Materials, seals, fuel and electronics may prohibit it.
Q: Why lubricate a forcing screw?
A: The specified lubricant reduces galling and makes load more predictable.
Q: What if the part starts to tilt?
A: Fully unload, correct grip and reaction alignment, then reassess.
Q: Can a cracked extractor be reused carefully?
A: No. Remove it from service immediately.
Q: What completes extraction work?
A: All fragments recovered, parent features inspected and the seizure cause corrected.
