Measuring

Workshop measuring tools turn wear, alignment, torque, pressure, temperature and electrical behaviour into evidence. Common equipment includes rules, callipers, micrometers, bore gauges, feeler gauges, dial indicators, torque wrenches, pressure gauges, multimeters and infrared thermometers. Each measures a different quantity and has limits that cannot be overcome by extra display digits.

Select by measurand, expected range, required resolution and uncertainty, access, environment and applicable vehicle specification. Confirm unit system, jaw or probe type, calibration status, temperature range, electrical category and fluid/material compatibility. A digital instrument may be easier to read, but it is not automatically more accurate than a sound analogue tool.

Clean the part and contact faces, allow temperature to stabilise, zero or reference the instrument and use a consistent measuring force. Measure at several positions to reveal taper, ovality, run-out or intermittent behaviour. Record the conditions, units and tool used; a single unexplained number is weak diagnostic evidence.

Use the right safety class. A general multimeter or lead may be unsuitable for high-energy circuits or hybrid/EV voltage, and a tyre gauge is not a fuel-pressure gauge. Depressurise fluid systems before changing adapters, keep probes clear of moving parts and never place hands near a rotating component to “steady” a gauge.

Protect instruments from impact, swarf, magnetic fields, solvents and extreme heat; store torque wrenches and gauges as instructed. Check against traceable standards at appropriate intervals and after overload or a drop. For intermittent faults, choose logging equipment fast enough to capture the event without sacrificing input safety. Keep reference blocks, rings and electrical standards clean and reserved for verification rather than workshop handling. Do not adjust a component to compensate for an instrument that fails verification. Compare results with exact service data and include measurement uncertainty when the value is near a limit. Workshop measuring tools and diagnostic instruments are listed below.

Your Current Vehicle

Select Your Vehicle

Measurement converts an observation into a defensible decision

A result combines the true quantity, instrument behaviour, setup and operator technique. Resolution is the smallest displayed step; accuracy describes closeness to truth; repeatability shows whether the method gives the same result again.

Choose uncertainty comfortably smaller than the tolerance being assessed. A 0.1 mm calliper cannot reliably decide a clearance separated by hundredths.

Tool families and uses

Tool	Measures	Typical task	Main limitation
Calliper	External, internal and depth dimensions.	General part identification.	Jaw alignment and modest fine accuracy.
Micrometer	Precise external/internal dimension by type.	Journal, shim or disc thickness.	Narrow range and measuring force.
Bore gauge	Comparative internal diameter.	Cylinder or bearing-bore taper/ovality.	Needs reference setting and rocking technique.
Dial indicator	Small displacement.	Run-out, end float and lift.	Mount rigidity and contact angle.
Feeler gauge	Gap by known blade thickness.	Valve or plug clearance.	Drag judgement and curved surfaces.
Pressure/electrical tool	Dynamic system variable.	Fuel, oil, compression or circuit diagnosis.	Safety rating and connection method.

Start from the specification

Range and tolerance determine the instrument

Find the exact vehicle, component and test-condition specification before choosing equipment. “Normal” may depend on oil temperature, engine speed, battery state, load or measurement location.

Use consistent units and avoid repeated rounding between metric and imperial values. Record the original unit from service data.

Selection checklist

Question	What to establish	Why it matters
Quantity?	Length, pressure, torque, voltage or temperature.	Prevents proxy measurement.
Range?	Minimum, typical and possible fault maximum.	Avoids overload and poor low-end resolution.
Tolerance?	Decision limits and needed uncertainty.	Ensures result can distinguish pass/fail.
Access?	Contact geometry, hose length and viewing.	Limits cosine/parallax/setup error.
Environment?	Heat, fluid, vibration and electrical energy.	Protects tool and operator.
Calibration?	Status, reference and due date.	Provides confidence and traceability.
Dynamic or static?	Logging speed and peak/average need.	Captures intermittent behaviour.

Cleanliness and temperature

A hair, burr, oil film or rust flake can exceed a precision tolerance. Clean without rounding edges and inspect contact faces. Do not measure across raised damage.

Metal expands with heat. Allow the part and tool to reach the stated reference temperature or apply an approved correction. Holding a small micrometer frame continuously can warm it.

Callipers

Close gently, verify zero, keep jaws square and use the full clean contact faces. Do not rock until the largest reading is found without considering whether measuring an external or internal feature.

Callipers are valuable for identification and broad checks, but a micrometer or bore gauge is more appropriate for close bearing clearances.

Micrometers

Choose a range that brackets the dimension, check against its standard and use the ratchet or friction thimble for consistent force. Measure a journal at several axial positions and around its circumference.

Do not clamp the spindle hard or use the instrument as a workholding tool. Lock only after the correct contact is established.

Bore gauges and internal measurement

Set a comparative bore gauge using a micrometer or setting ring, insert squarely and rock through the bore; the minimum indicator reading commonly represents alignment across the diameter. Follow the exact gauge method.

Measure at prescribed heights and directions. This maps taper and ovality rather than hiding them in an average.

Dial indicators and run-out

Error source	Effect	Control
Flexible magnetic stand	Movement appears as part run-out.	Mount on rigid clean surface.
Angled contact	Cosine error reduces reading.	Align plunger with displacement.
Dirty mounting face	Disc/hub appears distorted.	Clean and torque assembly correctly.
Bearing play	Changes reading during rotation.	Assess bearing and apply stated preload.
Too little preload	Contact loses the surface.	Set mid-travel preload.
Reading one revolution	May miss repeatability issue.	Repeat and mark high point.

Feeler gauges

Use clean undamaged blades and combine only as permitted. Pull through the gap with the specified light drag while surfaces are in their correct position and temperature. A blade spanning pits or curved contacts can mislead.

Do not force a thick blade that scratches a soft shim or seal face.

Torque measurement

A torque wrench applies rotational input; it does not directly measure bolt tension. Thread condition, lubrication and seat friction must match the procedure. Use a wrench whose working range places the target away from unreliable extremes.

Pull smoothly at the handle centre and stop at the first signal. Do not use a click wrench as a breaker bar or repeatedly click “to be sure”.

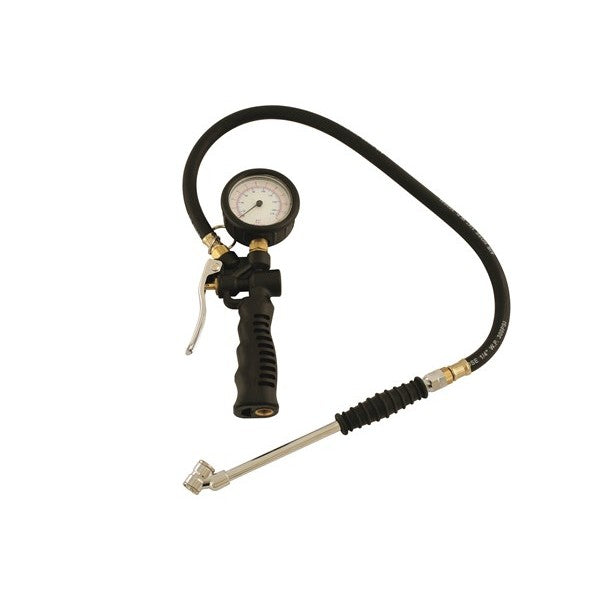

Pressure and vacuum measurement

Match gauge range, fluid compatibility, pulse damping and adapters. A petrol-pressure hose must retain fuel safely; an oil gauge needs temperature capability; a cooling-system tester must not exceed cap/system pressure.

Depressurise before disconnecting and capture fluid. Route hoses away from belts and exhaust and never bring a fuel gauge into the passenger compartment.

Electrical measurement safety

Measurement	Connection	Key hazard
Voltage	Meter in parallel.	Wrong category/range or probe short.
Current	Series meter or current clamp.	Placing fused current input across supply.
Resistance	Power off and circuit isolated.	Applying ohmmeter to live circuit.
Voltage drop	Across connection under load.	Moving machinery and unfused B+.
Oscilloscope	Correct probe and ground strategy.	Grounding floating/high-voltage circuits.
Hybrid/EV	Rated equipment and trained procedure.	Lethal voltage and arc energy.

Temperature tools

Contact probes measure their contact point when properly coupled. Infrared thermometers infer surface temperature from radiation and depend on emissivity, spot size and line of sight. Shiny metal can reflect surrounding heat and give a false result.

Thermal cameras reveal patterns but do not see through covers. Confirm important findings with a suitable contact method.

Calibration, verification and traceability

Calibration compares an instrument with a standard and documents error; adjustment changes it. A calibration sticker alone does not prove the tool survived a later drop or overload.

Perform pre-use checks against standards, keep certificates and define intervals by use, risk and history. Quarantine a suspect tool and review work completed since its last known-good check.

Recording results

Record vehicle/component identity, exact location, units, temperature/load, instrument ID, calibration status and repeated readings. For electrical waveforms, save scale and time base.

Do not transcribe only the value that supports an expected diagnosis. Outliers should be repeated and explained.

Decision near a limit

Situation	Response
Result far inside limit	Confirm setup and record normally.
Result close to limit	Use lower-uncertainty method and repeat.
Readings scatter	Find setup, temperature, part or instrument variation.
Tool fails zero/reference	Stop, quarantine and verify/calibrate.
Specification unclear	Obtain exact service data; do not average internet figures.
Safety-critical decision	Document method and use competent review.

Storage and maintenance

Release measuring faces, clean gently and store in dry cases. Protect gauges from pressure spikes and drain compatible test fluids. Return adjustable torque wrenches to the maker's storage setting, not below it.

Remove batteries for long storage where instructed and inspect test leads for exposed conductors.

Common mistakes

Frequent errors include confusing resolution with accuracy, measuring hot parts against cold limits, using callipers for bearing clearance, guessing units, reading a dial at an angle, applying resistance mode to a live circuit and using the wrong pressure hose.

Do not “zero out” a real fixture or component error without understanding it.

UK workshop and roadworthiness responsibilities

Measuring equipment used for work decisions should be suitable, maintained and used by competent people. Safety-critical brake, wheel, steering and pressure results need appropriate traceability.

An MOT result is not a calibration certificate for a repair. Verify component dimensions and torques against their own technical limits.

Practical measuring-tool FAQs

Q: Does more display digits mean more accuracy?
A: No. Resolution, calibration and method are separate.

Q: Can callipers replace a micrometer?
A: Not for many close-tolerance dimensions.

Q: Why measure at several positions?
A: To reveal taper, ovality, run-out and variation.

Q: Must parts cool before measurement?
A: Use the specification's temperature or an approved correction.

Q: Can a torque wrench loosen bolts?
A: Not unless designed for that use; use a breaker bar.

Q: Is tyre pressure gauge suitable for fuel?
A: No. Range, materials and safety differ.

Q: Can resistance be measured on a live circuit?
A: No. Isolate power and stored energy first.

Q: Why verify zero?
A: Dirt, damage or drift can offset every result.

Q: Does an infrared thermometer measure through covers?
A: No. It reads the visible surface within its spot.

Q: What happens after a tool is dropped?
A: Quarantine and verify it before further decisions.

Q: Is one reading enough near a limit?
A: No. Repeat with suitable lower uncertainty.

Q: Why record the instrument identity?
A: It links the result to calibration and later review.

Q: Can generic online limits be used?
A: No. Use exact vehicle/component service data.
