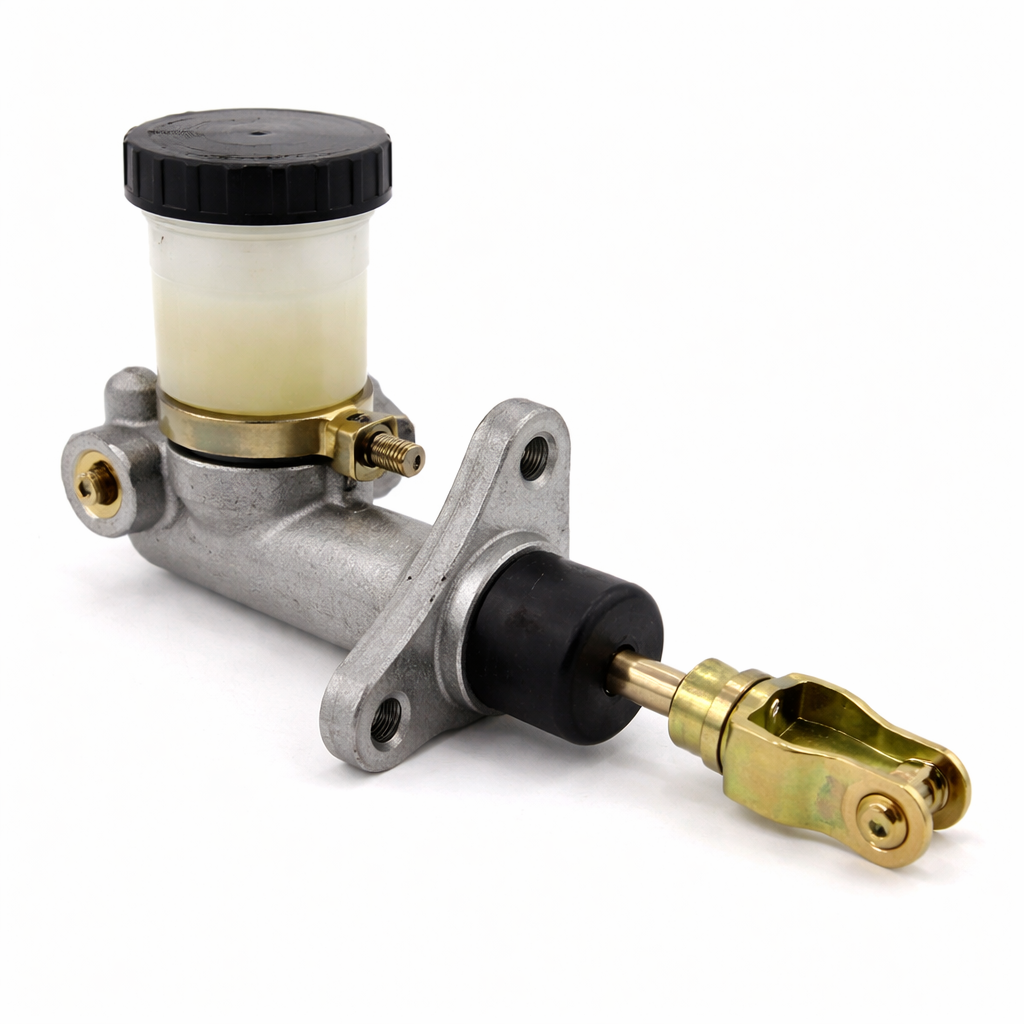

The master cylinder controls hydraulic volume as well as pressure
Pedal leverage moves a small piston. Early travel closes the reservoir compensation port; further travel displaces fluid down the line. The slave converts that volume into release movement against clutch-spring force.
A different bore alters volume and pedal effort. Dimensional fit alone cannot establish correct operation.
Hydraulic layouts
| Layout | Reservoir | Release actuator | Service concern |
|---|---|---|---|
| Separate master and external slave | Dedicated or shared. | Slave pushes clutch fork. | Fork travel and both cylinder leaks. |
| Master with concentric slave | Often shared with brakes. | Bearing/slave surrounds input shaft. | Gearbox removal for internal leakage. |
| Integrated reservoir master | Mounted on cylinder. | External or concentric slave. | Access, cap vent and fluid level. |
| Remote-fed master | Hose from brake reservoir. | Various. | Feed-hose deterioration and shared-fluid risk. |
| Sensor-equipped master | Either arrangement. | Hydraulic release plus electronic input. | Start interlock, cruise and adaptation. |
Piston and seal operation
Primary and secondary seals separate pressure, supply and atmosphere. At rest, a compensation path allows thermal expansion and replenishes fluid. A swollen seal or misadjusted pushrod can cover that port and retain pressure.
Worn seals can let fluid bypass internally from high- to low-pressure side, making the pedal sink without an external drip.
Pedal ratio and pushrod
Small changes at the clevis become significant piston travel
The pedal pivot and attachment point set leverage. Incorrect clevis length can leave excessive free play or prevent full piston return. Some rods are factory-set and must not be adjusted.
Inspect pivot bushes, bracket cracks and retaining clips. Lost pedal travel cannot be corrected by bleeding.
Fluid specification
Many clutch systems use glycol brake fluid such as a vehicle-specified DOT class; some use mineral or other hydraulic fluid. These are not interchangeable. The reservoir cap and service data govern.
Glycol fluid absorbs moisture and attacks paint. Mineral fluid can destroy seals designed for glycol. Use sealed fresh fluid and dedicated clean equipment.
Shared brake reservoirs
The clutch feed is often above the brake outlets so a clutch leak does not immediately drain all brake fluid. This safety feature does not make fluid loss acceptable.
Keep the reservoir above the stated level during bleeding. If air may have entered brake circuits, follow the complete brake-bleeding and safety procedure.
Quick connectors and pipes
Plastic and metal lines can use clip-retained couplings with internal seals. A connector must sit to full depth before its new retaining clip locks. Side load or an old swollen O-ring causes leaks.
Do not clamp a hydraulic hose with locking pliers or repair a formed pipe with ordinary fuel hose.
Part identification
Use VIN, transmission, steering side and build split. Compare bore, flange angle, pushrod length, clevis pin, feed port, pressure outlet and sensor. Check pedal-box revisions.
Determine whether a replacement arrives dry, prefilled or with a transport plug. Follow its handling method and do not depress the piston without fluid when prohibited.
Symptoms and source separation
| Symptom | Master possibility | Alternative cause | Evidence |
|---|---|---|---|
| Pedal slowly sinks | Internal seal bypass. | External line/slave leak. | Hold test while inspecting complete circuit. |
| Spongy pedal | Air drawn past master seal. | Air elsewhere, flexible hose or poor bleed. | Bleed output and hose expansion. |
| Pedal stays down | Sticking piston or blocked compensation. | Pedal spring, slave, fork or pressure plate. | Disconnect/isolate only by prescribed test. |
| Hard selection when hot | Reduced master displacement. | Clutch drag, warped plate or gearbox issue. | Slave travel cold versus hot. |
| Fluid at pedal | Rear master seal leak. | Shared reservoir/hose spill tracking. | Inspect pushrod boot and bulkhead. |
| Vehicle creeps with pedal down | Pressure/volume not maintained. | Release bearing, fork or clutch pack fault. | Hydraulic travel and clutch release test. |
Initial inspection
Check reservoir level and fluid colour without introducing dirt. Inspect inside the cabin around pushrod and carpet, the bulkhead, every pipe joint and the slave area. Concentric-slave leakage may emerge from the bellhousing.
Look for pedal bracket flex while an assistant presses the pedal with the vehicle secured.
Pedal and free-play assessment
Measure rest height, free movement, full stroke and return. Listen for pivot creak and feel for roughness. A floor mat or trim can limit travel.
Use model data; some hydraulic clutches have no external free-play adjustment.
Hydraulic hold tests
Apply steady pedal force and observe whether it sinks. Inspect for leakage simultaneously. Line clamps are permitted only if the manufacturer specifies a tool and safe location; many braided or plastic lines must never be clamped.
Do not plug outlets with improvised bolts that damage seats or create trapped high pressure.
Slave travel
Measure external slave or fork movement through the approved method. Concentric systems may provide diagnostic travel data or require gearbox inspection. Compare against pedal stroke.
Adequate hydraulic travel with persistent drag directs diagnosis toward clutch or mechanical release parts.
Contaminated fluid
Dark particles can be seal wear; petroleum contamination swells glycol-system rubber. If wrong fluid entered a shared reservoir, the brake system can also be compromised.
Do not simply flush and hope. Follow the vehicle manufacturer's contamination replacement plan for all affected rubber components.
Removal
Protect paint and cabin trim, remove fluid cleanly and cap open lines. Release sensor, feed and outlet connectors by their locks. Support the pedal and retain clevis washers/clips in order.
Avoid spilling into the servo, wiring or carpet. Dispose of fluid through the authorised route.
Bench preparation
Some masters require slow bench bleeding with tubes returning to a reservoir; others must remain sealed and be filled in the vehicle. Use the component-specific instruction.
Never use a screwdriver to drive the piston rapidly to its stop. Over-stroking can cut seals on an unused bore edge.
Installation controls
| Stage | Required control | Failure prevented |
|---|---|---|
| Identity | Bore, rod, ports, steering side and sensor match. | Wrong travel and pedal geometry. |
| Pedal mechanism | Bracket, bushes, spring and clevis serviceable. | Lost stroke and side-loaded piston. |
| Fluid | Exact specification from sealed container. | Seal damage and brake contamination. |
| Connections | Fresh seals, square threads and full clip engagement. | Leak or pipe release. |
| Bleeding | Specified method, pressure limit and stroke. | Trapped air and damaged seals. |
| Adjustment | Only approved rod/free-play setting used. | Blocked compensation and clutch drag. |
| Verification | Travel, hold, bite, release and brakes confirmed. | Unsafe loss of control. |
Bleeding methods
Gravity bleeding uses fluid head; manual bleeding coordinates pedal and nipple; pressure bleeding feeds the reservoir; vacuum bleeding draws at the slave. Each system favours a method and pressure range.
Keep the reservoir filled, use a clear hose and close the nipple before pedal release where instructed. Air can cling in a high loop or concentric bearing and require a special sequence.
Persistent air
Check loose bleeder threads, an inverted master angle, porous hose, connector seals and reservoir feed. Vacuum tools can draw air around nipple threads that looks like system air.
Allow foam to settle and use slow strokes. Rapid pumping can aerate fluid.
Sensors and adaptations
A clutch-position sensor can control starting, cruise cancellation, stop-start and engine torque. Transfer or initialise it without altering rod geometry. Check live data at rest and full stroke.
Complete bite-point or clutch adaptation where a managed transmission requires it, but do not use adaptation to mask hydraulic loss.
Post-repair verification
Hold pressure, inspect every joint and ensure the pedal returns repeatedly. Select reverse and first with the engine running in a secured clear area; there should be no creep with the pedal fully down.
Road-test progressively, checking clean engagement, no slip and safe brake feel. Reinspect fluid level and connections afterwards.
Safety and urgency
Loss of clutch release can prevent safe gear selection or leave the vehicle moving unexpectedly. A shared-reservoir fluid loss can threaten brake operation if ignored.
Do not drive with a pedal that remains down, active hydraulic leakage, uncertain brake fluid level or vehicle creep in gear. Recover for repair.
Common mistakes
- Replacing the master without inspecting a leaking concentric slave.
- Using the wrong hydraulic fluid in a shared reservoir.
- Clamping a plastic or braided line with pliers.
- Adjusting a factory-set pushrod to hide clutch wear.
- Cross-threading or incompletely locking a quick connector.
- Over-stroking a dry cylinder during bench bleeding.
- Letting reservoir level fall and admitting air to brake circuits.
- Road-testing before proving no creep and safe brake feel.
Practical clutch-master-cylinder FAQs
Q: Can a master cylinder fail without leaking outside?
A: Yes; internal seal bypass can make the pedal sink.
Q: Does a spongy pedal always mean the master?
A: No; trapped air, hose expansion and slave faults also matter.
Q: Can brake fluid and mineral fluid be mixed?
A: No; use only the vehicle's exact hydraulic specification.
Q: Why is the clutch feed high in the brake reservoir?
A: It helps preserve brake fluid if the clutch circuit leaks.
Q: Should the pushrod be adjusted?
A: Only where the manufacturer provides a setting procedure.
Q: Can any hose be clamped during diagnosis?
A: No; clamp only an approved line with the specified tool.
Q: Why does air return after bleeding?
A: Check seals, feed hose, joints and the bleeding setup.
Q: Must the cylinder be bench bled?
A: Follow its procedure; some require it and others do not.
Q: What suggests a concentric slave leak?
A: Fluid from the bellhousing with falling level and lost release.
Q: Can pedal travel prove clutch release?
A: Measure slave/fork travel and confirm no vehicle creep.
Q: Does dark fluid require diagnosis?
A: Yes; assess moisture, seal wear and wrong-fluid contamination.
Q: Can the car be driven with a sinking pedal?
A: No; hydraulic control can be lost unpredictably.
Q: What confirms a correct repair?
A: Stable pedal, full release, dry circuit and safe brake operation.
