BLUE PRINT Car Parts

Blue Print parts in this range

Blue Print is known for replacement parts for Asian vehicle makes and now also presents all-makes programmes in filtration, braking and clutch. The collection here reflects both aspects. It does not stop at the three core programmes: the recorded products also cover drivetrain, suspension, electrical and service functions. This mixed scope is useful for repair work, but it means there is no single compatibility rule across the page.

The most numerous family is brake hoses, followed by clutch kits. Air filters, wheel-speed sensors, anti-roll-bar mountings and handbrake cables also feature strongly. Glow plugs, discs, fuel filters, driveshaft gaiter kits, clutch hydraulics, propshaft joints, cabin filters and brake pads form further substantial groups. Each family needs its own checks.

Asian specialism and all-makes coverage

Blue Print's official material describes the brand as an exact-fit specialist for Asian makes. Its broader current offer identifies filtration, braking and clutch as extended all-makes ranges for Asian and European vehicles, including light commercial vehicles. Those statements describe the manufacturer's overall programmes, not a promise that every reference on this page is universal. Vehicle application remains specific to each article.

This distinction helps with older assumptions about the name. A Blue Print reference beginning with one regional-looking prefix should still be checked against the current application information. Prefix recognition, the appearance of the old part or a broad vehicle description cannot replace a complete lookup, particularly where one model was built with several engines or brake systems.

Braking parts: hoses, cables and friction components

A flexible brake hose carries hydraulic pressure while accommodating steering and suspension movement. Correct overall length is essential, but so are unions, thread, support brackets and routing. A hose that is too short can be pulled at full lock or suspension travel; one that is too long can rub a wheel or chassis part. Do not twist the hose during installation, and confirm clearance throughout the available movement before returning the vehicle to service.

Handbrake cables are especially sensitive to side and routing. Evidence in this range includes left-rear and right-rear paired articles with different lengths. Some entries differ by only a few millimetres; others are substantially longer. Select from the vehicle application and paired reference, then compare end fittings, outer-cable supports and adjuster arrangement. After fitting, set the mechanism by the manufacturer's procedure and verify that both wheels release fully.

Brake discs and pads must match axle and brake system. Blue Print's braking information explains the thermal role of a disc and identifies mass, thickness and material specification as important. For an individual repair, compare diameter, thickness, height, centre bore, hole pattern and solid or vented construction. Check pad outline, thickness, caliper type and wear-warning provision. Renew friction components as axle sets and investigate uneven wear rather than hiding it with new parts.

Clutch kits and hydraulic release parts

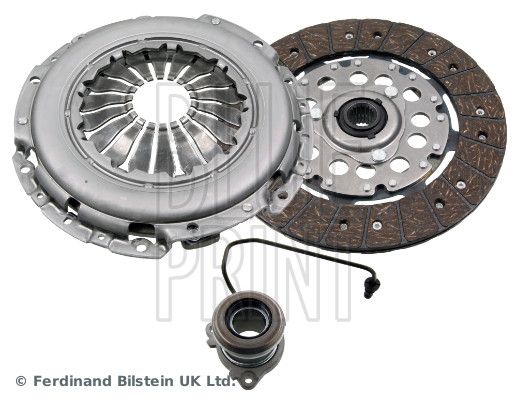

A clutch kit may contain a driven plate and pressure plate, and some references also include a release bearing or other components. The title 'clutch kit' does not establish identical contents across the range. Read the bill of materials for the exact reference. Establish whether the vehicle uses a solid flywheel or dual-mass flywheel, a conventional external release bearing and fork, or a concentric slave cylinder around the gearbox input shaft.

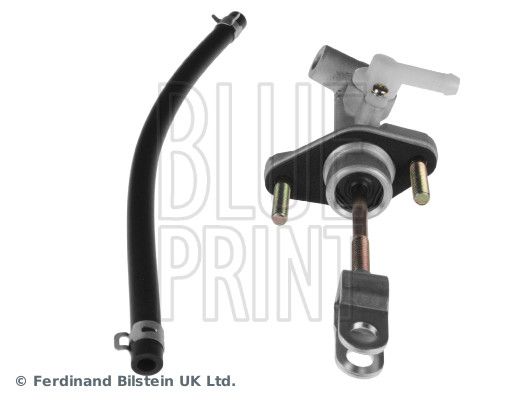

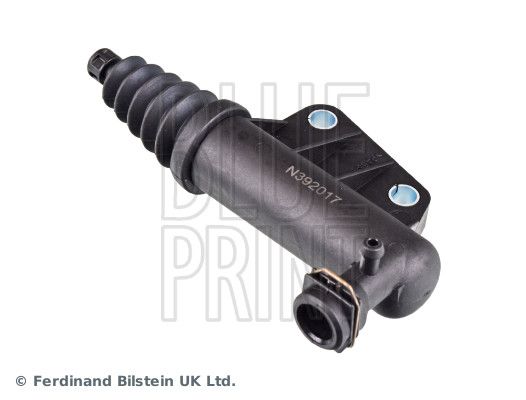

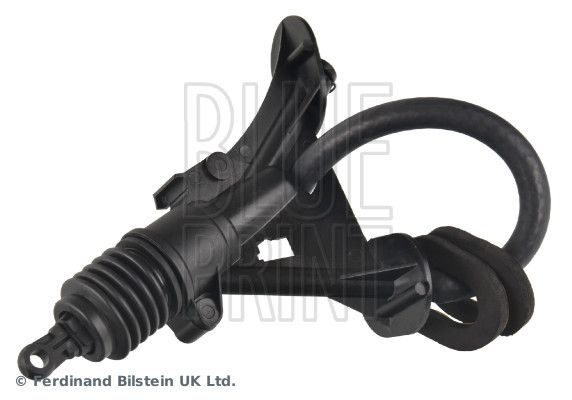

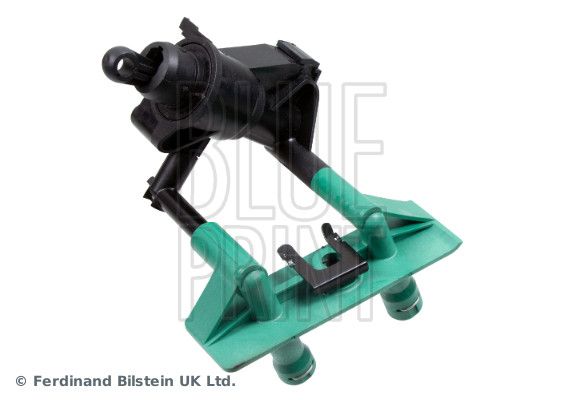

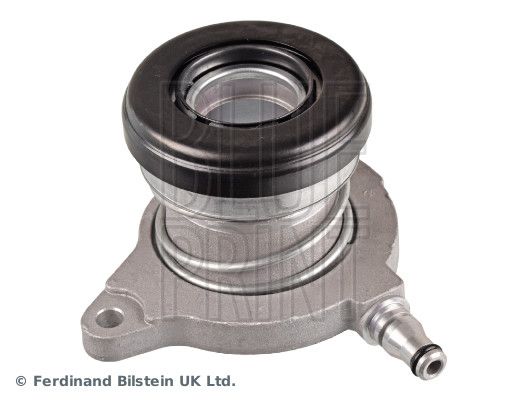

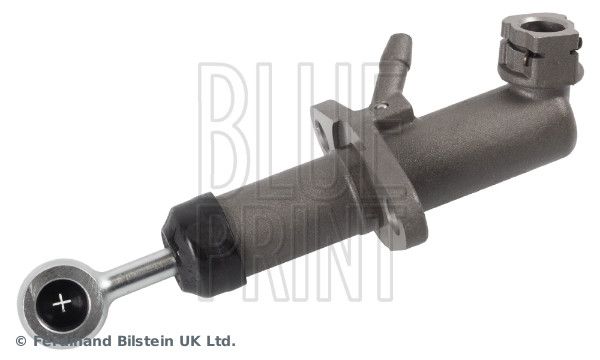

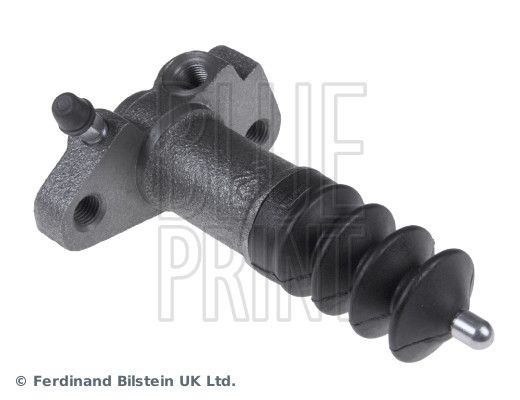

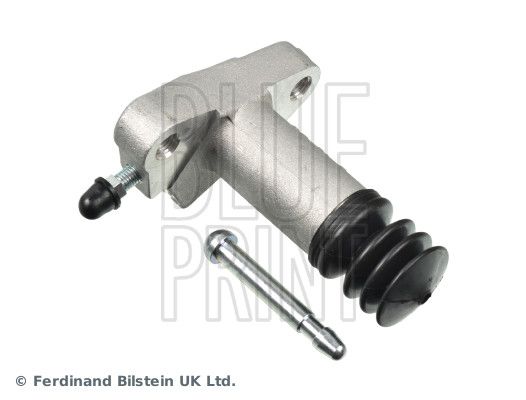

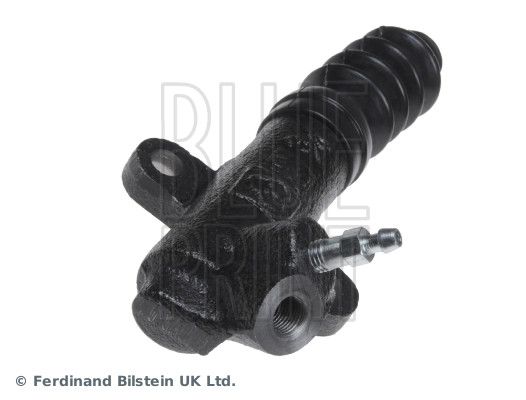

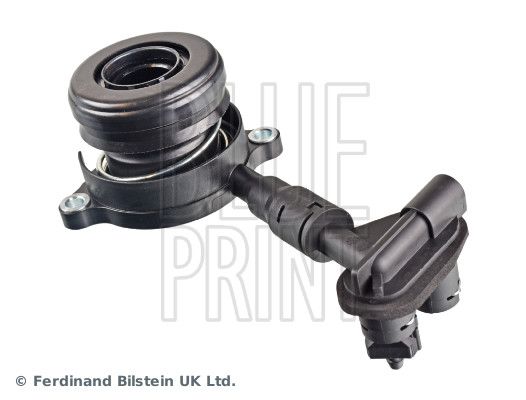

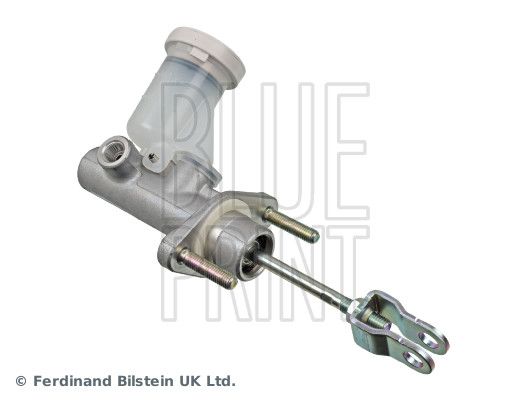

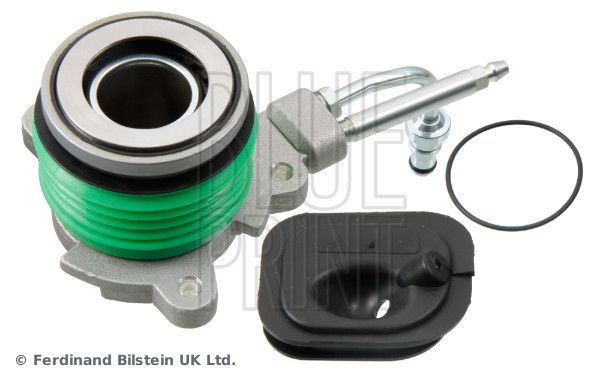

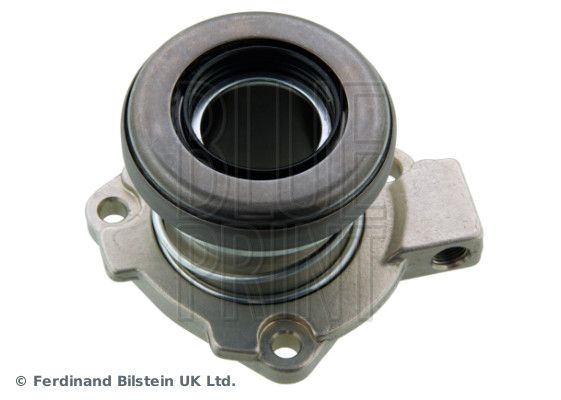

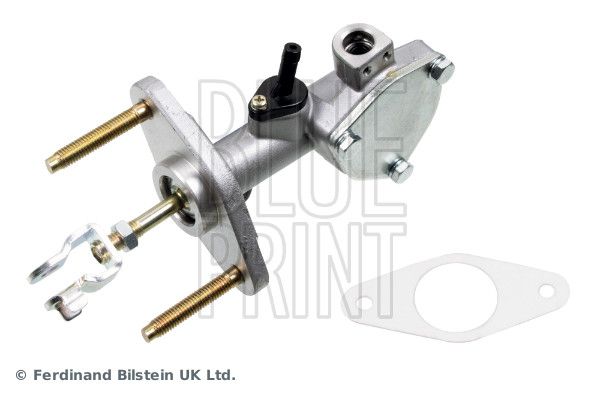

A central slave cylinder combines hydraulic actuation and release-bearing functions in the bellhousing. Because gearbox removal is normally required to access it, its condition and compatibility deserve attention during clutch replacement. Conventional master and slave cylinders also differ in bore, stroke, ports and connection style. Use only the hydraulic fluid and bleeding method specified for the vehicle; random pressure or improvised fluid can damage seals.

Before installation, diagnose the complaint. Slip, drag, judder, noise and a low or inconsistent pedal can have different causes. Check for oil contamination, crankshaft or gearbox seal leakage, worn linkage, hydraulic loss, flywheel damage and input-shaft problems. A new clutch cannot correct an unresolved leak or a damaged mounting surface.

Filtration and service selection

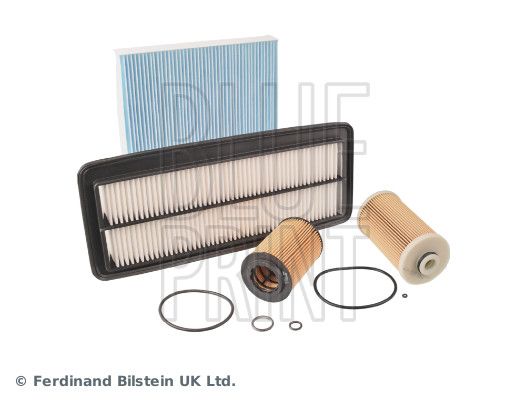

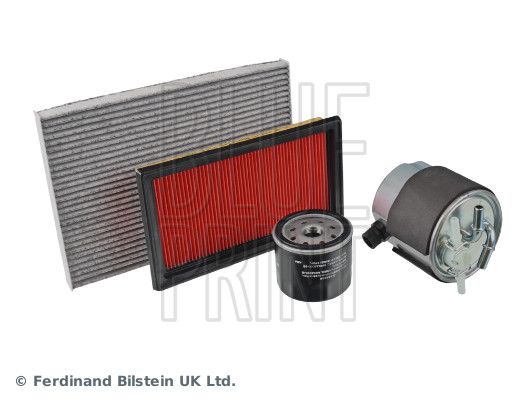

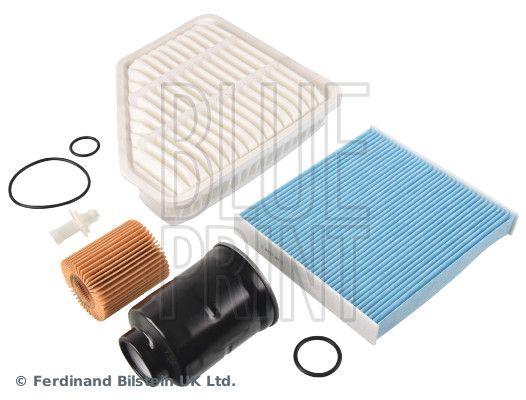

The Blue Print filter products evidenced here include air, fuel, cabin and oil filters. Their functions should not be conflated. The engine air filter removes contaminants from intake air; the oil filter controls particles in circulating lubricant; the fuel filter protects the fuel system; and the cabin filter treats air entering the passenger compartment. Service intervals and replacement methods are vehicle-specific.

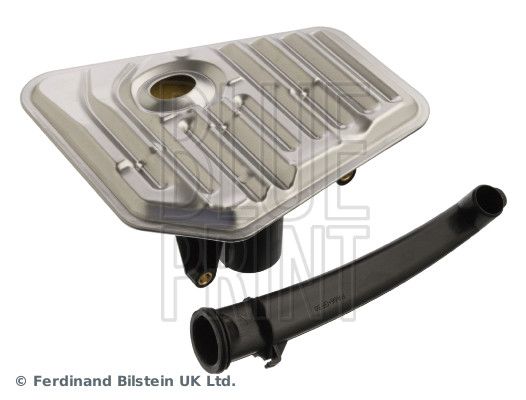

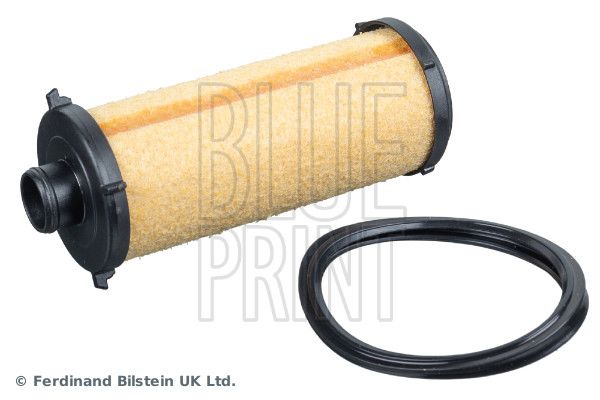

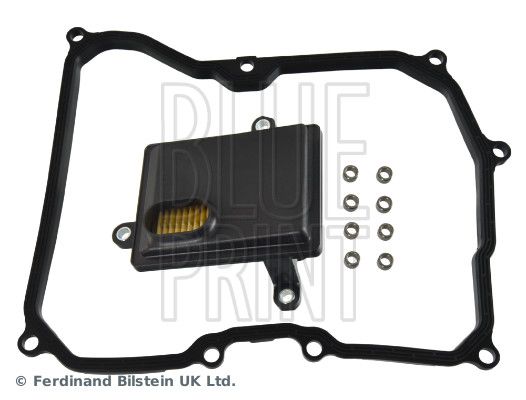

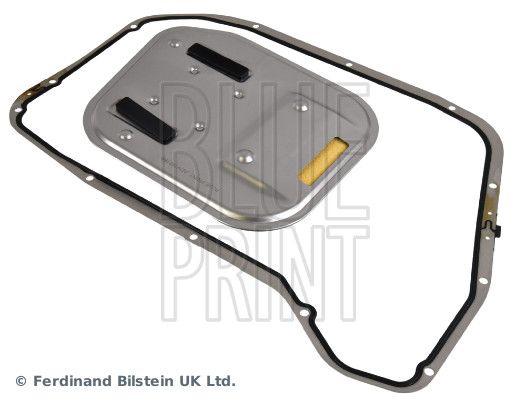

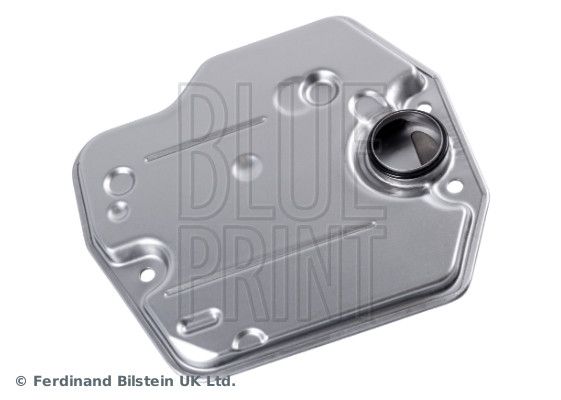

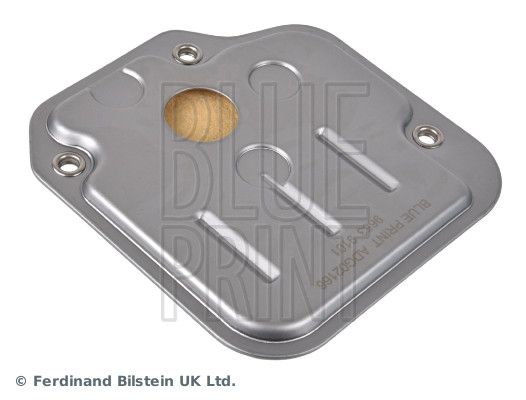

Blue Print's filtration material describes different media and design features according to product. It notes anti-drain-back valves on applicable spin-on oil filters and vehicle-specific transmission filtration elsewhere in its wider programme. Do not assign those features to a particular filter unless its own specification says so. For a filter in this collection, use the reference, dimensions, housing shape and included seals as the deciding data.

Sensors, suspension and drivetrain products

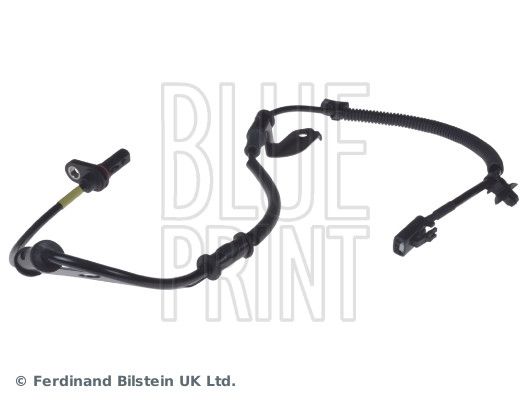

A wheel-speed sensor supplies rotational information used by ABS and often stability or traction functions. Match the connector, cable length, mounting form and target arrangement. Inspect the wiring route and reluctor or magnetic encoder where applicable; a replacement sensor will not cure a damaged encoder, contaminated mounting face or wiring fault elsewhere.

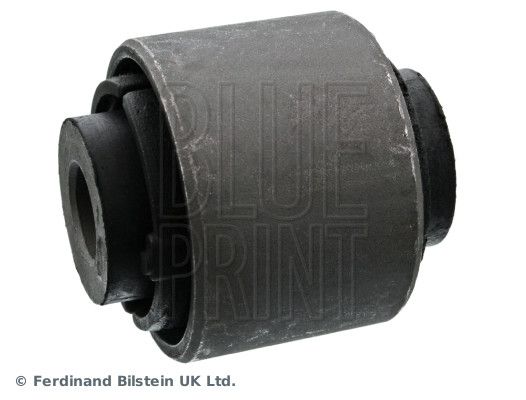

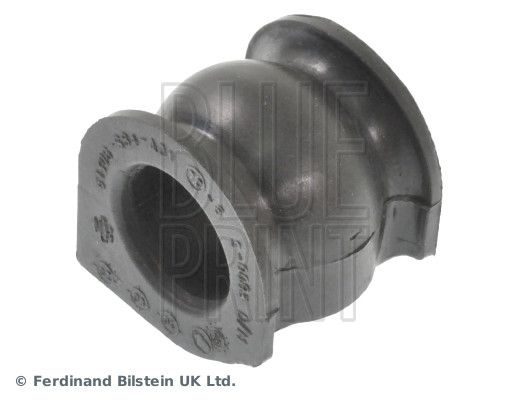

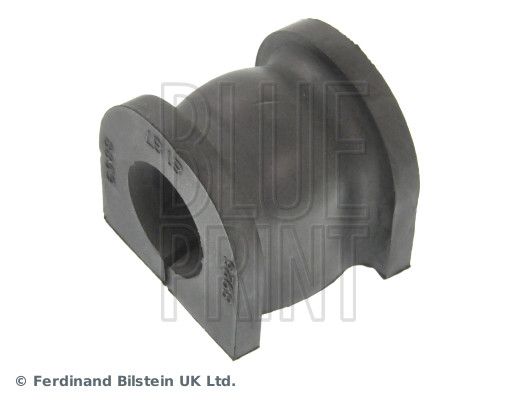

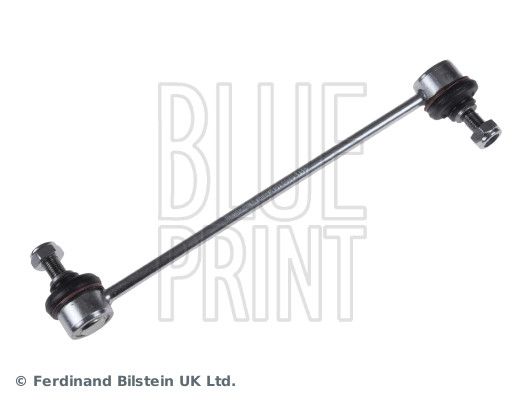

Anti-roll-bar mountings are dimension-sensitive rubber or elastomer supports. Similar-looking bushes may have different internal diameters or bracket profiles, and suspension specification can vary by axle load or sports package. With driveshaft gaiters, dimensions, joint type and clamp arrangement matter. A split or detached gaiter can allow lubricant out and contamination in, so the joint should be assessed rather than automatically covered with a new boot.

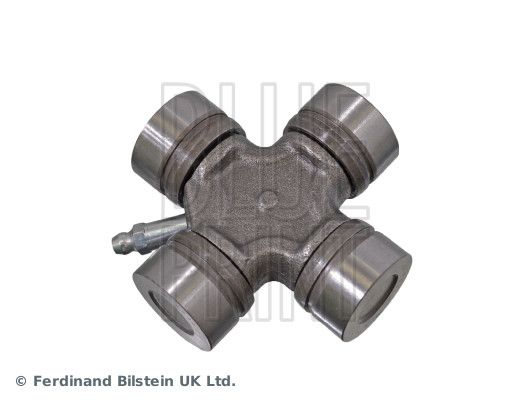

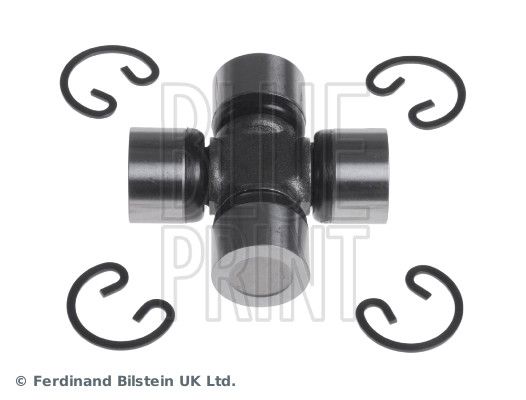

Propshaft universal joints require correct bearing-cap diameter, span and retention. Mark shaft alignment before dismantling where the procedure requires it, preserve balance relationships and inspect adjacent support bearings. Driveline work that is incorrectly aligned can introduce vibration even when the new joint itself is the right size.

A reliable selection workflow

1. Identify the vehicle from registration and VIN-level details where available.
2. Record model generation, build date, engine code, gearbox and driven axle.
3. Choose the product family, then note axle position and side.
4. Resolve production splits, chassis breaks and optional equipment.
5. Compare dimensions, connectors and old-part markings without relying on them alone.
6. Read the exact kit contents and identify any separately required seals, bolts or paired item.
7. Use the vehicle repair information for installation, torque, fluid and calibration requirements.

A photo can assist comparison, but perspective makes dimensions unreliable and two components can share a housing while containing different internals. Likewise, a model year on a registration document may not equal the component change date. When the lookup presents alternatives, investigate the distinguishing criterion rather than choosing the closest-looking item.

Inspection, replacement and UK roadworthiness

Inspect safety-related systems as a whole. A damaged hose, seized caliper, corroded disc and faulty wheel-speed signal may interact in a braking complaint. The Great Britain MOT manual covers hydraulic components, flexible hoses, parking brakes, discs, pads, ABS and braking efficiency. A current certificate does not certify that a part will remain serviceable until the next test.

Clutch wear itself is not assessed like service-brake performance, but a vehicle must still be controllable and safe on the road. Filters and glow plugs are maintenance or engine components rather than automatic MOT replacement items; however, engine faults can contribute to emissions problems or an illuminated malfunction indicator lamp. Diagnose faults rather than replacing whichever part name appears closest to a stored code.

Frequently asked questions

Q: Is Blue Print only for Japanese and Korean vehicles?

A: No. Asian applications are a stated specialism, while the official filtration, braking and clutch programmes also include broader Asian and European car and light-commercial coverage.

Q: Does every product here belong to the three core programmes?

A: No. The evidenced range also contains suspension, drivetrain, electrical and other service parts.

Q: Can two handbrake cables from the same model have different lengths?

A: Yes. Side, body, brake design and production variation can alter cable length and fittings. Several records here identify paired left- and right-rear references.

Q: Is a clutch kit always complete with a release bearing?

A: Contents differ. Check the exact product specification for pressure plate, driven plate, bearing, cylinder, bolts or other included items.

Q: Should a concentric slave cylinder be considered during clutch work?

A: Its location often requires gearbox removal, so it should be inspected and the repair plan based on condition and manufacturer guidance.

Q: Can a wheel-speed sensor fault be diagnosed from the warning lamp alone?

A: No. Wiring, connectors, supply, wheel-bearing encoder or reluctor condition and control-unit data may all need testing.

Q: Are left and right brake hoses interchangeable?

A: Only where the application explicitly uses the same reference. Brackets, bends and routing can make visually similar hoses side-specific.

Q: Can I reuse an old filter seal?

A: Use the replacement seal supplied or specified for the service and follow the housing procedure. Reusing a compressed seal can cause leakage.

Q: Does a cabin filter affect engine performance?

A: It filters ventilation air for the occupants, whereas the engine air filter serves the intake. They have different housings and service tasks.

Q: Is matching a bush by colour reliable?

A: No. Measure and confirm the application, position, internal diameter and bracket arrangement.

Q: Why should a driveshaft joint be checked when its gaiter splits?

A: Lost grease and admitted water or grit can damage the joint. A boot alone is insufficient if wear or corrosion has already developed.

Q: What is the safest response to an unresolved production split?

A: Obtain the VIN, production code or old-part number specified by the application information and resolve the split before dismantling.
