The slave cylinder turns pedal fluid displacement into clutch release travel
The master piston moves a measured volume of hydraulic fluid. Because fluid is nearly incompressible, that volume displaces the slave piston. Bore ratio determines force and travel: changing either cylinder specification changes pedal effort and release movement.
The system must return freely as the pedal rises. Compensation at the master reservoir restores pressure and accommodates thermal expansion and clutch wear.
Slave-cylinder arrangements
| Arrangement | Location | Output | Service focus |
|---|---|---|---|

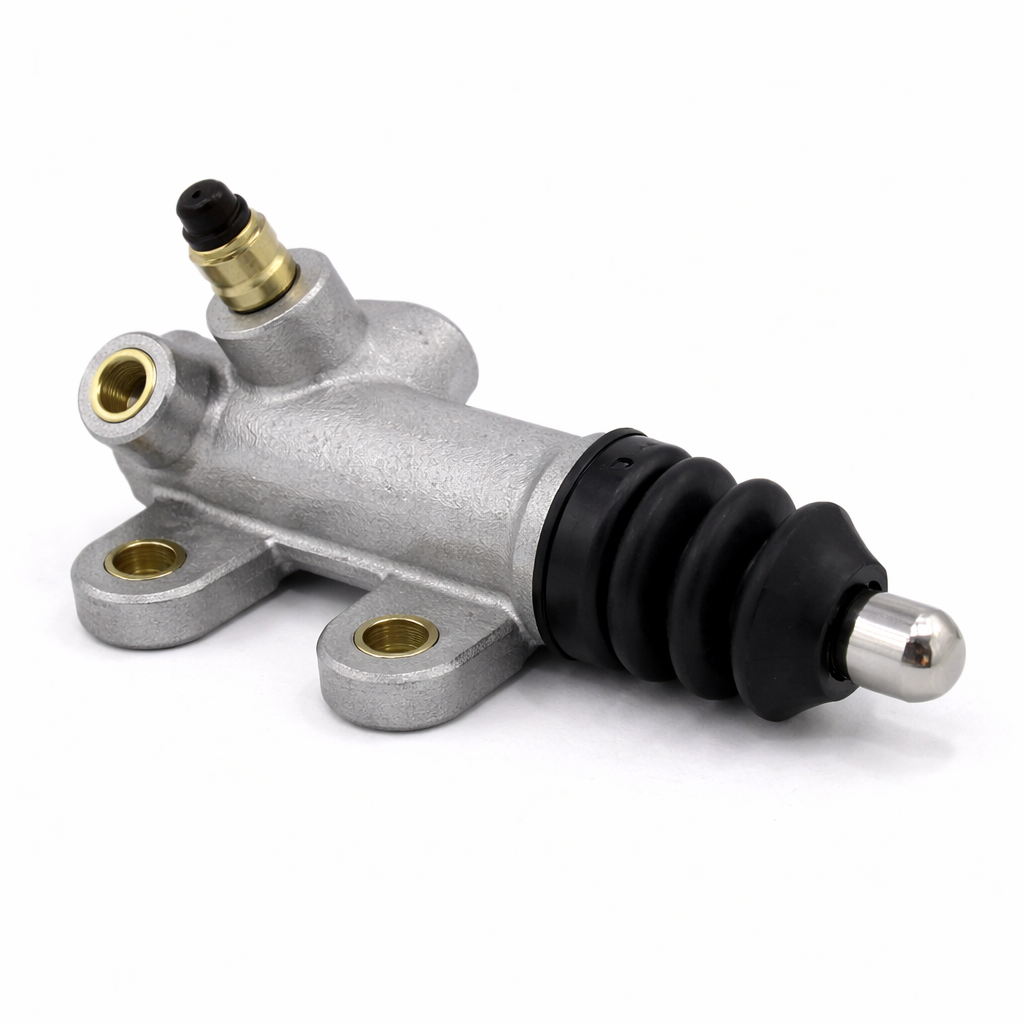

| External pushrod slave | Outside bellhousing. | Pushes clutch fork. | Rod seating, boot, mounting and fork condition. |
| External pull-type slave | Bellhousing exterior. | Pulls a lever or release mechanism. | Correct cable/rod geometry and orientation. |
| Concentric slave cylinder | Around gearbox input shaft. | Bearing face acts directly on diaphragm. | Installed height, pipe sealing and gearbox removal. |
| Slave with damper | External or pipe-integrated assembly. | Controls pressure pulse and engagement feel. | Exact calibrated unit, not bypassed pipework. |
| Shared reservoir system | Clutch feed branches from brake reservoir. | Supplies master cylinder. | Fluid level and cross-system cleanliness. |
Hydraulic force and bore size
A larger slave bore increases force but reduces travel for the same fluid volume
The original master and slave sizes balance pedal effort, clutch clamp load and release distance. Installing a similar-looking cylinder with a different bore can create incomplete disengagement or excessive bearing travel.
Pushrod length and mounting position also set geometry. Adjustable rods must use the specified free play; extending one to hide wear can block compensation and keep the release bearing loaded.
Seals, bore and dust boot
Internal cup seals hold pressure against a smooth bore. Corrosion, contamination or wear lets fluid bypass or escape. The outer boot excludes grit but is not the pressure seal; fluid found beneath it usually indicates internal leakage.
A torn boot accelerates damage even before wetness appears. Replace a cylinder outside bore, piston or seal limits rather than polishing away dimensional control.
Concentric slave cylinders
A concentric design shortens the release path and removes fork pivots, but leakage occurs inside the bellhousing. Fluid can contaminate the clutch disc and may not form an obvious external puddle until substantial loss.
Installed height between gearbox face, cylinder and clutch fingers is critical. Use only specified spacers and guide-tube components. Pulling the bearing outward by hand can separate seals or move it beyond its working range.
Fluid specification
Many clutch hydraulics use brake fluid from a shared reservoir, but some use mineral or application-specific fluid. Select by formal vehicle specification, not colour. Petroleum contamination in a brake-fluid system can swell seals throughout it.
Use fresh fluid from a sealed container and clean the cap area before opening. Fluid absorbs moisture, strips paint and must not be returned after bleeding.
Part identification
Use VIN, gearbox code, clutch diameter and build date. For external units, compare bolt centres, port thread, connector, bleed-nipple location, body angle and pushrod. For concentric units, check mounting flange, bearing face, compressed/installed height and pipe routing.
Confirm kit contents: seals, retaining clip, fasteners, adapter, pipe or bleed tube may be separate. A replacement clutch kit can require a revised concentric cylinder, so cross-check the complete matched assembly.
Symptoms and differential diagnosis
| Symptom | Slave possibility | Other cause | Useful evidence |
|---|---|---|---|
| Pedal sinks or stays low | External leak, seal bypass or piston sticking. | Master bypass, pedal linkage or return spring. | Inspect fluid movement and isolate by procedure. |
| Difficult first/reverse selection | Insufficient slave stroke or trapped air. | Clutch distortion, pilot bearing or gearbox linkage. | Measure release travel and clutch drag. |
| Fluid at external boot | Slave pressure seal failure. | Fluid running down from pipe connection. | Clean and observe under pedal pressure. |
| Fluid from bellhousing | Concentric slave leakage. | Engine oil or gearbox oil seal. | Identify fluid type and inspect after removal. |
| Pedal improves when pumped | Air or seal bypass possible. | Master, hose expansion or clutch mechanism. | Check leaks, bleeding and pressure retention. |
| Release noise | Concentric bearing or misalignment. | Clutch fingers, pilot bearing or gearbox input bearing. | Correlate noise with pedal position and inspect components. |
Inspect the complete hydraulic path
Start at the reservoir and follow feed to master, pressure pipe, hose, connector and slave. Look for dampness, swollen hose, corrosion, rubbed pipe and loose support. Check pedal pivot and master pushrod alignment.
A flexible hose can expand internally or act as a one-way restriction. A quick connector can admit air if its seal is damaged. Replace verified faults rather than tightening plastic connections beyond specification.
Master-cylinder alternatives
A master can bypass internally, producing a slowly falling pedal with no external loss. It can also fail to uncover its compensation port if pedal free play or linkage is wrong, causing pressure to remain in the slave.
Follow the diagnostic isolation method; clamping a hydraulic hose with ordinary pliers can damage it. Compare master output and slave movement using safe approved equipment.
Release mechanism inspection
An external slave cannot compensate for a seized fork pivot, cracked fork, worn contact pad or collapsed release bearing. Check movement and alignment. Excessive resistance overloads seals and mounting ears.
For a concentric unit, inspect clutch diaphragm fingers, input-shaft splines and any guide tube. Uneven finger height or wrong clutch stack can force the bearing beyond its intended travel.
Safe external-cylinder removal
Protect paint and collect fluid. Clean around the port, release pressure and cap lines. Support any return spring or lever so it cannot move unexpectedly. Never press the clutch pedal while the slave is unbolted.
Check pushrod seating and retain its orientation. Inspect bellhousing threads and fork cup. A rod left off-centre can puncture the boot or escape when first operated.
Concentric-cylinder access
Transmission removal requires vehicle support, powertrain support and control of driveshafts, selector, wiring and hydraulic lines. Follow the full gearbox procedure, using a transmission jack and observing high-voltage or all-wheel-drive requirements.
Once exposed, assess clutch contamination and renew affected friction components. Fluid-soaked lining cannot be reliably cleaned. Inspect rear engine and gearbox input seals to distinguish leakage sources.
Installation controls
| Stage | Required control | Failure prevented |
|---|---|---|
| Application | Exact bore, stroke, port, height and clutch pairing. | Drag or over-travel. |
| Cleanliness | Ports and fittings free of dirt; fresh approved fluid. | Seal scoring and contamination. |
| Mounting | Body seats squarely; fasteners tightened evenly. | Cracked flange and piston side load. |
| Pipe connection | New seal/clip, aligned pipe and positive lock. | Leak and air entry. |
| Release interface | Rod, fork or bearing face correctly located. | Escaped pushrod and uneven clutch load. |
| Bleeding | Specified method, nipple orientation and reservoir maintained. | Retained air and seal inversion. |
| Travel proof | Pedal and release movement stay within limits. | Clutch drag or bearing over-extension. |
Bleeding strategy
Air rises and can remain trapped in loops or concentric feed pipes. Position the vehicle and bleed nipple as specified. Use gravity, slow pedal strokes, pressure, vacuum or reverse bleeding only where approved.
Never exceed pressure limits or operate the pedal rapidly to force bubbles. Keep the reservoir above its feed port, close the nipple before pedal release where applicable and check for foam caused by a loose bleeder thread.
Pedal operation after bleeding
Initial pedal movement should be slow and controlled. Confirm the slave is restrained and the clutch assembled before full strokes. Rapidly pumping an empty concentric unit can damage seals.
Check bite point, return and free play. A high or low engagement point alone does not prove a hydraulic fault because clutch design and wear influence it.
Post-repair verification
Hold steady pedal pressure and inspect every joint. Confirm the pedal does not creep, the reservoir remains stable and the clutch disengages without gear clash. Check external slave travel against data.
Road-test through repeated starts and hot operation, monitoring engagement, release noise and shift quality. Reinspect for fluid at the bellhousing or connections after cool-down.
Common mistakes
- Replacing the slave without checking master, hose and release mechanism.
- Matching by mounting holes while overlooking bore, stroke or installed height.
- Operating the pedal with an unrestrained slave and ejecting its piston.
- Pulling a concentric bearing outward or compressing it contrary to instructions.
- Using the wrong fluid or returning bled fluid to the reservoir.
- Cleaning and reusing a clutch disc contaminated by hydraulic fluid.
- Forcing a quick connector or reusing its damaged seal and retaining clip.
- Bleeding rapidly without maintaining level or following the air-path procedure.
Safety and operating urgency
Hydraulic failure can prevent the clutch disengaging, causing unexpected creep, difficult control and inability to select gear. Fluid leakage from a shared reservoir may also threaten brake supply depending on design and level.
Do not drive with rapid fluid loss, an unreliable pedal, severe clutch drag or gear engagement that moves the vehicle unexpectedly. Secure and recover it for diagnosis, especially when the reservoir serves the braking system.
Practical clutch-slave-cylinder FAQs
Q: Is every slave cylinder outside the gearbox?
A: No; concentric units sit around the input shaft inside the bellhousing.
Q: Does fluid under an external boot indicate failure?
A: It usually shows leakage past the pressure seal.
Q: Can the clutch pedal be pressed with the slave removed?
A: No; the unrestrained piston may be ejected.
Q: Why does pumping improve the pedal?
A: Air or seal bypass may be present, but diagnose the whole system.
Q: Can contaminated clutch lining be cleaned?
A: Replace affected friction parts and repair the leak.
Q: Does bore size matter?
A: Yes; it changes force and travel for a given master displacement.
Q: May any brake fluid be used?
A: Use the exact hydraulic-fluid specification for the vehicle.
Q: Should a concentric slave be pre-compressed?
A: Handle and prime it only as its instructions state.
Q: Why inspect the clutch fork?
A: Binding or wear can overload a sound hydraulic cylinder.
Q: Can a quick connector clip be reused?
A: Renew seals and retainers where the procedure requires it.
Q: Why is reverse gear difficult?
A: Incomplete clutch release can keep the gearbox input turning.
Q: Must the gearbox come out for every slave?
A: Only internal concentric designs normally require that access.
Q: What confirms successful repair?
A: Stable pedal, full release, smooth engagement and no fluid loss.
