The flex section decouples two moving systems
The engine rotates slightly on its mounts as torque changes, while the exhaust is supported along the body and moves with road inputs and heat. A flex pipe absorbs limited axial, lateral and angular displacement so those forces do not crack the manifold, turbo or rigid tubes.
It is not a universal hinge. Every bellows has movement and fatigue limits, and installation preload consumes part of that capacity before the engine starts.

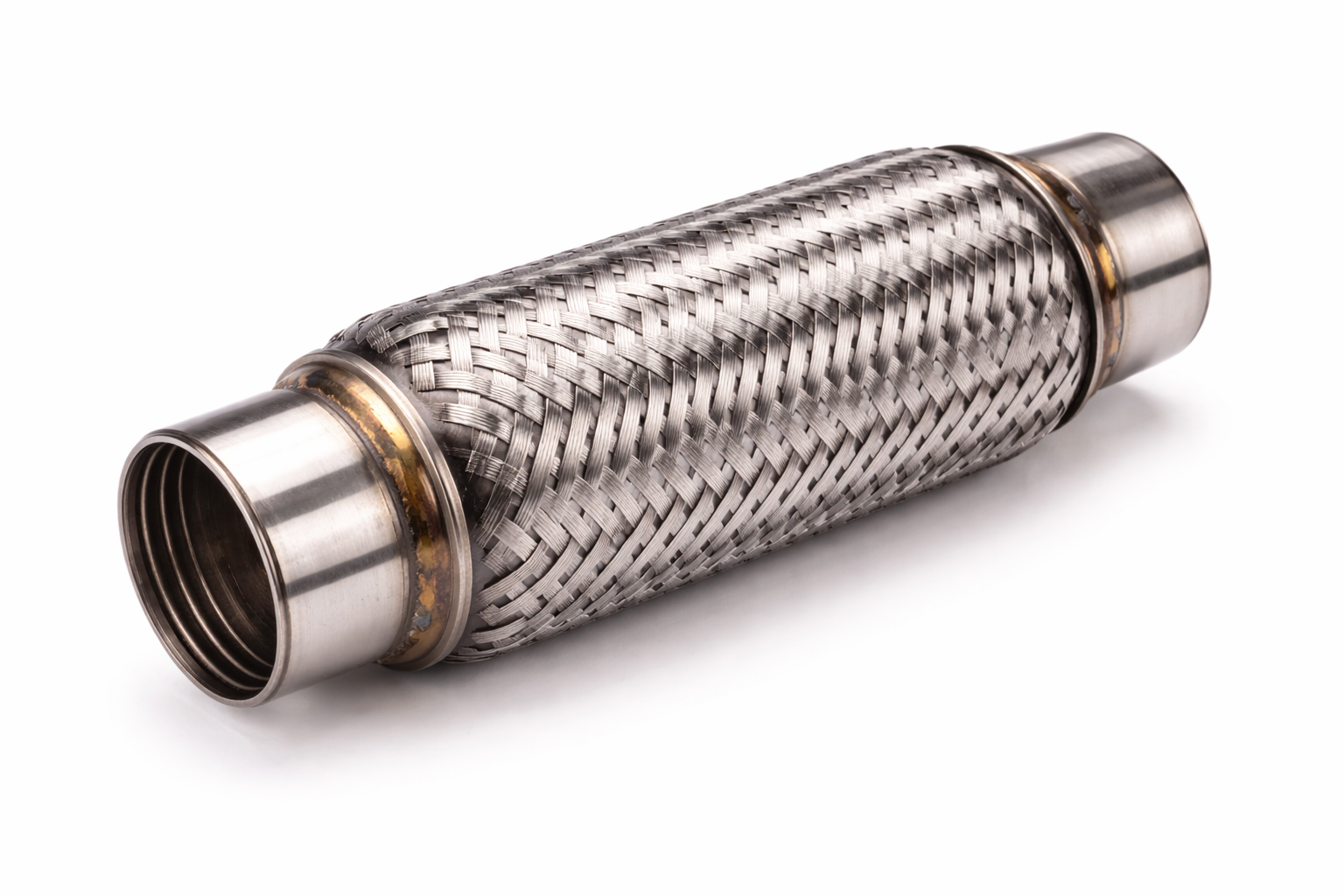

Construction and flow path
| Feature | Function | Variation | Service significance |
|---|---|---|---|
| Bellows | Provides gas-tight flexibility. | Layer count, pitch and formed profile. | Never clamp or weld on convolutions. |
| Outer braid | Protects and restrains bellows movement. | Wire density and stainless grade. | Fraying can expose the pressure layer. |
| Inner braid | Smooths flow and supports bellows internally. | Woven liner. | May fray or whistle if damaged. |
| Interlock liner | Creates a smoother, robust inner path. | Directional overlapping strip. | Orientation may follow gas flow. |
| Collars/ends | Provide rigid joining surfaces. | Plain pipe, flange or formed coupling. | Use these for welding or clamping. |
| End caps | Join braid and bellows to collars. | Crimped or welded. | Cracks often begin beside this heat-affected area. |
Movement direction determines design
Length alone does not define flexibility
A longitudinal engine may produce different downpipe movement from a transverse engine. Some flex sections mainly absorb axial movement; others need angular articulation. Short, large-diameter bellows can be much stiffer than a longer part.
Use the original geometry or engineering data. Installing a conveniently sized universal section can transfer stress to the next weld.
Identification and measurement
| Measurement | How to assess | Mismatch result |
|---|---|---|
| Pipe outside diameter | Clean and measure round sound tube in two axes. | Poor weld fit or clamp seal. |
| Overall length | Measure between defined collar ends unloaded. | Pre-compression or stretch. |
| Flexible length | Measure active bellows/braid section. | Insufficient movement capacity. |
| Body diameter | Check maximum outer braid/cap diameter. | Contact with tunnel or shield. |
| End type | Plain, stepped, flanged or direct-fit bends. | Unsafe improvised transition. |
| Liner | Unlined, inner braid or interlock. | Noise, heat and flow differences. |
| Material/temperature | Match application and upstream position. | Oxidation or premature fatigue. |
Typical failure mechanisms
Heat cycling work-hardens bellows material, while salt attacks exposed surfaces. If the exhaust hangs from the flex pipe, every bump adds bending. Engine-mount collapse can stretch one side and compress the other repeatedly.
A poor replacement weld creates a hard heat-affected edge next to flexible material. Incorrect alignment or twisting during welding locks in stress and causes rapid cracking.
Symptoms and immediate risks
| Symptom | Possible flex fault | Other cause | Urgency |
|---|---|---|---|
| Rasp under acceleration | Bellows split opens with torque. | Manifold, joint or heat-shield leak. | High. |
| Soot at braid | Inner bellows is perforated. | Soot blown from an upstream leak. | Prompt. |
| Cabin fumes | Front exhaust leak enters ventilation. | Other joint or body-path fault. | Immediate. |
| Vibration in body | Flex seized, too short or preloaded. | Mount, misfire, wheel or exhaust contact. | High. |
| Frayed outer braid | Overmovement or external damage. | Superficial wear with intact bellows. | Inspect soon. |
| Repeat weld crack | Wrong section or installation stress. | Unsupported pipe or excessive engine movement. | Find cause first. |
Distinguish braid damage from a gas leak
The decorative-looking outer braid is not always the gas barrier; the bellows inside normally retains pressure. A few broken outer strands do not prove perforation, but extensive fraying shows abnormal movement or contact and reduces protection.
Use a safe low-pressure smoke test and inspect for soot. Do not feel for leakage with a hand near a running exhaust.
Check mounts and exhaust supports first
Observe engine movement using an approved loaded test with a competent operator and safe clearances. Split rubber, leaking hydraulic mounts and loose brackets can let the powertrain travel beyond design limits.
Inspect all exhaust hangers for stretch or seizure. The system should hang naturally without the flex pipe supporting silencer mass.
Backpressure and heat
A blocked catalyst or DPF raises upstream pressure and temperature, increasing leakage through weak bellows. Diagnose loss of power, regeneration faults and abnormal temperature rather than treating repeated flex failure as an isolated corrosion issue.
Do not test backpressure by drilling an uncontrolled hole. Use existing sensor ports or the specified adapter and pressure range.
Direct-fit versus universal repair
A direct-fit pipe preserves bends, flanges, sensor locations and working length. A universal flex section can be valid when installed by a skilled fabricator into sound pipe with correct geometry. It is not suitable where corrosion extends beyond the proposed cut lines.
Measure available straight collars after removing damaged metal. Reducer cones and multiple short sleeves create turbulence and stress if used only to make a wrong diameter fit.
Preparation for cutting or welding
| Stage | Control | Hazard prevented |
|---|---|---|
| Cool | Allow exhaust and after-treatment to cool fully. | Burn and fire. |
| Lift/support | Use rated equipment and support both pipe sides. | Vehicle or exhaust fall. |
| Inspect surroundings | Locate fuel/brake pipes, wiring, tank and insulation. | Spark and heat damage. |
| Protect electronics | Follow battery/welding-current precautions. | Module and bearing-current damage. |
| Remove sensors if required | Protect oxygen/temperature sensors and leads. | Heat, impact and contamination. |
| Ventilate | Control fumes, coatings and fire watch. | Toxic inhalation and delayed ignition. |
Cutting and trial alignment
Mark the original centreline and cut square through sound metal. Deburr without leaving swarf in the exhaust. Trial-fit at natural working length with the vehicle's engine and exhaust normally supported.
Do not pull a gap closed by stretching the bellows or push excess length together. Rotate the part only where its liner and construction permit.
Welding controls
Tack at several evenly spaced positions while checking alignment, then complete controlled welds on rigid collars. Shield the braid from spatter and keep heat away from convolutions. The process and filler must suit the pipe and flex material.
Clamp the welding return close to the work so current does not pass through bearings or electronics. Welding near fuel systems requires a formal safe method; if conditions are unsuitable, remove the assembly.
Clamped repair sections
Where a flex pipe is designed with extended rigid ends, approved bands can join it to round sound pipe. Butt and overlap clamps are different. Tighten evenly and ensure hardware cannot hit the body or road.
Do not place a U-bolt over the active bellows. It will crush the convolutions and concentrate fatigue.
Alignment and clearance
| Check | Method | Pass condition |
|---|---|---|
| Natural length | Observe with all supports fitted. | No visible compression or stretch. |
| Twist | Compare seam/end features before final weld. | Bellows remains untwisted. |
| Engine movement | Controlled load test after safe assembly. | No limit contact or overextension. |
| Body clearance | Check hot-growth and suspension paths. | No contact with shields or tunnel. |
| Nearby services | Inspect fuel, brake, wiring and boots. | Specified heat and movement gap. |
| Hangers | Check load sharing throughout exhaust. | No weight carried by flex alone. |
Leak testing and commissioning
Use an approved low-pressure smoke or leak test before running. Start outdoors and observe without touching hot or moving parts. Listen under controlled engine load, then allow full heat expansion and check that clearances remain.
After cool-down, inspect weld toes, clamps and soot. Rescan oxygen, DPF or catalyst data if the original leak could have affected monitoring.
Mistakes that shorten life
Common errors are selecting by visible braid length only, welding the bellows, fitting under tension, using the flex section to bridge major misalignment, leaving broken mounts, hanging a catalyst from it or choosing an unlined light-duty part for a demanding upstream application.
Exhaust wrap can hide rather than repair a split and trap corrosive condensate. It does not restore a pressure-tight flexible structure.
UK MOT and roadworthiness
A leaking or insecure exhaust, excessive noise and affected emissions equipment can result in roadworthiness or MOT defects. The flex pipe must not allow a hot section to threaten other systems.
Carbon monoxide can enter through floor openings or ventilation. Any cabin exhaust smell warrants stopping the vehicle and arranging diagnosis.
Practical exhaust-flex-pipe FAQs
Q: Does frayed braid always mean the pipe leaks?
A: No, but it shows damage and the inner bellows needs testing.
Q: Can any same-diameter flex pipe be fitted?
A: No. Length, movement, liner, temperature and clearance also matter.
Q: Can the flex section support the exhaust?
A: No. Hangers must carry system weight.
Q: Why did a new flex pipe fail quickly?
A: Check mounts, alignment, supports, backpressure and installation preload.
Q: Can it be welded anywhere along its body?
A: No. Weld only the designed rigid collars or ends.
Q: Is an interlock liner directional?
A: Some are; follow the part's flow-orientation instructions.
Q: Can a sleeve cover a split flex pipe?
A: Not as a proper repair; renew the flexible section.
Q: How is a leak checked safely?
A: Use an approved low-pressure method, not hands near hot gas.
Q: Must engine mounts be inspected?
A: Yes. Excess movement is a common repeat-failure cause.
Q: Can a blocked DPF damage the flex pipe?
A: Excess pressure and heat can increase stress and leakage.
Q: Should it be stretched to fill a gap?
A: No. Install at its natural designed working length.
Q: Can welding damage vehicle electronics?
A: Yes. Follow approved isolation and return-clamp procedures.
Q: Is driving with cabin fumes acceptable?
A: No. Stop and arrange repair or recovery.
