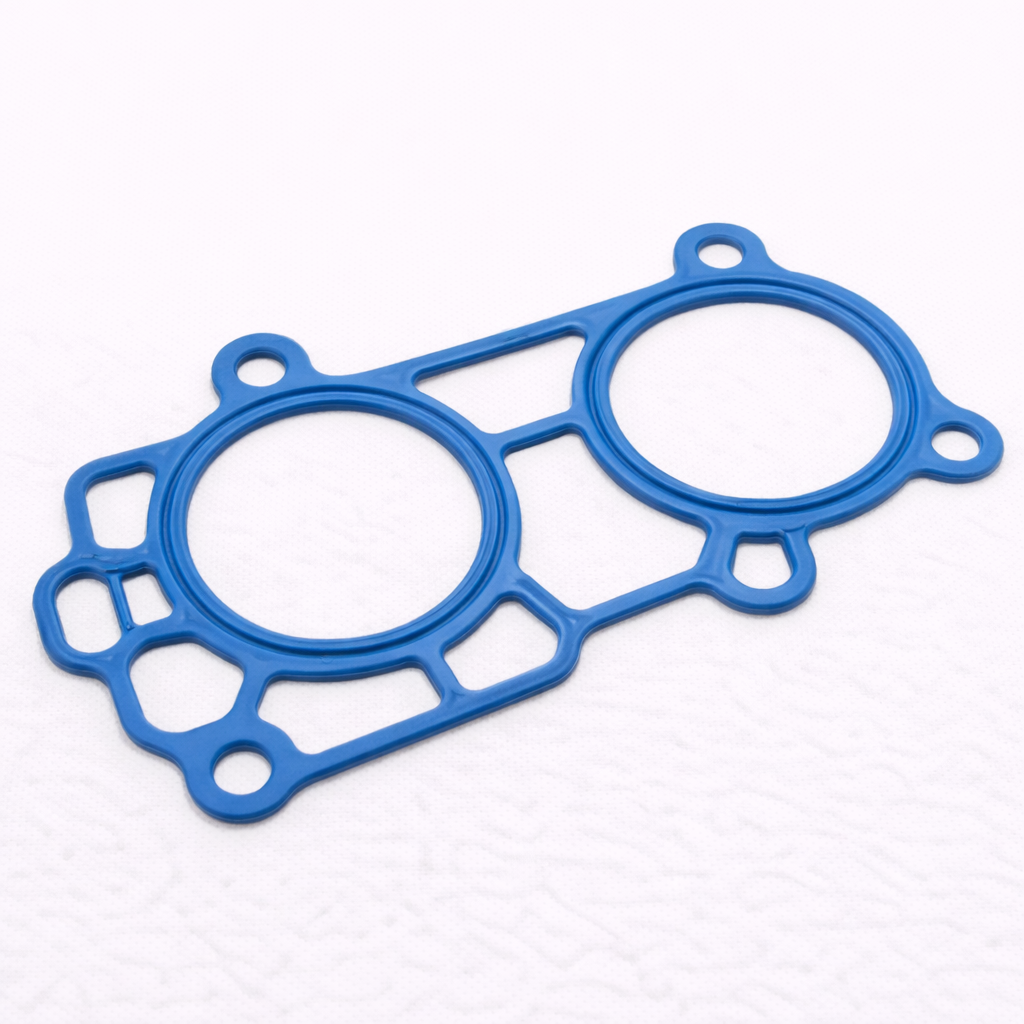

Oil Cooler Gasket

Oil-cooler seals separate fluids under heat and pressure

A coolant-to-oil heat exchanger contains adjacent passages. During warm-up, coolant can heat oil; under load it removes oil heat. External gaskets route both fluids between block, housing and cooler.

Pressure direction changes with operating state. Cold oil can exceed coolant pressure, while a cooling system remains pressurised after shutdown. Seal material and geometry must tolerate both.

Cooler configurations

Pressure differentials change through the drive

Cold-start oil pressure and viscosity are high, placing maximum load on oil-side seals. As temperature rises, coolant pressure builds and oil pressure at idle falls. After shutdown, the coolant may remain pressurised while oil galleries drain.

This changing relationship explains why the same internal breach can push oil into coolant on the road yet admit coolant into oil during cooling. A single static test may miss it; follow hot, cold and isolated-core procedures.

Thermostats and bypass valves

Some air/oil systems use a thermostat so cold oil bypasses the cooler. Filter housings can also contain pressure-relief, anti-drain and filter-bypass valves. Their springs and plugs are not gasket accessories.

Record every valve and piston orientation during disassembly. A stuck oil thermostat causes overcooling or high temperature even when the external gasket is perfectly sealed.

Corrosion around coolant ports

Depleted or mixed coolant can pit aluminium beneath the seal lip. Fitting a new gasket over a crater leaves an unsupported path that soon leaks again. Measure damage against repair limits.

Do not fill pits with household epoxy or use thicker O-rings to compensate. Replace or professionally repair the housing according to approved practice and correct the coolant chemistry.

Pipe unions and remote coolers

Remote cooler lines can use threaded flare, banjo, quick-connect or O-ring joints. Counterhold adapters so removing the hose does not twist the cooler tank or filter housing.

Hoses must retain their natural routing, abrasion sleeves and clearance from exhaust and drive belts. A line that is kinked or internally delaminated restricts oil flow and can mimic cooler failure.

Seal materials and profiles

A visually similar O-ring may have the wrong chemistry

Part identification

Use VIN, engine revision and the casting or cooler number. Manufacturers revise housings, port shapes and elastomer compounds during production.

Lay out kit components against an exploded diagram. Do not assume spare-looking rings are optional; some seal pipe stubs or hidden block passages.

External leak diagnosis

Oil and coolant cross-contamination

Oil often enters coolant because oil pressure is higher while running. After shutdown, pressurised coolant can move the opposite way. Appearance alone does not identify the failed boundary.

A gasket between correctly separated ports may leak externally; a cracked internal plate usually requires cooler replacement. Bench pressure testing must use rated equipment and limits.

Other sources that mimic the gasket

Gravity and airflow spread oil widely. Filter-cap O-rings fitted in the wrong groove, cam-cover leaks and vacuum-pump seals can wet the cooler below.

UV dye may be used only where approved and in measured concentration. Powder and improvised sealants can contaminate the engine.

Safe preparation

Access and removal

Air intake, alternator, manifold or engine mount may obstruct the housing. Follow support and belt procedures; do not lever against plastic coolant connections.

Loosen housing bolts in the stated sequence and support the cooler. Different bolt lengths can enter oil galleries or bottom in blind holes if swapped.

Cleaning sealing faces

Use plastic or specified scrapers that cannot gouge aluminium. Abrasive discs can remove metal and shed particles into oil passages.

Keep solvent out of galleries and blow no debris towards the engine. Threaded holes must be clean and dry to achieve correct torque unless the procedure states otherwise.

Housing and cooler inspection

Check flatness with the specified straightedge/feeler method, inspect corrosion around coolant ports and look for cracks at bolt bosses. Plastic housings can distort from prior overtightening.

Replace a cooler with internal contamination or pressure-test failure. A new gasket will not flatten a warped face.

Seal installation

Confirm each seal by part number and groove. Lubricate with clean approved fluid or assembly aid only where directed, and do not stretch more than necessary.

RTV added to a moulded gasket can make it slide, alter compression and extrude into a passage. Install dry unless service data names sealant.

Fasteners and tightening

Replace torque-to-yield or coated one-time fasteners. Start every bolt by hand, seat the assembly evenly and use the specified cross-sequence and stages.

Torque values depend on clean or lubricated thread condition. Guessing or using an impact tool cracks cast housings and crushes gaskets.

Fluid restoration

Fit a new oil filter where contamination or procedure requires and refill with exact oil approval and quantity. Refill coolant with the approved mixture and water quality.

If fluids mixed, the repair scope may include repeated cooling-system cleaning, hose/expansion-tank replacement and lubrication inspection. Do not assume one drain removes residue.

Priming and bleeding

Prime the oil circuit by the engine method before normal start. Some housings require pre-filling; others must remain empty. Verify pressure promptly.

Vacuum-fill or bleed coolant through required screws, heater valves and electric-pump commands. Air locks cause local overheating.

Post-repair verification

Common mistakes

Errors include replacing the lowest wet seal without tracing the source, mixing similar O-rings, scratching aluminium, using excess RTV, swapping bolt lengths and starting without oil priming.

Do not top up indefinitely, use stop-leak in the oil circuit or drive with mixed fluids.

UK MOT and environmental context

Significant oil or coolant leaks can affect MOT and create fire, tyre and road hazards. Loss of pressure or lubrication can destroy the engine suddenly.

Separate used oil, coolant and contaminated wash fluids for authorised disposal. Never discharge them into drains.

Practical oil-cooler-gasket FAQs

Q: Does oil below the cooler prove its gasket leaks?
A: No. Trace the highest wet point first.

Q: Can an external gasket cause fluids to mix?
A: Some port seals can, but internal cooler or engine faults must be tested.

Q: Are similar O-rings interchangeable?
A: No. Size, profile and material must match.

Q: Should RTV be added to a moulded seal?
A: Only if the exact service procedure specifies it.

Q: Can hot coolant be drained?
A: No. Allow pressure and temperature to fall safely.

Q: May abrasive discs clean aluminium faces?
A: Avoid unapproved abrasives that remove metal and shed debris.

Q: Does a new gasket repair a cracked cooler?
A: No. Replace the failed exchanger or housing.

Q: Must bolt positions be recorded?
A: Yes. Length and tightening sequence can differ.

Q: Is oil-system priming necessary?
A: Follow the engine procedure to establish pressure before load.

Q: Can mixed coolant and oil simply be topped up?
A: No. Stop and diagnose the failed boundary.

Q: Why replace the filter?
A: It may hold contamination and is often disturbed during repair.

Q: When is coolant level final?
A: After correct bleeding, heat cycles and complete cooling.

Q: What proves a successful repair?
A: Stable pressure, clean separated fluids and no hot/cold leakage.
