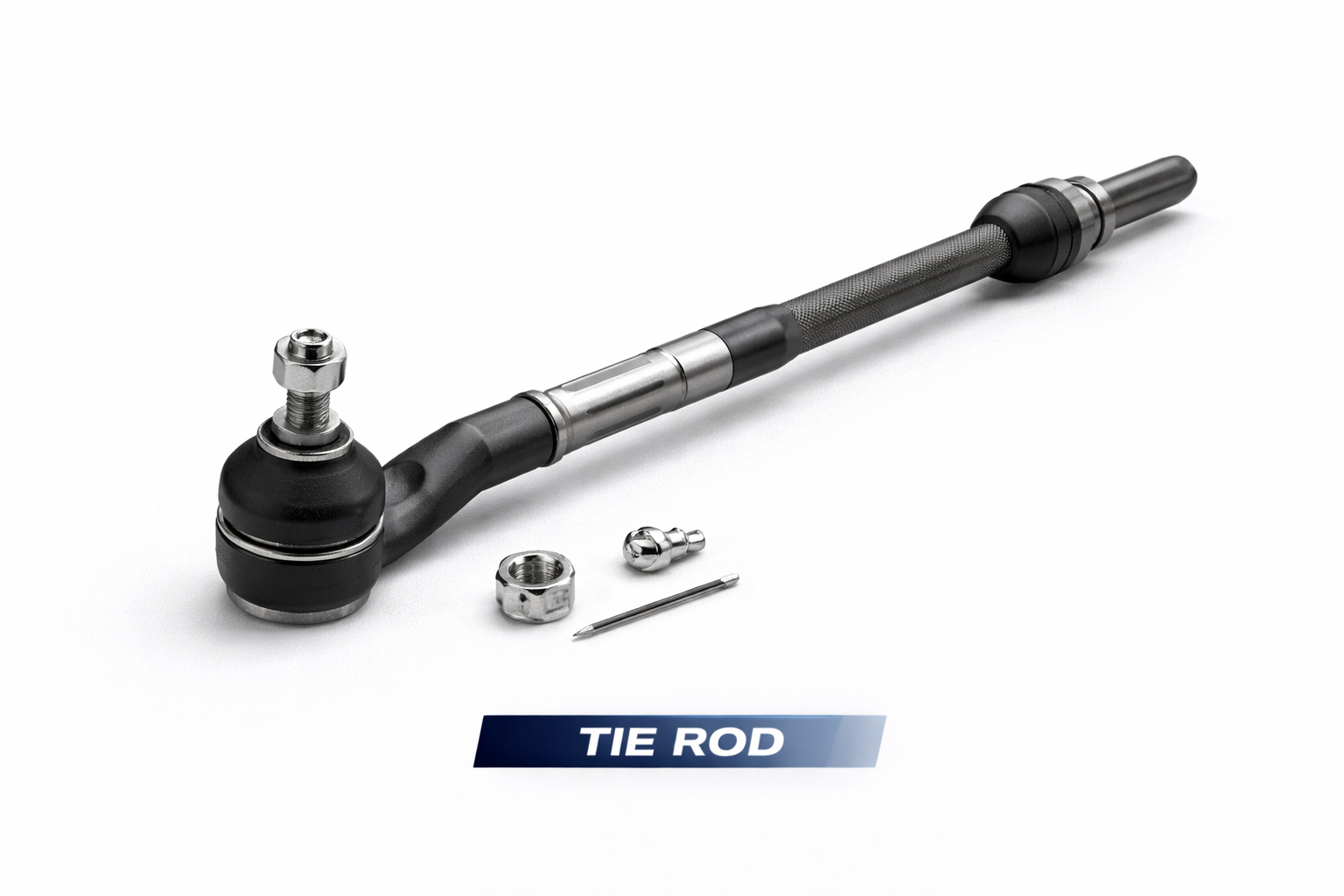

The tie rod closes the steering force path to the wheel
Rack or steering-box movement becomes linear push and pull through the rod. Its ball joints articulate as suspension and steering angles change, while the rigid shank carries alternating tension and compression.
Rod length defines toe. Joint centres and offsets also influence bump steer and steering symmetry, so approximate fit is unacceptable.
Steering linkage arrangements
| Layout | Tie-rod arrangement | Adjustment | Service focus |
|---|---|---|---|
| Rack-and-pinion | Inner axial joint plus outer end each side. | Outer thread or complete assembly length. | Rack boot, inner articulation and toe. |
| Recirculating-ball linkage | Centre/relay rod with side tie rods. | Sleeves between joints. | Pitman/idler arms and link geometry. |
| Solid-axle cross steer | Drag link and tie rod across knuckles. | Threaded sleeves or rod ends. | Axle articulation and clamp orientation. |
| Rear-wheel steering | Actuator links to rear knuckles. | Model-specific electronic/mechanical setting. | Locking, calibration and four-wheel alignment. |
| Complete preassembled rod | Inner, shank and outer supplied together. | Initial reference still needs alignment. | Correct side and total travel. |
Ball-joint articulation
A hardened ball stud rotates in a low-friction socket held by a spring or bearing liner. The joint must move freely through steering and suspension travel without axial or radial looseness beyond specification.
A gaiter retains lubricant and excludes water. Once torn, abrasive contamination can progress faster than external movement suggests.
Tapered stud connection
The taper transmits steering load through wedging contact
The stud and steering-arm bore lock together as the nut is tightened. Paint, grease, rust scale or a damaged taper can prevent full seating and transfer load to the threads.
Use the specified dry or treated condition and never substitute a nut to pull a mismatched taper into place.
Adjustment sleeves and threads
Opposite left- and right-hand threads can change rod length when a sleeve rotates. Clamps then lock both sides. Other systems thread the outer end along an inner rod.
Clean and identify thread direction before forcing. Clamp slots and bolts need their specified orientation so the sleeve grips evenly and clears surrounding parts.
Loads and bending
Normal steering produces axial load. Kerb impact, towing from the rod or incorrect jacking can bend it, changing toe and reducing column strength. A slight bend may be difficult to see.
Replace a bent or kinked rod. Heating or straightening changes material condition and hides impact evidence in related parts.
Toe and steering-centre relationship
Toe is the difference in wheel direction viewed from above. Tie-rod length alters it, but both sides must be coordinated so the rack remains centred and the steering wheel aligns.
Setting only the steering wheel by unequal rod adjustment can put the rack off-centre, change lock and upset steering-angle data.
Part identification
Use VIN, axle/steering option, side and original number. Compare joint-centre length, shaft shape, threads, taper, bend, adjuster and boots. Heavy-duty, sport and different steering-rack suppliers may vary.
Clarify catalogue terminology: a “tie rod” may be the complete side assembly, only its inner joint or a solid cross rod. Check supplied boundaries.
Symptoms and competing causes
| Symptom | Tie-rod possibility | Alternative cause | Evidence |
|---|---|---|---|
| Steering free play | Loose inner/outer ball socket. | Rack, column, pitman/idler or bearing. | Observe each joint during small reversals. |
| Feathered tyre wear | Incorrect toe from rod length/play. | Bent arm, bush movement or tyre issue. | Alignment readings and loaded-joint inspection. |
| Knock on steering change | Joint movement or loose clamp. | Rack mount, ball joint or suspension link. | Touch/visual movement at controlled input. |
| Wheel off-centre | Unequal side adjustment or bent rod. | Rear thrust angle, steering wheel refit or calibration. | Rack centre and complete geometry. |
| Vehicle pulls | Toe asymmetry possible. | Tyre conicity, brake drag, camber/caster. | Tyre swap and four-wheel alignment. |
| Stiff/notchy steering | Seized rod-end ball. | Top mount, rack, column or ball joint. | Isolate articulation with safe support. |
Tyre and impact inspection
Check pressures, tread, sidewall damage and wheel run-out before blaming steering. Ask about kerb or pothole impact and inspect control arms, knuckle, subframe and rack mounts.
A new tie rod cannot correct a bent steering arm or shifted subframe.
Play testing
Position the vehicle as specified so joint load does not conceal or create movement. An assistant makes small steering reversals while the technician watches and feels each link from a safe location.
Distinguish ball-socket play from compliant rack movement. Use a dial indicator where a service limit calls for it.
Boot inspection
Flex the gaiter to reveal cracks, punctures and loose retaining rings. Look for rust-coloured grease or water. Do not inject generic grease through an unapproved needle.
On rack systems, inspect the larger bellows for fluid from a leaking steering rack and for correct vent connection.
Thread and sleeve condition
Mark current length, release clamps and verify threads can adjust without twisting the ball-joint boots. Severe corrosion, crossed threads or a split sleeve requires replacement.
Do not use excessive heat near grease-filled joints, rack seals, brake hoses or wheel-speed wiring.
Safe separation
Remove locking devices and loosen the nut according to the procedure. Use a ball-joint separator that loads the joint safely. Protect the stud thread if the joint will be reused for diagnosis.
Hammering the end mushrooms threads; striking the steering arm risks cracking or bearing damage. Never stand in the release path of a loaded separator.
Inner connection removal
Rack-mounted inner joints may require a counterhold and special socket while protecting the rack from twisting. Remove/fit locking washers or tabs exactly. Some joints use thread locker at a specified preparation and torque.
Do not transfer removal torque through the rack gears or electric assist mechanism.
Initial length setting
Measure between defined centres or count exposed threads only to place the vehicle near its previous setting for safe movement to alignment. New and old joints can have different housing lengths.
Never treat turn count as final geometry. Verify actual toe and steering centre on calibrated alignment equipment.
Installation controls
| Stage | Required control | Failure prevented |
|---|---|---|
| Identity | Layout, side, length, threads and tapers match. | Wrong travel and insecure joint. |
| Related parts | Rack, arms, mounts, wheel and suspension sound. | Persistent geometry fault. |
| Inner joint | Counterhold, locking device and torque used. | Rack damage and joint loosening. |
| Taper | Clean correct seat; new nut/locking device. | Stud movement and separation. |
| Adjustment | Threads even, boots relaxed and clamps oriented. | Corrosion exposure and interference. |
| Alignment | Rack centred, four-wheel toe and wheel position set. | Tyre wear and unequal lock. |
| Calibration | Steering-angle/ADAS procedures completed. | Stability and assistance faults. |
Fasteners and locking
Use new self-locking nuts, split pins, tabs and clamp hardware where specified. Tighten the taper nut to torque/angle without turning the ball stud through its protective boot.
Never back off below minimum torque merely to align a castellated nut unless the procedure explicitly permits the next slot.
Wheel alignment
Check tyre pressures, ride height and joint condition before measuring. Centre the steering rack, compensate wheel run-out and set rear thrust angle before front toe where the equipment procedure requires it.
Tighten adjuster clamps without changing readings, then sweep steering to confirm equal lock and no interference.
Electronic calibration
Steering-angle sensors, electric power steering and lane systems use a known straight-ahead reference. Mechanical alignment must be correct before diagnostic zeroing. Some vehicles require a dynamic drive calibration.
Do not calibrate around an off-centre rack; it hides rather than fixes geometry.
Post-repair verification
With wheels free and then loaded, turn lock to lock and inspect boot twist, clamp clearance, brake hoses and wiring. Recheck every locking device and wheel fastener.
Road-test progressively for centre return, stable tracking and no noise. Confirm the steering wheel remains centred on a level road and rescan relevant modules.
UK MOT and urgency
Steering-joint security, excessive play, damage and locking devices are roadworthiness matters. A torn dust cover may also expose a joint to rapid deterioration depending on condition.
Do not drive with visible joint separation, major free play, a cracked/bent rod, missing taper nut or unsafe steering response. Recover the vehicle.
Common mistakes
- Ordering a “tie rod” without confirming which assembly section is supplied.
- Matching overall appearance while ignoring taper and joint centres.
- Striking or heating a steering arm to release the taper.
- Turning an inner joint without protecting the steering rack.
- Using thread count as final alignment.
- Setting toe with the rack off-centre.
- Reusing a distorted locking nut or split pin.
- Skipping steering-angle or driver-assistance calibration.
Practical tie-rod FAQs
Q: Does tie rod always mean the complete assembly?
A: No; confirm whether inner, outer, sleeve or complete link is supplied.
Q: Can a torn boot be ignored if there is no play?
A: No; contamination can rapidly wear the joint.
Q: Why are some adjuster threads left-handed?
A: Opposed threads change total rod length when the sleeve turns.
Q: Can the old turn count set final toe?
A: No; it is only a rough starting reference before alignment.
Q: Why keep the rack centred?
A: It preserves equal travel, steering wheel position and sensor reference.
Q: Can a bent rod be straightened?
A: No; replace it and inspect impact-related components.
Q: Should a taper be greased?
A: Use the exact clean/dry or treated condition specified.
Q: Can a hammer release the joint?
A: Use the approved separator to avoid thread and arm damage.
Q: Is wheel alignment mandatory?
A: Yes after tie-rod replacement or length adjustment.
Q: Does pulling always mean tie-rod trouble?
A: Tyres, brakes, camber, caster and rear geometry also cause pull.
Q: Are new locking nuts required?
A: Fit all one-time nuts, pins or tabs stated by the procedure.
Q: When is the vehicle unsafe to drive?
A: With joint separation, major play, bent/cracked rod or insecure locking.
Q: What confirms a successful repair?
A: Secure joints, centred steering, correct geometry and stable road response.
