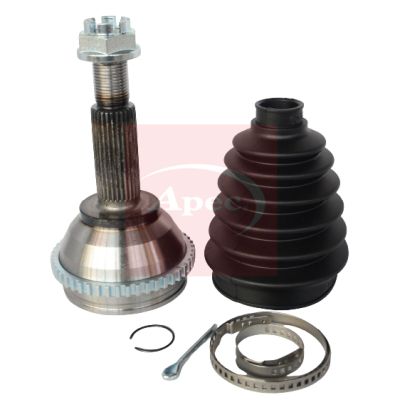

Apec ACV1022 Joint, drive shaft - 1
Apec ACV1022 Joint, drive shaft - 1
APEC

Apec ACV1022 Joint, drive shaft

SKU: ACV1022
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.12 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
2.4 TD 2402 CCM 75 HP 08/2000 - 08/2003
TRANSIT TOURNEO Bus (FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 125 HP 03/2002 - 03/2006
2.0 1998 CCM 75 HP 06/2000 - 08/2003
2.0 1998 CCM 101 HP 06/2000 - 03/2005
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014

The Apec ACV1022 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 91 mm diameter, 57 mm seal ring diameter, 105 mm abs-ring diameter, and 48 teeth. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft
External Toothing wheel side : 28
Internal Toothing wheel side : 26
Length [mm] : 185
Diameter [mm] : 91
Seal Ring Diameter [mm] : 57
ABS-Ring Diameter [mm] : 105
Number of Teeth : 48
  • Vendor APEC
  • SKU ACV1022
  • Barcode 5056500691823
  • FORD : 1328359 1C153A327BA 4119951 4602016
  • BORG & BECK : BCJ1503
  • FEBI BILSTEIN : 192913
  • NAPA : NCV1022
  • Shaftec : CV332AN
