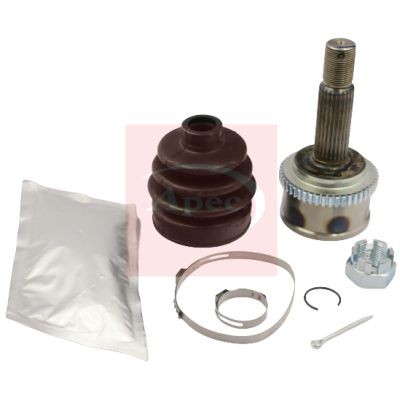

Apec ACV1101 Joint, drive shaft
Your selected vehicle
Regular price
£35.97
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Apec ACV1101 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 71 mm diameter, 53 mm seal ring diameter, 76 mm abs-ring diameter, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.
Function :
Joint, drive shaft
External Toothing wheel side :
25
Internal Toothing wheel side :
19
Length [mm] :
148
Diameter [mm] :
71
Seal Ring Diameter [mm] :
53
ABS-Ring Diameter [mm] :
76
Number of Teeth :
48
Fitting Position :
Front Axle
Fitting Position :
Wheel Side
Braking/Driving Dynamics :
for vehicles with ABS
- Vendor APEC
- SKU ACV1101
- HYUNDAI : 465001C060 46500-1C060 495001C050 495001-C050 49500-1C050 495001C060 495001-C060
- KIA : 495001C050 495001-C050
- BLUE PRINT : ADG089127
- NAPA : NCV1101
- Shaftec : JCV615AN
