Home / Car Parts / Transmission / Final Drive / CV Joint

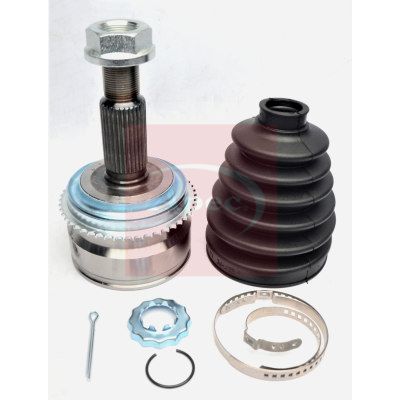

Apec ACV1208 Joint, drive shaft - 1
Apec ACV1208 Joint, drive shaft - 1
APEC

Apec ACV1208 Joint, drive shaft

SKU: ACV1208
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£60.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 170 HP From 09/2006
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.8 V6 (V87W, V97W) 3828 CCM 250 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.8 V6 (V87W) 3828 CCM 248 HP From 10/2006
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

The Apec ACV1208 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 103 mm diameter, 66 mm seal ring diameter, 102 mm abs-ring diameter, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft
External Toothing wheel side : 30
Internal Toothing wheel side : 36
Length [mm] : 167
Diameter [mm] : 103
Seal Ring Diameter [mm] : 66
ABS-Ring Diameter [mm] : 102
Number of Teeth : 50
Fitting Position : Front Axle
Fitting Position : Wheel Side
  • Vendor APEC
  • SKU ACV1208
  • Barcode 5056500692738
  • MITSUBISHI : MR528643
  • BLUE PRINT : ADC48936
  • NAPA : NCV1208
  • Shaftec : JCV659AN
