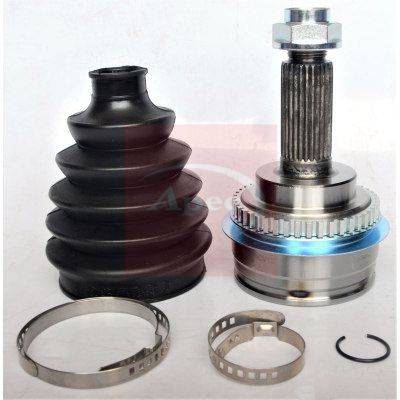

Apec ACV1224 Joint, drive shaft - 1
Apec ACV1224 Joint, drive shaft - 1
APEC

Apec ACV1224 Joint, drive shaft

SKU: ACV1224
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£24.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
FORESTER (SF_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SF5) 1994 CCM 122 HP 08/1997 - 09/2002
2.0 AWD (SF5) 1994 CCM 125 HP 06/1998 - 09/2002
2.0 S Turbo AWD (SF5) 1994 CCM 177 HP 04/2001 - 09/2002
FORESTER (SG_)
Description Cylinder Capacity Horse Power Year
2.0 S Turbo AWD (SG5) 1994 CCM 177 HP 02/2002 - 05/2005
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
1.6 AWD (GD5) 1597 CCM 95 HP 12/2000 - 06/2009
2.0 i AWD (GD9) 1994 CCM 125 HP 12/2000 - 06/2009
2.0 WRX Turbo AWD (GDA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX Turbo AWD (GDA) 1994 CCM 225 HP 12/2002 - 03/2007
2.0 i R AWD (GD9) 1994 CCM 160 HP 09/2005 - 03/2007
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
1.6 AWD 1597 CCM 95 HP 12/2000 - 09/2006
2.0 AWD (GG9) 1994 CCM 125 HP 12/2000 - 12/2007
2.0 Turbo AWD (GGA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX Turbo AWD (GGA) 1994 CCM 225 HP 12/2002 - 09/2006
2.0 i R AWD (GG9) 1994 CCM 160 HP 12/2000 - 06/2007
LEGACY III (BE)
Description Cylinder Capacity Horse Power Year
2.0 AWD (BE5) 1994 CCM 125 HP 04/1999 - 08/2003
2.5 AWD (BE9) 2457 CCM 156 HP 10/1998 - 08/2003
LEGACY Mk III Estate (BH)
Description Cylinder Capacity Horse Power Year
3.0 H6 AWD (BHE) 3000 CCM 209 HP 08/2000 - 08/2003
OUTBACK (BH)
Description Cylinder Capacity Horse Power Year
3.0 H6 AWD (BHE) 3000 CCM 209 HP 10/2000 - 08/2003
2.5 AWD (BH9) 2457 CCM 156 HP 10/2000 - 08/2003

The Apec ACV1224 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 87 mm diameter, 56 mm seal ring diameter, 82 mm abs-ring diameter, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft
External Toothing wheel side : 27
Internal Toothing wheel side : 30
Length [mm] : 150
Diameter [mm] : 87
Seal Ring Diameter [mm] : 56
ABS-Ring Diameter [mm] : 82
Number of Teeth : 44
Fitting Position : Front Axle
Fitting Position : Wheel Side
  • Vendor APEC
  • SKU ACV1224
  • Barcode 5056500692899
  • SUBARU : 28021AC200 28021-AC200 28094AC060 28094-AC060 28393FE020 28393-FE020
  • BLUE PRINT : ADS78916
  • BORG & BECK : BCJ1553
  • NAPA : NCV1224
  • Shaftec : JCV975AN
