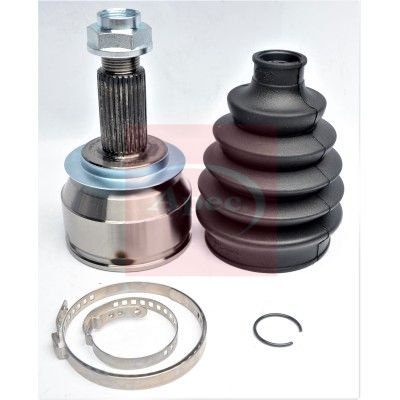

Apec ACV1243 Joint, drive shaft - 1
Apec ACV1243 Joint, drive shaft - 1
APEC

Apec ACV1243 Joint, drive shaft

SKU: ACV1243
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£66.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
FORESTER (SH_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SHJ) 1995 CCM 150 HP From 01/2010
2.5 AWD (SH9) 2457 CCM 171 HP 01/2009 - 09/2013
2.0 AWD (SH5) 1994 CCM 150 HP 01/2008 - 09/2013
2.0 D AWD (SHH, SHD, SHN) 1998 CCM 147 HP 09/2008 - 09/2013

The Apec ACV1243 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 140 mm length, 81 mm diameter, 54 mm seal ring diameter, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft
External Toothing wheel side : 27
Internal Toothing wheel side : 32
Length [mm] : 140
Diameter [mm] : 81
Seal Ring Diameter [mm] : 54
Length 2 [mm] : 75
Fitting Position : Front Axle
Fitting Position : Wheel Side
  • Vendor APEC
  • SKU ACV1243
  • Barcode 5056536520746
  • NAPA : NCV1243
  • Shaftec : CV1715N
