Apec ACV1286 Joint, drive shaft - 1
Apec ACV1286 Joint, drive shaft - 1
APEC

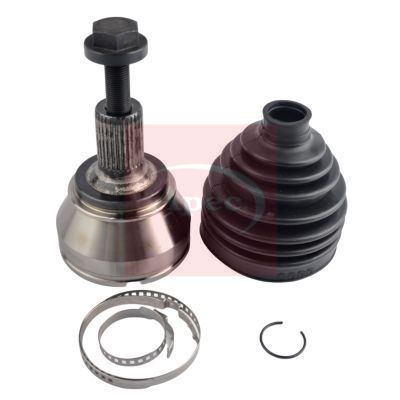

Apec ACV1286 Joint, drive shaft

SKU: ACV1286
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£56.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 180 (176.042) 1595 CCM 122 HP 09/2012 - 05/2018
A 200 (176.043) 1595 CCM 156 HP 06/2012 - 05/2018
A 180 CDI / d (176.012) 1461 CCM 109 HP 06/2012 - 05/2018
A 180 CDI (176.000) 1796 CCM 109 HP 06/2012 - 10/2014
A 200 CDI (176.001) 1796 CCM 136 HP 06/2012 - 10/2014
A 220 CDI (176.003) 2143 CCM 170 HP 09/2012 - 05/2018
A 160 CDI / d (176.011) 1461 CCM 90 HP 06/2013 - 05/2018
A 200 CDI / d (176.008) 2143 CCM 136 HP 02/2014 - 05/2018
A 200 CDI / d 4-matic (176.002) 2143 CCM 136 HP 02/2014 - 05/2018
A 220 CDI 4-matic (176.005) 2143 CCM 170 HP 02/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 180 (246.242) 1595 CCM 122 HP 11/2011 - 12/2018
B 200 (246.243) 1595 CCM 156 HP 11/2011 - 12/2018
B 180 CDI (246.200) 1796 CCM 109 HP 11/2011 - 08/2014
B 200 CDI (246.201) 1796 CCM 136 HP 11/2011 - 08/2014
B 220 4-matic (246.247) 1991 CCM 184 HP 05/2013 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 170 HP 11/2011 - 12/2018
B 160 CDI / d (246.211) 1461 CCM 90 HP 05/2013 - 12/2018
B 180 CDI / d (246.212) 1461 CCM 109 HP 02/2013 - 12/2018
B 200 CDI / d (246.208) 2143 CCM 136 HP 08/2014 - 12/2018
B 200 CDI / d 4-matic (246.202) 2143 CCM 136 HP 08/2014 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 177 HP 08/2014 - 12/2018
B 220 CDI / d 4-matic (246.205) 2143 CCM 177 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 180 CDI / d (117.312) 1461 CCM 109 HP 10/2013 - 05/2018
CLA 200 (117.343) 1595 CCM 156 HP 01/2013 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 163 HP 01/2013 - 03/2019
CLA 200 CDI (117.301) 1796 CCM 136 HP 06/2013 - 08/2014
CLA 200 CDI / d 4-matic (117.302) 2143 CCM 136 HP 07/2014 - 03/2019
CLA 200 CDI / d (117.308) 2143 CCM 136 HP 07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 163 HP 08/2014 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 177 HP 09/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 177 HP 09/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 200 (117.943) 1595 CCM 156 HP 01/2015 - 03/2019
CLA 200 CDI / d (117.908) 2143 CCM 136 HP 01/2015 - 03/2019
CLA 200 CDI / d 4-matic (117.902) 2143 CCM 136 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 180 d (117.912) 1461 CCM 109 HP 07/2015 - 05/2018

The Apec ACV1286 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 115 mm length, 100 mm diameter, 65 mm seal ring diameter, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft
External Toothing wheel side : 30
Internal Toothing wheel side : 27
Length [mm] : 115
Diameter [mm] : 100
Seal Ring Diameter [mm] : 65
Fitting Position : Front Axle
Fitting Position : Wheel Side
  • Vendor APEC
  • SKU ACV1286
  • Barcode 5056536562661
  • MERCEDES-BENZ : 2463600075 A246 360 00 75 A2463600075
  • BORG & BECK : BCJ1250
  • FEBI BILSTEIN : 186394
  • NAPA : NCV1286
