Apec ACV1326 Joint, drive shaft - 1
Apec ACV1326 Joint, drive shaft - 1
APEC

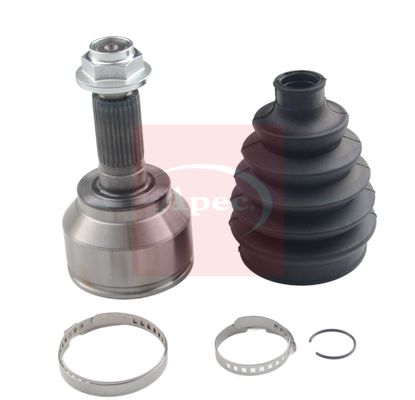

Apec ACV1326 Joint, drive shaft

SKU: ACV1326
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£51.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
2.0 MZR-CD (BK12) 1998 CCM 143 HP 12/2006 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
2.0 MZR-CD (BK14) 1998 CCM 143 HP 07/2006 - 06/2009

The Apec ACV1326 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 160 mm length, 84 mm diameter, 56 mm seal ring diameter, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft
External Toothing wheel side : 28
Internal Toothing wheel side : 24
Length [mm] : 160
Diameter [mm] : 84
Seal Ring Diameter [mm] : 56
Length 2 [mm] : 90
Fitting Position : Front Axle
Fitting Position : Wheel Side
  • Vendor APEC
  • SKU ACV1326
  • Barcode 5056667449183
  • NAPA : NCV1326
