APEC

Apec ACV1334 Joint, drive shaft

SKU: ACV1334

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£50.57 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI

GRAND VITARA I (FT, HT)

Description	Cylinder Capacity	Horse Power	Year
2.5 V6 24V 4x4 (TD62, SQ625)	2493 CCM	144 HP	04/1998 - 07/2003
1.6 4x4 (SQ416)	1590 CCM	94 HP	01/2001 - 12/2005
2.0 4x4 (SQ420)	1995 CCM	128 HP	05/1999 - 09/2005
2.0 TD 4x4 (SQ420D)	1998 CCM	87 HP	03/1998 - 07/2003
2.0 HDI 110 16V 4x4 (SQ420D, TD83V, JA420WD)	1997 CCM	109 HP	07/2001 - 09/2005
2.7 4x4 (JA627, SQ627W2)	2736 CCM	173 HP	09/2001 - 07/2003
2.7 4x4 (JA627)	2736 CCM	184 HP	01/2004 - 11/2005
2.5 V6 24V 4x4 (SQ625)	2493 CCM	158 HP	08/2004 - 11/2005
1.6 4x4 (SQ416)	1590 CCM	97 HP	09/2003 - 09/2005
2.0 TD 4x4 (SQ 420D)	1998 CCM	86 HP	04/2000 - 09/2005
2.0 HDI 110 4x4 (SQ420D, TD82V)	1997 CCM	109 HP	02/2001 - 12/2003

The Apec ACV1334 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 79 mm diameter, 48 mm seal ring diameter, front axle and wheel side fitting position, and manual Transmission transmission. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft

External Toothing wheel side : 26

Internal Toothing wheel side : 30

Length [mm] : 179

Diameter [mm] : 79

Seal Ring Diameter [mm] : 48

Fitting Position : Front Axle

Fitting Position : Wheel Side

Transmission Type : Manual Transmission

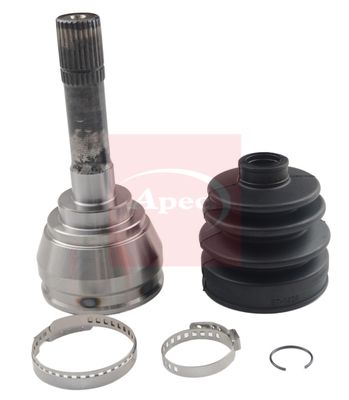

Apec ACV1334 Joint, drive shaft
