Apec ASM1567 Starter Motor

SKU: ASM1567

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£103.52 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CALIFORNIA T4 Camper (7DJ, 7DK, 70J)

Description	Cylinder Capacity	Horse Power	Year
2.5	2461 CCM	110 HP	05/1998 - 04/2002
2.4 D	2370 CCM	75 HP	05/1998 - 04/2002

TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1896 CCM	61 HP	07/1990 - 12/1995
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.5	2461 CCM	110 HP	11/1990 - 04/2003
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	08/1996 - 04/2003
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	05/1998 - 04/2003
1.9 D	1896 CCM	60 HP	09/1990 - 12/1995

TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)

Description	Cylinder Capacity	Horse Power	Year
2.5	2461 CCM	110 HP	11/1990 - 04/2003
1.9 D	1896 CCM	61 HP	07/1990 - 12/1995
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	07/1990 - 04/1998
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	08/1996 - 04/2003
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI	2461 CCM	88 HP	12/1998 - 04/2003
2.5 TDI	2461 CCM	151 HP	09/2000 - 04/2003

TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,

Description	Cylinder Capacity	Horse Power	Year
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 Syncro	2461 CCM	110 HP	08/1992 - 04/2003
2.5	2461 CCM	110 HP	09/1990 - 06/2003
1.9 D	1896 CCM	60 HP	09/1990 - 12/1995
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	01/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	07/1996 - 04/2003
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI	2461 CCM	151 HP	05/1998 - 04/2003

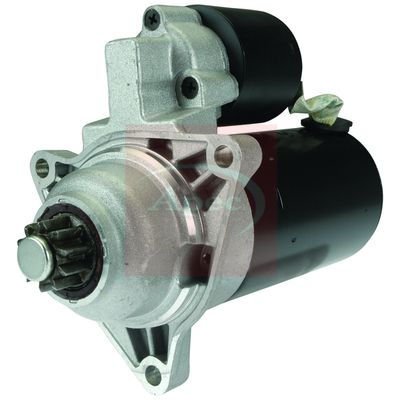

The Apec ASM1567 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 2,700 mm length, and 10 teeth. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 12

Rated Power [kW] : 2

Length [mm] : 2,700

Width [mm] : 1,621

Height [mm] : 1,359

Number of mounting bores : 3

Manufacturer Restriction : Bosch

Rotation Direction : Anticlockwise rotation

Number of Teeth : 10
