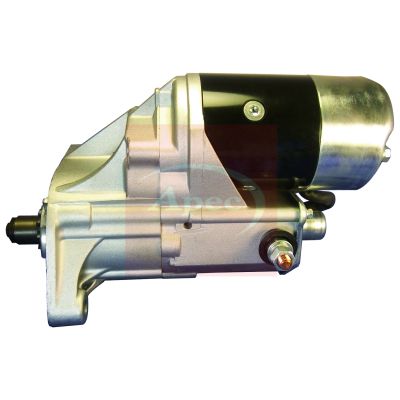

Apec ASM1632 Starter Motor

SKU: ASM1632

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£117.69 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

HIACE IV Van (_H1_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D (LH112)	2446 CCM	75 HP	08/1989 - 08/2004
2.4 D (LH102, LH104, LH112)	2446 CCM	78 HP	09/1989 - 08/1995

HIACE IV Bus (__H1_, __H2_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D (LXH12, LXH22)	2446 CCM	79 HP	08/1995 - 08/2001
2.4 TD (LXH12, LXH22)	2446 CCM	90 HP	08/1995 - 08/2001
2.4 TD 4WD (LXH18, LXH28)	2446 CCM	90 HP	08/1995 - 08/2001
2.4 D (LXH12)	2446 CCM	75 HP	08/1995 - 08/2001

HIACE IV Van (__H1_, __H2_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D (LXH12, LXH22)	2446 CCM	79 HP	08/1995 - 08/2001
2.4 TD (LXH12, LXH22)	2446 CCM	90 HP	08/1995 - 08/2001
2.4 TD 4WD (LXH18, LXH28)	2446 CCM	90 HP	08/1995 - 08/2001
2.4 D (LXH12, LXH22)	2446 CCM	75 HP	08/1995 - 08/2001

HILUX IV Pickup (_N5_, _N6_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D 4WD (LN65)	2446 CCM	75 HP	08/1983 - 07/1988

HILUX V Pickup (_N8_, _N9_, _N10_, _N11_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D (LN85, LN90)	2446 CCM	80 HP	10/1991 - 07/1997
2.4 EFI 4WD (RN106_, RN110_, RN106R, RN110R)	2367 CCM	114 HP	01/1989 - 07/1997
2.4 D 4WD (LN110_, LN110R)	2446 CCM	79 HP	01/1994 - 12/1997
2.4 D (LN90_, LN90R)	2446 CCM	79 HP	03/1995 - 08/1997
2.4 D (LN85_, LN110, LN90)	2446 CCM	83 HP	09/1988 - 08/1997
2.4 D 4WD (LN105, LN110)	2446 CCM	83 HP	09/1988 - 08/1997
2.4 D (LN5_, LN85, LN90)	2446 CCM	75 HP	10/1988 - 07/1997
2.4 D 4WD (LN105_, LN108_, LN110_)	2446 CCM	75 HP	09/1994 - 07/1997

HILUX VI Pickup (_N1_)

Description	Cylinder Capacity	Horse Power	Year
2.4 TD 4WD (LN165_, LN170_, LN190_, LN165, LN165H,...	2446 CCM	90 HP	08/1998 - 01/2002
2.4 D (LN150, LN145)	2446 CCM	75 HP	08/1997 - 04/2005
2.4 TD (LN190)	2446 CCM	90 HP	08/1997 - 07/2001
2.4 D (LN145, LN150)	2446 CCM	79 HP	08/1997 - 07/2005

LAND CRUISER (_J7_, _JL7_)

Description	Cylinder Capacity	Horse Power	Year
2.4 TD (LJ70_, LJ73_, LJ70RV)	2446 CCM	86 HP	10/1985 - 05/1990
2.4 TD (LJ70)	2446 CCM	90 HP	01/1990 - 05/1993

LAND CRUISER Hardtop (_J7_)

Description	Cylinder Capacity	Horse Power	Year
2.4 TD (LJ70_, LJ70R)	2446 CCM	90 HP	07/1990 - 05/1996

TARO

Description	Cylinder Capacity	Horse Power	Year
2.4 D 4x4	2446 CCM	83 HP	04/1989 - 03/1997

The Apec ASM1632 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.5 kW rated power, 3,701 mm length, and 11 teeth. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 12

Rated Power [kW] : 2.5

Length [mm] : 3,701

Width [mm] : 2,200

Height [mm] : 1,501

Number of mounting bores : 2

Number of threaded holes : 1

Manufacturer Restriction : Denso

Rotation Direction : Clockwise rotation

Number of Teeth : 11

Construction Year from : 01.1986

Apec ASM1632 Starter Motor
