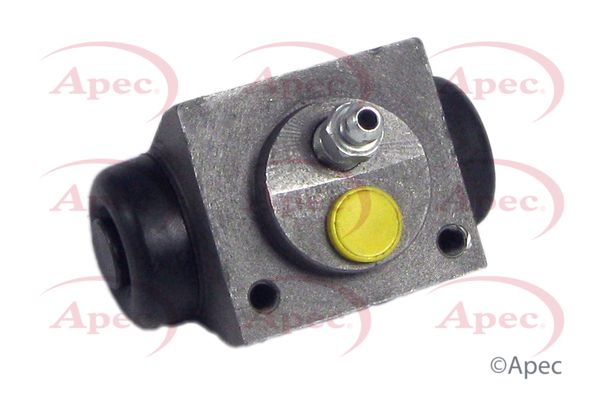

Apec BCY1543 Wheel Brake Cylinder

SKU: BCY1543

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£22.33 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)

Description	Cylinder Capacity	Horse Power	Year
2.5 D-4D (KUN15, KUN35)	2494 CCM	144 HP	01/2010 - 05/2015
2.5 D 4WD (KUN25)	2494 CCM	102 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R)	2494 CCM	120 HP	06/2006 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	171 HP	08/2005 - 09/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	163 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25)	2494 CCM	144 HP	12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_)	2494 CCM	128 HP	11/2004 - 12/2005

The Apec BCY1543 Wheel Brake Cylinder is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records 6 thread size, 22 mm piston diameter, grey Cast Iron construction, and rear axle fitting position. Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Wheel Brake Cylinder

Thread Size : 6

Distance of mounting bores [mm] : 38

Piston Diameter [mm] : 22

Material : Grey Cast Iron

Article number of recommended accessories : BBS3

Article number of recommended accessories : BSC1

Quantity : 1

Fitting Position : Rear Axle

Apec BCY1543 Wheel Brake Cylinder
