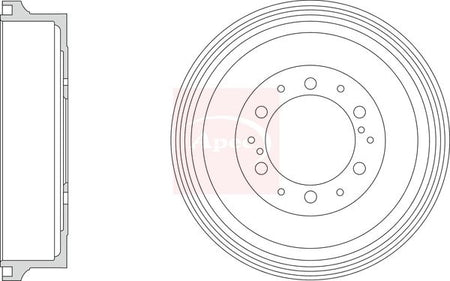

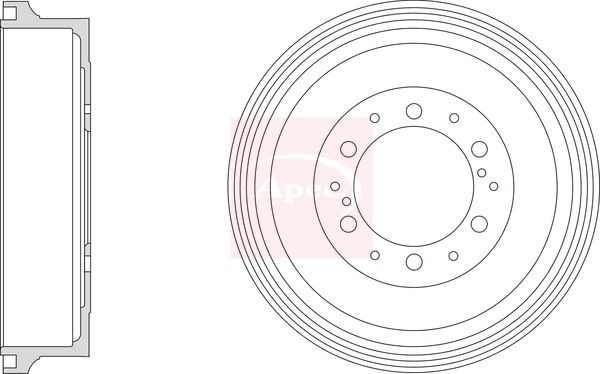

Apec DRM9212 Brake Drum - 1
Apec DRM9212 Brake Drum - 1
APEC

Apec DRM9212 Brake Drum

SKU: DRM9212
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£62.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TOYOTA
HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)
Description Cylinder Capacity Horse Power Year
2.5 D 4WD (KUN25) 2494 CCM 102 HP 03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R) 2494 CCM 120 HP 06/2006 - 05/2015
3.0 D-4D 4WD (KUN26) 2982 CCM 171 HP 08/2005 - 09/2015
2.5 D-4D 4WD (KUN25) 2494 CCM 144 HP 12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_) 2494 CCM 128 HP 11/2004 - 12/2005
3.0 D-4D 4WD (KUN26) 2982 CCM 197 HP 05/2008 - 12/2012
3.0 D-4D 4WD (KUN26) 2982 CCM 169 HP 08/2005 - 05/2015
HILUX VII Platform/Chassis (_N1_, _N2_)
Description Cylinder Capacity Horse Power Year
3.0 D 4WD (KUN26) 2982 CCM 171 HP From 02/2005
HILUX VIII Platform/Chassis (_N1_)
Description Cylinder Capacity Horse Power Year
2.4 D 4WD (GUN125_, GUN125R) 2393 CCM 150 HP From 07/2015
2.4 D (GUN112_, GUN122_, GUN135_, GUN125_) 2393 CCM 150 HP From 07/2015
HILUX VIII Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... 2393 CCM 150 HP From 05/2015
2.4 D 4WD (GUN125_, GUN125R) 2393 CCM 150 HP From 05/2015
2.8 D-4D (GUN123_, GUN136_, GUN136) 2755 CCM 177 HP From 05/2015
2.8 D-4D 4WD (GUN126_, GUN126R) 2755 CCM 177 HP From 05/2015
2.4 D 4WD (GUN125) 2393 CCM 170 HP From 10/2018
2.8 TD 4WD (GUN126) 2755 CCM 204 HP From 06/2020
2.8 GD-6 48V MHEV 4WD 2755 CCM 204 HP From 03/2024

The Apec DRM9212 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 108 mm centering diameter, 295 mm inner brake drum diameter, 345 mm outer brake drum diameter, and 6 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Supplementary Article/Supplementary Info 2 : without wheel bearing
Bolt Hole Circle Ø [mm] : 140
Centering Diameter [mm] : 108
Total brake drum height [mm] : 76
Inner brake drum height [mm] : 67
Inner brake drum diameter [mm] : 295
Outer brake drum diameter [mm] : 345
Number of Holes : 6
  • Vendor APEC
  • SKU DRM9212
  • Barcode 5028906120528
  • TOYOTA : 424310K120 424310K130 424310K250
  • APEC : BDR9049
  • BLUE PRINT : ADT34719
  • BORG & BECK : BBR7251
  • BOSCH : 0 986 477 297
  • DELPHI : BF537
  • HELLA : 8DT 355 303-141
  • MINTEX : MBD403
  • NAPA : NDR1018
  • National : NDR357
  • TEXTAR : 94038800
  • TRW : DB7036
