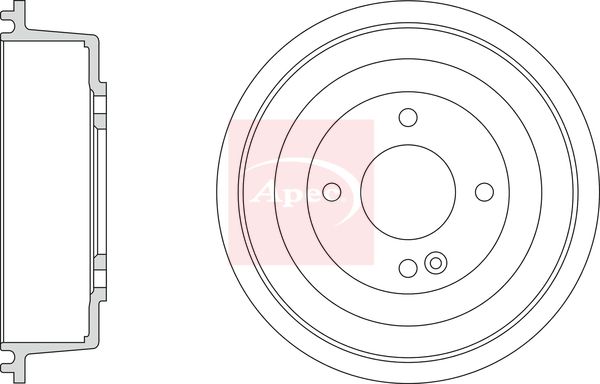

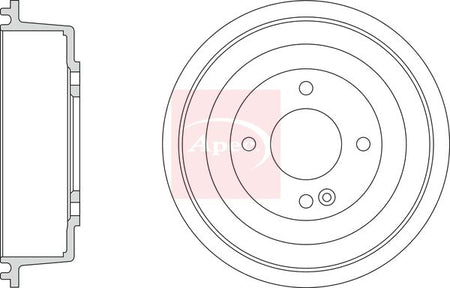

Apec DRM9220 Brake Drum
Your selected vehicle
Regular price
£30.83
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Apec DRM9220 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 13 mm wheel bolt bore diameter, 63 mm centering diameter, 203 mm inner brake drum diameter, and 244 mm outer brake drum diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Drum
Supplementary Article/Supplementary Info 2 :
without ABS sensor ring
Supplementary Article/Supplementary Info 2 :
without wheel bearing
Bolt Hole Circle Ø [mm] :
100
Wheel Bolt Bore Diameter [mm] :
13
Centering Diameter [mm] :
63
Total brake drum height [mm] :
53
Inner brake drum height [mm] :
37
Inner brake drum diameter [mm] :
203
Outer brake drum diameter [mm] :
244
Number of Holes :
4
- Vendor APEC
- SKU DRM9220
- KIA : 58411G6000
- DELPHI : BF633
- MINTEX : MBD429
- TEXTAR : 94048100
