Apec DRM9224 Brake Drum - 1
Apec DRM9224 Brake Drum - 1
APEC

Apec DRM9224 Brake Drum

SKU: DRM9224
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£39.47 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
NV200 Van
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20N, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20N, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (VM20, M20N, M20, M20L, M20M) 1598 CCM 110 HP From 02/2010
1.5 dCi 85 (M20, M20N, M20M) 1461 CCM 86 HP From 02/2010
NV200 / EVALIA Bus
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20M) 1461 CCM 110 HP From 04/2011
1.5 dCi 85 (M20, M20M, M20K, M20KK) 1461 CCM 86 HP From 07/2010

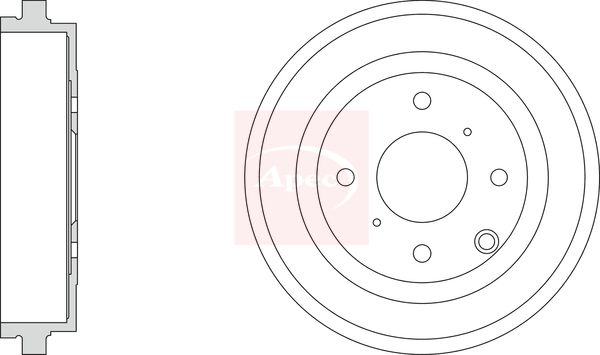

The Apec DRM9224 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 68 mm centering diameter, 229 mm inner brake drum diameter, 265 mm outer brake drum diameter, and 4 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Supplementary Article/Supplementary Info 2 : without wheel bearing
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Total brake drum height [mm] : 67
Inner brake drum height [mm] : 57
Inner brake drum diameter [mm] : 229
Outer brake drum diameter [mm] : 265
Number of Holes : 4
  • Vendor APEC
  • SKU DRM9224
  • Barcode 5028906149444
  • NISSAN : 432063LG0A 43206JX00A
  • BLUE PRINT : ADBP470052
  • BORG & BECK : BBR7266
  • DELPHI : BF616
  • FEBI BILSTEIN : 198444
  • HELLA : 8DT 355 303-231
  • MINTEX : MBD412
  • National : NDR365
  • TEXTAR : 94046400
