APEC

Apec DRM9968 Brake Drum

SKU: DRM9968

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£73.32 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FIAT

FULLBACK Pickup (502_, 503_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D 4x4 (KT0T)	2442 CCM	154 HP	From 04/2016
2.4 D 4x4 (KT0T)	2442 CCM	181 HP	From 04/2016
2.4 D 4x4 (KT0T)	2442 CCM	150 HP	From 04/2016

MITSUBISHI

L200 / TRITON (KA_T, KB_T)

Description	Cylinder Capacity	Horse Power	Year
2.5 DI-D (KA4T)	2477 CCM	167 HP	08/2007 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	136 HP	11/2005 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	167 HP	10/2007 - 12/2015
2.5 DI-D (KA4T)	2477 CCM	136 HP	11/2005 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	178 HP	04/2010 - 12/2015
2.5 DI-D (KA4T)	2477 CCM	178 HP	01/2010 - 12/2015

L200 / TRITON (KJ_, KK_, KL_)

Description	Cylinder Capacity	Horse Power	Year
2.4 DI-D 4WD (KL1T)	2442 CCM	181 HP	From 11/2014
2.4 DI-D 4WD (KJ0T)	2442 CCM	154 HP	From 09/2015
2.5 DI-D 4WD	2477 CCM	136 HP	From 11/2014
2.2 DI-D 4WD	2268 CCM	150 HP	From 07/2019

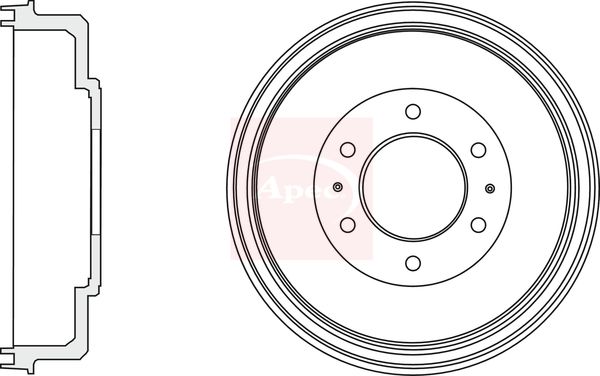

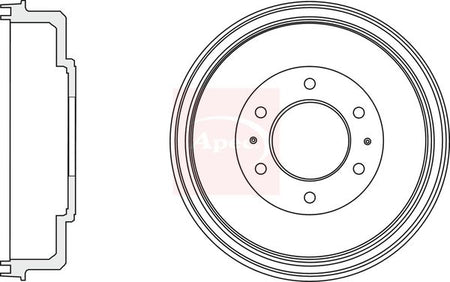

The Apec DRM9968 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records without wheel bearing, 295 mm inner brake drum diameter, 343 mm outer brake drum diameter, and 6 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Supplementary Article/Supplementary Info 2 : without wheel bearing

Total brake drum height [mm] : 91

Inner brake drum height [mm] : 73

Inner brake drum diameter [mm] : 295

Outer brake drum diameter [mm] : 343

Number of Holes : 6

Apec DRM9968 Brake Drum
