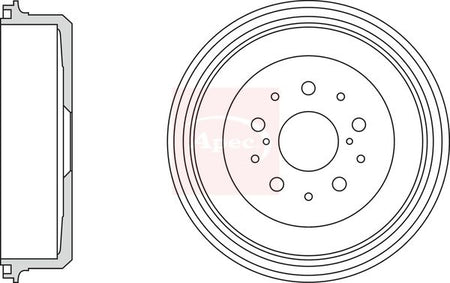

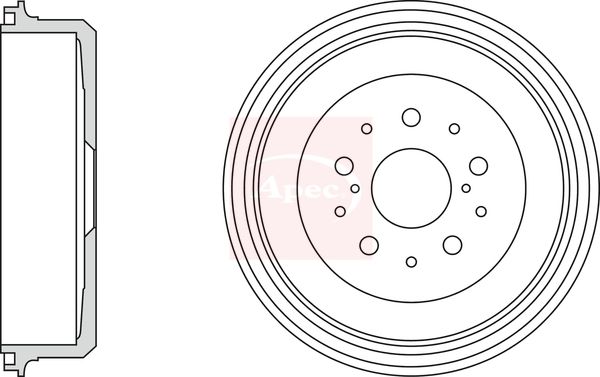

Apec DRM9997 Brake Drum - 1
Apec DRM9997 Brake Drum - 1
APEC

Apec DRM9997 Brake Drum

SKU: DRM9997
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£40.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KUN15, KUN35) 2494 CCM 144 HP 01/2010 - 05/2015
2.5 D-4D (KUN15_, KUN15R) 2494 CCM 120 HP 06/2006 - 05/2015
2.5 D-4D (KUN15, KUN10) 2494 CCM 102 HP 03/2005 - 05/2015
2.5 D-4D (KUN15) 2494 CCM 88 HP 08/2005 - 10/2006

The Apec DRM9997 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records without wheel bearing, 254 mm inner brake drum diameter, 303 mm outer brake drum diameter, and 5 mounting holes. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Supplementary Article/Supplementary Info 2 : without wheel bearing
Total brake drum height [mm] : 73
Inner brake drum height [mm] : 63
Inner brake drum diameter [mm] : 254
Outer brake drum diameter [mm] : 303
Number of Holes : 5
  • Vendor APEC
  • SKU DRM9997
  • Barcode 5028906114053
  • TOYOTA : 424310K080 424310K090 424310K220
  • BLUE PRINT : ADT34720
  • BORG & BECK : BBR7227
  • HELLA : 8DT 355 302-511
  • MINTEX : MBD361
  • TEXTAR : 94038600
