Apec DSK171 Brake Disc - 1
Apec DSK171 Brake Disc - 1
APEC

Apec DSK171 Brake Disc

SKU: DSK171
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£17.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
XANTIA (X1_, X2_)
Description Cylinder Capacity Horse Power Year
1.6 i 1580 CCM 88 HP 03/1993 - 03/2001
1.8 i 1761 CCM 101 HP 03/1993 - 01/1998
2.0 i 1998 CCM 121 HP 03/1993 - 04/2003
2.0 i 16V 1998 CCM 152 HP 03/1993 - 01/1998
1.9 Turbo D 1905 CCM 90 HP 05/1993 - 04/2003
2.0 i 16V 1998 CCM 150 HP 06/1994 - 01/1998
1.9 D 1905 CCM 69 HP 06/1994 - 01/1998
2.0 Turbo 1998 CCM 147 HP 06/1995 - 04/2003
1.8 i 16V 1761 CCM 110 HP 06/1995 - 12/2001
2.0 i 16V 1998 CCM 132 HP 06/1995 - 04/2003
2.1 Turbo D 12V 2088 CCM 109 HP 06/1995 - 02/1999
1.9 SD 1905 CCM 75 HP 02/1996 - 04/2003
3.0 i 24V 2946 CCM 190 HP 01/1997 - 04/2003
XANTIA Estate (X1_, X2_)
Description Cylinder Capacity Horse Power Year
2.0 Turbo 1998 CCM 147 HP 06/1995 - 04/2003

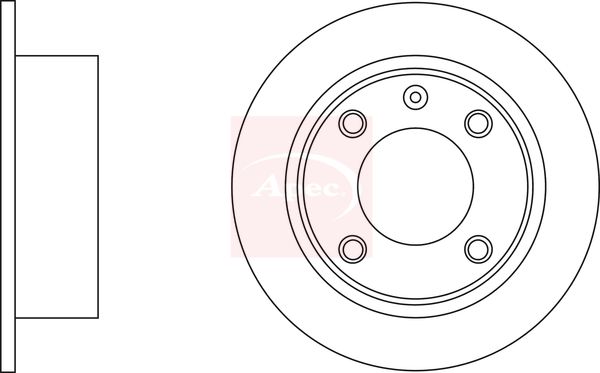

The Apec DSK171 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 224 mm outer diameter, 9 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 224
Brake Disc Thickness [mm] : 9
Height [mm] : 57
Bolt Hole Circle Ø [mm] : 108
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 71
Number of Holes : 4
Test Mark : 90R-02C0355/1422
  • Vendor APEC
  • SKU DSK171
  • Barcode 5028906070724
  • CITROËN : 95667811
  • BORG & BECK : BBD4975
  • BOSCH : 0 986 478 604
  • BREMBO : 08.5729.14
  • DELPHI : BG2691
  • HELLA : 8DD 355 103-011
  • MEYLE : 40-15 523 1001
  • MINTEX : MDC802
  • National : NBD488
  • TEXTAR : 92059700
  • TRW : DF1122
  • VALEO : 186586
  • VALEO : 673552
