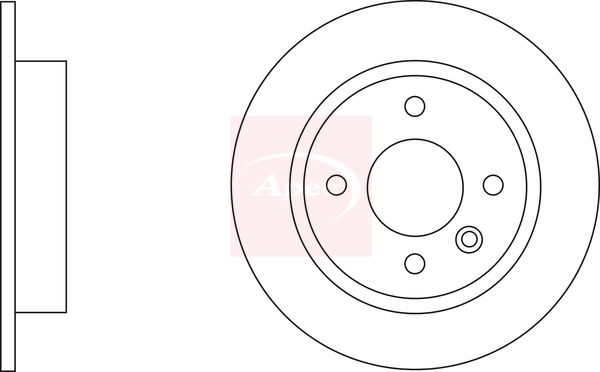

Apec DSK174 Brake Disc - 1

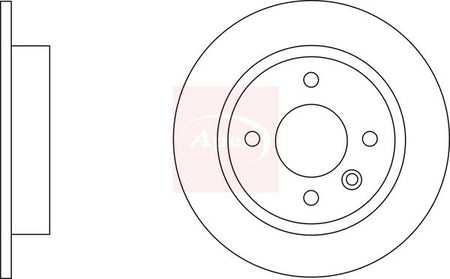

Apec DSK174 Brake Disc - 1
APEC

Apec DSK174 Brake Disc

SKU: DSK174
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£20.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
440 (445)
Description Cylinder Capacity Horse Power Year
1.7 1721 CCM 106 HP 09/1988 - 12/1996
1.7 Turbo 1721 CCM 120 HP 08/1988 - 07/1996
1.7 1721 CCM 87 HP 09/1988 - 12/1996
1.7 1721 CCM 102 HP 08/1989 - 12/1996
1.8 1794 CCM 90 HP 08/1991 - 07/1996
2.0 1998 CCM 110 HP 08/1992 - 07/1995
2.0 1998 CCM 109 HP 08/1993 - 07/1996
1.9 Turbo-Diesel 1870 CCM 90 HP 07/1994 - 12/1996
1.6 1596 CCM 83 HP 09/1988 - 12/1996
1.8 1794 CCM 90 HP 09/1995 - 12/1996
1.7 Turbo 1721 CCM 122 HP 01/1991 - 12/1996
1.6 1596 CCM 93 HP 09/1991 - 08/1993
460 (464)
Description Cylinder Capacity Horse Power Year
1.7 Turbo 1721 CCM 120 HP 08/1989 - 07/1996
1.7 1721 CCM 102 HP 08/1989 - 07/1992
1.8 1794 CCM 90 HP 08/1991 - 07/1996
2.0 1998 CCM 110 HP 08/1992 - 07/1995
1.9 Turbo-Diesel 1870 CCM 90 HP 07/1994 - 07/1996
1.7 Turbo 1721 CCM 122 HP 01/1991 - 07/1996
1.7 1721 CCM 87 HP 09/1988 - 07/1996
1.7 1721 CCM 109 HP 08/1989 - 07/1992
480 (482)
Description Cylinder Capacity Horse Power Year
1.7 1721 CCM 109 HP 08/1986 - 07/1988
1.7 Turbo 1721 CCM 120 HP 08/1987 - 07/1996
1.7 1721 CCM 102 HP 08/1989 - 07/1996
1.7 Turbo 1721 CCM 122 HP 01/1991 - 07/1996
2.0 1998 CCM 110 HP 08/1992 - 09/1995

The Apec DSK174 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 228 mm outer diameter, 9 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 228
Brake Disc Thickness [mm] : 9
Height [mm] : 39
Bolt Hole Circle Ø [mm] : 100
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 60
Number of Holes : 4
Test Mark : 90R-02C0355/1010
  • Vendor APEC
  • SKU DSK174
  • Barcode 5028906070755
  • VOLVO : 3430032 34300327 3430037 3432616 34326165 3432618 3450386 34503862
  • BORG & BECK : BBD5039
  • BORG & BECK : BBD5041
  • BORG & BECK : BBD5859S
  • BREMBO : 08.5237.10
  • DELPHI : BG2732
  • HELLA : 8DD 355 105-441
  • MINTEX : MDC792
  • National : NBD584
  • TEXTAR : 92082800
  • TRW : DF4301
  • VALEO : 186311
