Apec DSK2047 Brake Disc

SKU: DSK2047
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£13.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
CHARADE VI (L251, L250_, L260_)
Description Cylinder Capacity Horse Power Year
1.0 989 CCM 58 HP From 05/2003
0.7 659 CCM 48 HP From 03/2003
CUORE Mk VI (L7_)
Description Cylinder Capacity Horse Power Year
1.0 989 CCM 54 HP 11/1998 - 09/2000
1.0 DVVT (L700S) 989 CCM 58 HP 10/2000 - 02/2003
1.0 989 CCM 56 HP 11/1998 - 12/2002
CUORE VII (L275_, L285_, L276_)
Description Cylinder Capacity Horse Power Year
1.0 (L276) 998 CCM 70 HP From 04/2007
0.7 (L275S) 658 CCM 58 HP From 12/2006
MIRA GINO I
Description Cylinder Capacity Horse Power Year
0.8 847 CCM 42 HP 01/1999 - 09/2003
OPTI I (L300, L310)
Description Cylinder Capacity Horse Power Year
0.7 4WD 659 CCM 56 HP 05/1992 - 10/1998
TREVIS
Description Cylinder Capacity Horse Power Year
1.0 989 CCM 58 HP From 06/2006
PERODUA
KELISA
Description Cylinder Capacity Horse Power Year
1.0 DVVT (L701RS) 989 CCM 56 HP 02/2002 - 06/2007
1.0 (L701RS) 989 CCM 54 HP 02/2002 - 12/2009

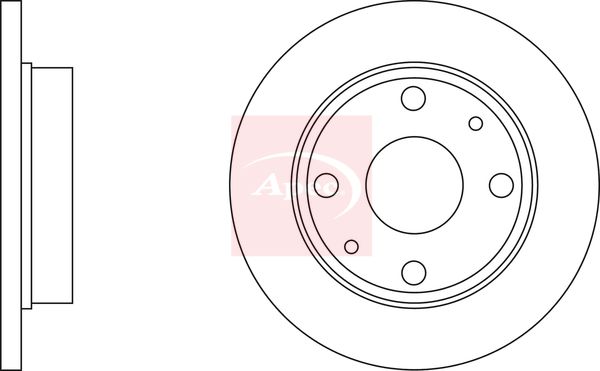

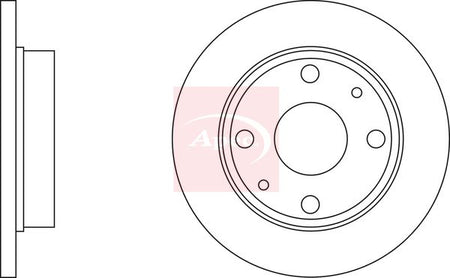

The Apec DSK2047 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 211 mm outer diameter, 11 mm brake disc thickness, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 211
Brake Disc Thickness [mm] : 11
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 55
Number of Holes : 4
  • Vendor APEC
  • SKU DSK2047
  • Barcode 5028906079475
  • DAIHATSU : 4351297204 4351297204000 4351297206 4351297206000 4351297207 4351297207000 43512B2060 43512B2100 43512B2130
  • SUBARU : 43512B2130
  • TOYOTA : 43512B2100
  • PERODUA : 4351287524 4351297203
  • BLUE PRINT : ADD64320
  • BORG & BECK : BBD4360
  • BOSCH : 0 986 479 119
  • BREMBO : 08.9138.10
  • DELPHI : BG3561
  • FEBI BILSTEIN : 28322
  • HELLA : 8DD 355 107-291
  • MINTEX : MDC1471
  • National : NBD1038
  • TEXTAR : 92103700
  • TRW : DF4070
