Apec DSK2166 Brake Disc - 1
Apec DSK2166 Brake Disc - 1
APEC

Apec DSK2166 Brake Disc

SKU: DSK2166
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£43.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
GALAXY I (WGR)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 03/1995 - 05/2006
1.9 TDI 1896 CCM 115 HP 04/2000 - 05/2006
2.3 16V 2295 CCM 140 HP 09/2001 - 05/2006
1.9 TDI 1896 CCM 130 HP 02/2003 - 05/2006
1.9 TDI 1896 CCM 150 HP 05/2005 - 05/2006
GALAXY MK I VAN (WGR)
Description Cylinder Capacity Horse Power Year
2.3 2295 CCM 140 HP 11/2002 - 03/2006
1.9 TDi 1896 CCM 90 HP 09/1996 - 03/2006
1.9 TDi 1896 CCM 116 HP 05/2000 - 03/2006
SEAT
ALHAMBRA VAN (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 116 HP 03/1996 - 03/2010
TDI 1896 CCM 90 HP 03/1996 - 03/2010
TDI 1896 CCM 116 HP 06/2000 - 03/2010
1.9 TDI 1896 CCM 131 HP 11/2002 - 11/2008
ALHAMBRA (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
2.0 i 1984 CCM 115 HP 04/1996 - 03/2010
1.9 TDI 1896 CCM 90 HP 04/1996 - 03/2010
1.8 T 20V 1781 CCM 150 HP 10/1997 - 03/2010
1.9 TDI 1896 CCM 115 HP 06/2000 - 03/2010
1.9 TDI 1896 CCM 131 HP 11/2002 - 11/2008
1.9 TDI 1896 CCM 150 HP 05/2005 - 05/2007
2.0 TDI 1968 CCM 140 HP 11/2005 - 03/2010
VW
SHARAN (7M8, 7M9, 7M6)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 09/1995 - 03/2010
2.0 1984 CCM 115 HP 09/1995 - 03/2010
2.0 TDI 1968 CCM 136 HP 11/2005 - 03/2010
1.9 TDI 1896 CCM 115 HP 04/2000 - 03/2010
1.9 TDI 1896 CCM 130 HP 11/2002 - 03/2010
1.9 TDI 1896 CCM 150 HP 06/2005 - 03/2010
2.0 TDI 1968 CCM 140 HP 11/2005 - 03/2010
2.0 LPG 1984 CCM 115 HP 04/2006 - 03/2010
SHARAN Box Body/MPV (7M_)
Description Cylinder Capacity Horse Power Year
2.0 (7M8, 7M9) 1984 CCM 116 HP 09/1996 - 07/2002
1.9 TDI (7M8, 7M9) 1896 CCM 90 HP 09/1996 - 05/2003
1.9 TDI (7M6, 7M9) 1896 CCM 116 HP 04/2000 - 03/2010
1.9 TDI (7M9) 1896 CCM 131 HP 11/2002 - 05/2003
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
2.8 2792 CCM 140 HP 05/1996 - 05/2000
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 151 HP 09/2000 - 04/2003
2.8 VR6 2792 CCM 204 HP 06/2000 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.8 VR 6 2792 CCM 140 HP 11/1995 - 04/2000
2.5 TDI 2461 CCM 151 HP 05/1998 - 04/2003

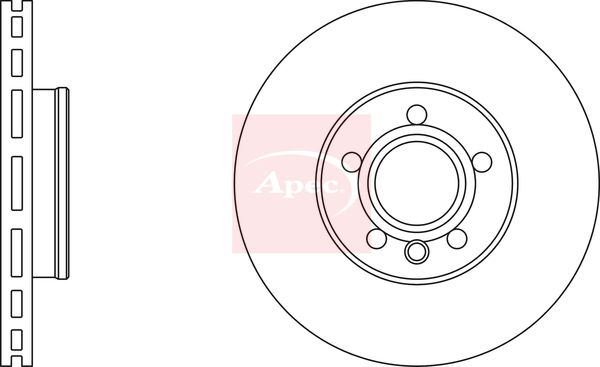

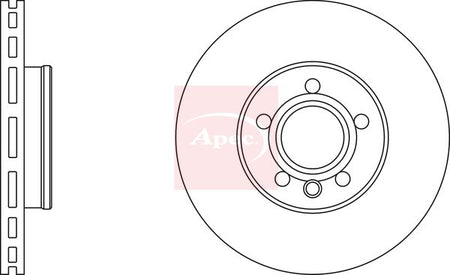

The Apec DSK2166 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 26 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 26
Height [mm] : 56
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0703/2561
  • Vendor APEC
  • SKU DSK2166
  • Barcode 5028906085667
  • FORD : 1141782
  • SEAT : 7D0615301B 7M3615301A
  • VW : 7D0615301 7D0615301B 7M3615301A
  • APEC : SDK6068
  • BORG & BECK : BBD4250
  • BOSCH : 0 986 479 037
  • DELPHI : BG3696
  • DELPHI : BG3718
  • Fahren : FBD6068
  • FEBI BILSTEIN : 26118
  • HELLA : 8DD 355 108-081
  • MEYLE : 115 521 1086
  • MEYLE : 183 521 1086/PD
  • MINTEX : MDC1542C
  • NAPA : NBD5181
  • National : NBD1156
  • SKF : VKBD 80322 V1
  • TEXTAR : 92109803
  • VALEO : 197239
  • VALEO : 672545
