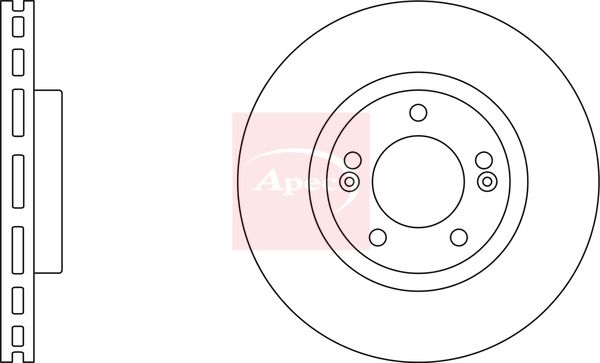

Apec DSK2190 Brake Disc - 1

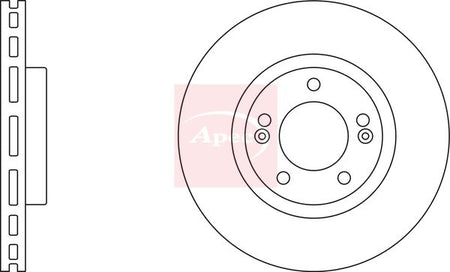

Apec DSK2190 Brake Disc - 1
APEC

Apec DSK2190 Brake Disc

SKU: DSK2190
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£40.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
SANTA FÉ I (SM)
Description Cylinder Capacity Horse Power Year
2.0 1997 CCM 135 HP 08/2001 - 03/2006
TRAJET (FO)
Description Cylinder Capacity Horse Power Year
2.0 1997 CCM 136 HP 06/2000 - 09/2004
2.7 V6 2656 CCM 173 HP 09/2000 - 07/2008
2.0 CRDi 1991 CCM 113 HP 04/2001 - 07/2008
2.0 1975 CCM 140 HP 01/2004 - 07/2008
2.0 1975 CCM 141 HP 11/2003 - 07/2008

The Apec DSK2190 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 276 mm outer diameter, 26 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 276
Brake Disc Thickness [mm] : 26
Height [mm] : 47
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 69
Number of Holes : 5
Test Mark : 90R-02C0301/0254
  • Vendor APEC
  • SKU DSK2190
  • Barcode 5028906085902
  • HYUNDAI : 5171222600 5171226000 517123B000
  • BLUE PRINT : ADG04344
  • BORG & BECK : BBD4338
  • BOSCH : 0 986 479 124
  • DELPHI : BG3721
  • HELLA : 8DD 355 110-951
  • MEYLE : 37-15 521 0010
  • MINTEX : MDC1485
  • National : NBD1112
  • SKF : VKBD 80625 V2
  • TEXTAR : 92131000
  • TRW : DF4291
  • VALEO : 197172
  • VALEO : 673486
