Apec DSK2225 Brake Disc - 1
Apec DSK2225 Brake Disc - 1
APEC

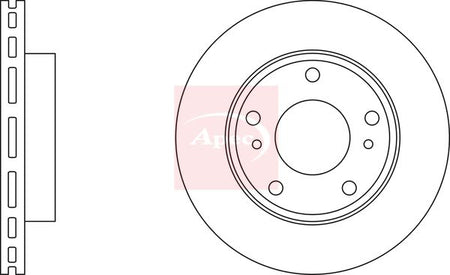

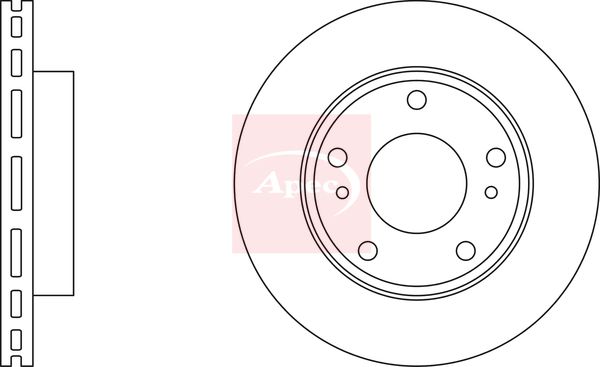

Apec DSK2225 Brake Disc

SKU: DSK2225
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£40.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
LARGO (C23)
Description Cylinder Capacity Horse Power Year
2.3 D 2283 CCM 75 HP 01/1995 - 09/2001
2.0 1998 CCM 126 HP 11/1992 - 09/2001
1.6 1597 CCM 97 HP 02/1993 - 09/2001
2.0 D 1952 CCM 67 HP 06/1991 - 09/2001
2.0 4WD (KBNC23) 1998 CCM 130 HP 11/1992 - 09/2001
SERENA VAN (C23)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 97 HP 02/1993 - 06/2001
2.0 1952 CCM 67 HP 07/1992 - 09/1994
2.3 2283 CCM 75 HP 10/1994 - 09/2001
VANETTE CARGO Van (HC 23)
Description Cylinder Capacity Horse Power Year
2.3 D 2283 CCM 75 HP 09/1994 - 05/2002

The Apec DSK2225 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 250 mm outer diameter, 22 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 250
Brake Disc Thickness [mm] : 22
Height [mm] : 50
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C-0722/2586
  • Vendor APEC
  • SKU DSK2225
  • Barcode 5028906086251
  • NISSAN : 402069C000 402069C001
  • BLUE PRINT : ADN14394
  • BORG & BECK : BBD4445
  • BREMBO : 09.A136.10
  • DELPHI : BG3130
  • MINTEX : MDC1853
  • National : NBD1501
  • TEXTAR : 92129800
  • TRW : DF4092
