Apec DSK2231 Brake Disc

SKU: DSK2231
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£24.59 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 122 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 101 HP 02/2007 - 09/2010
1.6 1596 CCM 100 HP 02/2007 - 09/2010
1.8 1798 CCM 125 HP 02/2007 - 09/2010
1.8 Flexifuel 1798 CCM 125 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 90 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 109 HP 02/2007 - 09/2010
1.6 1596 CCM 116 HP 04/2007 - 09/2010
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 109 HP 10/2003 - 03/2007
1.6 1596 CCM 100 HP 10/2003 - 03/2007
1.8 1798 CCM 125 HP 04/2004 - 03/2007
1.6 Ti 1596 CCM 115 HP 08/2004 - 03/2007
1.6 TDCi 1560 CCM 90 HP 02/2005 - 03/2007
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 03/2007
1.8 1798 CCM 122 HP 09/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Estate Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 101 HP 11/2004 - 07/2011
1.6 TDCi 1560 CCM 109 HP 07/2004 - 07/2011
1.6 Ti-VCT 1596 CCM 116 HP 09/2005 - 07/2011
1.6 1596 CCM 101 HP 09/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 09/2005 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 110 HP 12/2007 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 04/2005 - 09/2012
1.4 1388 CCM 80 HP 04/2005 - 09/2012
1.6 1596 CCM 100 HP 04/2005 - 09/2012
1.6 Ti 1596 CCM 115 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2006 - 09/2010

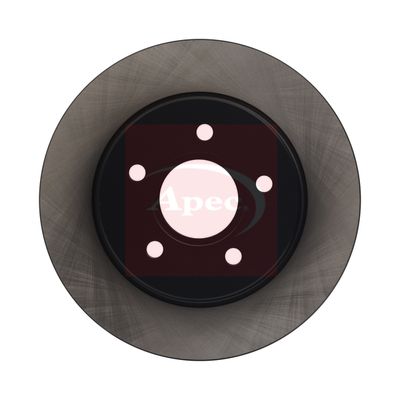

The Apec DSK2231 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 265 mm outer diameter, 11 mm brake disc thickness, and 63 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 265
Brake Disc Thickness [mm] : 11
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 63
Number of Holes : 5
Test Mark : 90R-02C01195/25375
  • Vendor APEC
  • SKU DSK2231
  • Barcode 5028906086312
  • APEC : SDK6119
  • BLUE PRINT : ADBP430010
  • BLUE PRINT : ADM543115
  • BORG & BECK : BBD4476
  • BOSCH : 0 986 479 169
  • BOSCH : 0 986 479 B80
  • DELPHI : BG3896
  • DELPHI : BG3896C
  • Fahren : FBD6119
  • FEBI BILSTEIN : 175209
  • FEBI BILSTEIN : 24619
  • HELLA : 8DD 355 111-381
  • MEYLE : 715 523 0020
  • MEYLE : 715 523 0020/PD
  • MINTEX : MDC1642
  • MINTEX : MDC1642C
  • NAPA : NBD5385
  • National : NBD1297
  • SKF : VKBD 90417 S2
  • TEXTAR : 92133700
  • TEXTAR : 92133703
  • TRW : DF4372
  • VALEO : 186842
