Apec DSK2233 Brake Disc - 1
Apec DSK2233 Brake Disc - 1
APEC

Apec DSK2233 Brake Disc

SKU: DSK2233
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£70.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
SCÉNIC I MPV (JA0/1_, FA0_)
Description Cylinder Capacity Horse Power Year
1.4 16V (JA0D, JA1H, Ja0W, JA10) 1390 CCM 95 HP 09/1999 - 08/2003
2.0 16V (JA1D, JA17) 1998 CCM 140 HP 09/1999 - 08/2003
1.9 dTi (JA0N) 1870 CCM 98 HP 09/1999 - 08/2003
2.0 16V (JA1B, JA1D, JA0C) 1998 CCM 139 HP 07/2000 - 08/2003
1.9 dCi (JA05, JA1F) 1870 CCM 102 HP 09/1999 - 08/2003
1.9 dTi (JA1U) 1870 CCM 80 HP 02/2001 - 08/2003
1.8 16V (JA12, JA1R, JA1M, JA1A) 1783 CCM 115 HP 01/2001 - 08/2003
1.6 1598 CCM 102 HP 03/2001 - 08/2003
1.6 (JA00) 1598 CCM 110 HP 06/2001 - 09/2003
1.6 BiFuel 1598 CCM 102 HP 03/2001 - 08/2003
1.6 BiFuel (JA04) 1598 CCM 107 HP 09/1999 - 04/2001
1.6 (JA00, JA16, JA15, JA19, JA1V, JA2B, JA2C, JA0B,... 1598 CCM 107 HP 09/1999 - 09/2003

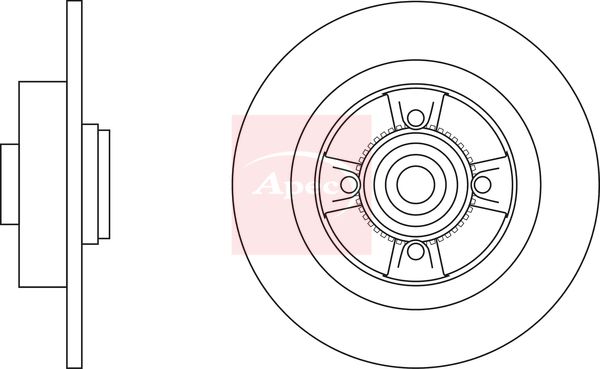

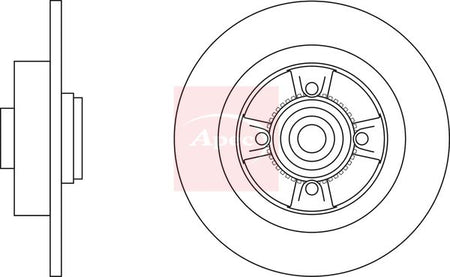

The Apec DSK2233 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 274 mm outer diameter, 11 mm brake disc thickness, and 25 mm stub axle diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 11
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Supplementary Article/Supplementary Info 2 : with wheel bearing
Height [mm] : 82
Stub Axle Diameter [mm] : 25
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 62
Number of Holes : 4
  • Vendor APEC
  • SKU DSK2233
  • Barcode 5028906086336
  • RENAULT : 7701206327 7701206328 8671018263
  • APEC : SDK6374
  • BLUE PRINT : ADR164324
  • BORG & BECK : BBD5721S
  • BOSCH : 0 986 479 108
  • BOSCH : 0 986 479 270
  • BREMBO : 08.A238.47
  • DELPHI : BG9029RS
  • DELPHI : BG9029RSC
  • FEBI BILSTEIN : 24290
  • HELLA : 8DD 355 112-211
  • MEYLE : 16-15 523 0003
  • MEYLE : 16-15 523 4113
  • MINTEX : MDC1566
  • NAPA : NBD5220
  • National : NBD1181
  • TEXTAR : 92141403
  • TRW : DF4272
  • TRW : DF4272BS
  • TRW : DF4414BS
  • TRW : DF4690BS
  • VALEO : 197311
  • VALEO : 675401
