Apec DSK2237 Brake Disc

SKU: DSK2237
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£24.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
IGNIS I (FH)
Description Cylinder Capacity Horse Power Year
1.3 (HV51, HX51, RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.3 4WD (RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.5 Sport (RG415) 1490 CCM 109 HP 12/2003 - 12/2005

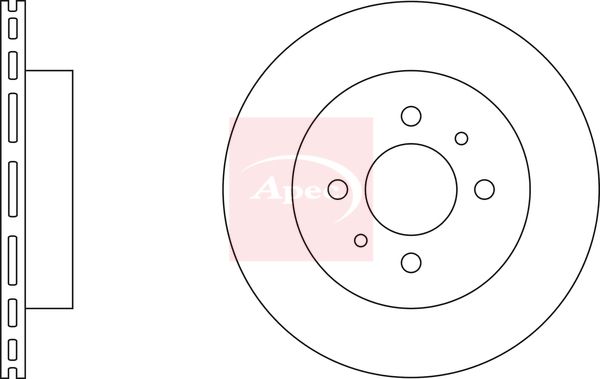

The Apec DSK2237 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 257 mm outer diameter, 17 mm brake disc thickness, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 257
Brake Disc Thickness [mm] : 17
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 60
Number of Holes : 4
Test Mark : 90R-02C 01275/37305
  • Vendor APEC
  • SKU DSK2237
  • Barcode 5028906086374
  • SUZUKI : 5531180G00 5531180G01 5531180G02 5531180G03
  • APEC : SDK6378
  • BLUE PRINT : ADK84315
  • BORG & BECK : BBD4323
  • BOSCH : 0 986 478 984
  • BREMBO : 09.9599.10
  • DELPHI : BG3941
  • FEBI BILSTEIN : 108565
  • HELLA : 8DD 355 110-971
  • MEYLE : 33-15 521 0009
  • MINTEX : MDC1770
  • National : NBD1348
  • SKF : VKBD 80662 V2
  • TEXTAR : 92131200
  • TRW : DF4155
  • VALEO : 197064
