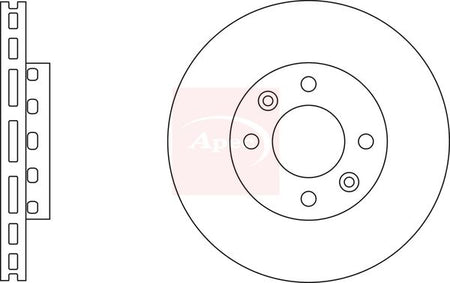

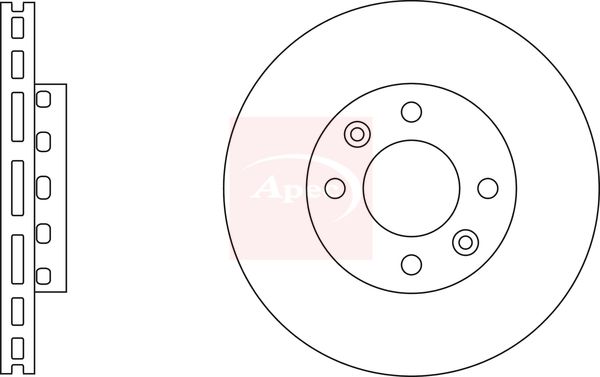

Apec DSK2268 Brake Disc - 1
Apec DSK2268 Brake Disc - 1
APEC

Apec DSK2268 Brake Disc

SKU: DSK2268
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£36.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

KIA
CARENS I MPV (FC, FJ)
Description Cylinder Capacity Horse Power Year
1.6 1594 CCM 105 HP 07/2002 - 08/2006
2.0 CRDi 1991 CCM 113 HP 07/2002 - 04/2006
2.0 CVVT 1975 CCM 139 HP 08/2004 - 05/2007
2.0 CRDi 1991 CCM 140 HP 11/2005 - 04/2006

The Apec DSK2268 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 26 mm brake disc thickness, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 26
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 72
Number of Holes : 4
Test Mark : 90R-02C01195/30055
  • Vendor APEC
  • SKU DSK2268
  • Barcode 5028906086688
  • KIA : 0K2FA33251 OK2FA33251
  • BLUE PRINT : ADG04372
  • BORG & BECK : BBD4429
  • BOSCH : 0 986 479 353
  • DELPHI : BG3800
  • HELLA : 8DD 355 111-021
  • MINTEX : MDC1603
  • National : NBD1226
  • SKF : VKBD 80387 V2
  • TEXTAR : 92131700
  • TRW : DF7266
  • VALEO : 673686
