Apec DSK2316 Brake Disc - 1
Apec DSK2316 Brake Disc - 1
APEC

Apec DSK2316 Brake Disc

SKU: DSK2316
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£35.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 78 HP 10/1999 - 04/2002
2.5 D 4x4 2499 CCM 78 HP 10/1999 - 04/2002
2.5 TD 2500 CCM 84 HP 04/2002 - 06/2006
2.5 TD 4x4 2500 CCM 84 HP 04/2002 - 06/2006
2.5 TDdi 2499 CCM 117 HP 04/2002 - 09/2005
2.5 TDdi 4x4 2499 CCM 117 HP 04/2002 - 09/2005
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
MAZDA
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 2499 CCM 83 HP 11/1999 - 12/2001
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 CDVi (UNY0W3) 2500 CCM 143 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

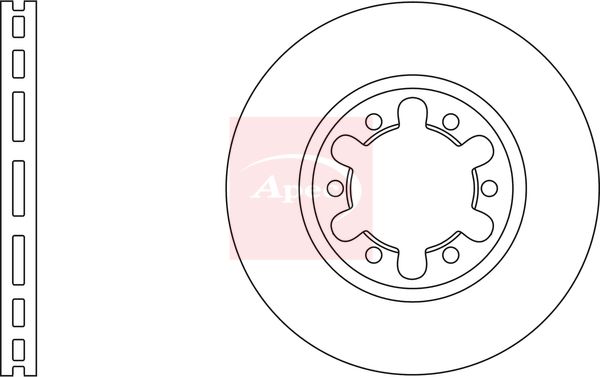

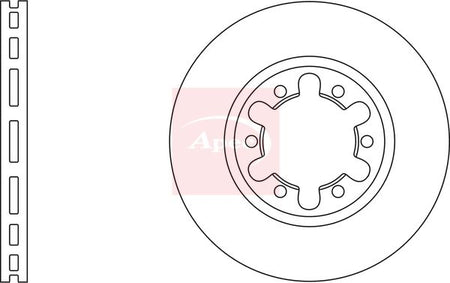

The Apec DSK2316 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 256 mm outer diameter, 24 mm brake disc thickness, and 86 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 24
Height [mm] : 24
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 86
Number of Holes : 6
Test Mark : 90R-02C 01275/30986
  • Vendor APEC
  • SKU DSK2316
  • Barcode 5028906087166
  • FORD : 3902826 4883102
  • MAZDA : SE2033251 UH7133251 UH8133251 UR6633251
  • BLUE PRINT : ADM54385
  • BLUE PRINT : ADM54390
  • BORG & BECK : BBD4648
  • BOSCH : 0 986 479 712
  • BREMBO : 09.A862.10
  • DELPHI : BG3559
  • FEBI BILSTEIN : 43968
  • FTE : 9072116
  • HELLA : 8DD 355 111-731
  • MINTEX : MDC2327
  • National : NBD1025
  • TEXTAR : 92236300
  • VALEO : 197731
