Apec DSK2317 Brake Disc - 1
Apec DSK2317 Brake Disc - 1
APEC

Apec DSK2317 Brake Disc

SKU: DSK2317
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£32.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
ECLIPSE Mk II (D3_A)
Description Cylinder Capacity Horse Power Year
2000 GS 16V (D32A) 1997 CCM 146 HP 12/1995 - 04/1999
2000 GT 16V 1997 CCM 214 HP 12/1995 - 04/1999
2.0 Turbo 4WD (D33A) 1997 CCM 214 HP 12/1995 - 04/1999
ECLIPSE Convertible
Description Cylinder Capacity Horse Power Year
2.0 1997 CCM 214 HP 09/1995 - 04/1999
ECLIPSE IV (DK_A)
Description Cylinder Capacity Horse Power Year
2.4 GS 2378 CCM 163 HP 04/2005 - 12/2011
LANCER VII (CS_A, CT_A)
Description Cylinder Capacity Horse Power Year
1.6 (CS3A) 1584 CCM 98 HP 09/2003 - 12/2013
2.0 (CS9A) 1997 CCM 135 HP 12/2003 - 12/2013
1.6 (CS3A) 1584 CCM 105 HP 06/2000 - 12/2007
LANCER VII Estate (CS_W, CT_W)
Description Cylinder Capacity Horse Power Year
1.6 1584 CCM 98 HP 09/2003 - 10/2008
2.0 (CS9W) 1997 CCM 135 HP 09/2003 - 12/2007
OUTLANDER I (CU_W)
Description Cylinder Capacity Horse Power Year
2.4 4WD (CU5W) 2378 CCM 160 HP 11/2003 - 09/2007
2.0 Turbo-R 4WD (CU2W) 1997 CCM 241 HP 01/2002 - 10/2006
2.4 HDD Mivec (CU5W) 2378 CCM 160 HP 03/2001 - 12/2006
SHOGUN PININ I (H6_W, H7_W)
Description Cylinder Capacity Horse Power Year
1.8 GDI (H66W, H76W) 1834 CCM 120 HP 10/1999 - 10/2001
2.0 GDI (H67W, H77W) 1999 CCM 129 HP 10/2000 - 06/2007
1.8 (H76W, H66W) 1834 CCM 114 HP 11/2001 - 06/2007
SPACE RUNNER (N6_W, N7_W)
Description Cylinder Capacity Horse Power Year
2.4 GDI (N64W) 2351 CCM 150 HP 08/1999 - 01/2003
2.4 GDI (N64W) 2351 CCM 147 HP 08/1999 - 08/2002

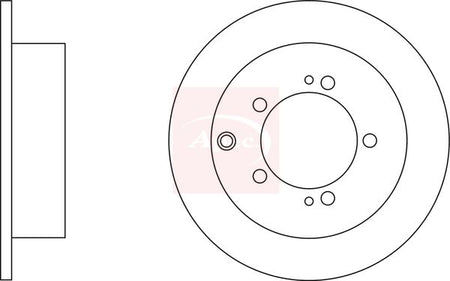

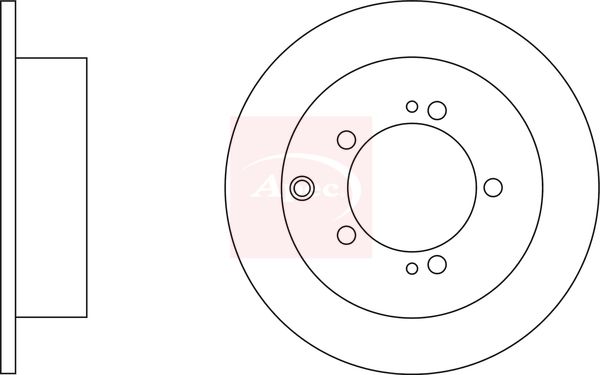

The Apec DSK2317 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 262 mm outer diameter, 10 mm brake disc thickness, and 90 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 262
Brake Disc Thickness [mm] : 10
Height [mm] : 60
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 90
Number of Holes : 5
Test Mark : 90R-02C01195/25833
  • Vendor APEC
  • SKU DSK2317
  • Barcode 5028906087173
  • MITSUBISHI : MB895200 MB928716 MR493489
  • BLUE PRINT : ADC44396
  • BORG & BECK : BBD4556
  • BORG & BECK : BBD4644
  • BOSCH : 0 986 479 512
  • BOSCH : 0 986 479 603
  • BREMBO : 08.8316.20
  • DELPHI : BG4037
  • FEBI BILSTEIN : 108526
  • FEBI BILSTEIN : 170808
  • HELLA : 8DD 355 118-661
  • MEYLE : 32-15 523 0016
  • MEYLE : 32-15 523 0016/PD
  • MINTEX : MDC2307
  • National : NBD1100
  • SKF : VKBD 90895 S2
  • SKF : VKBD 91178 S2
  • TEXTAR : 92136103
  • VALEO : 197603
