Apec DSK2320 Brake Disc - 1
Apec DSK2320 Brake Disc - 1
APEC

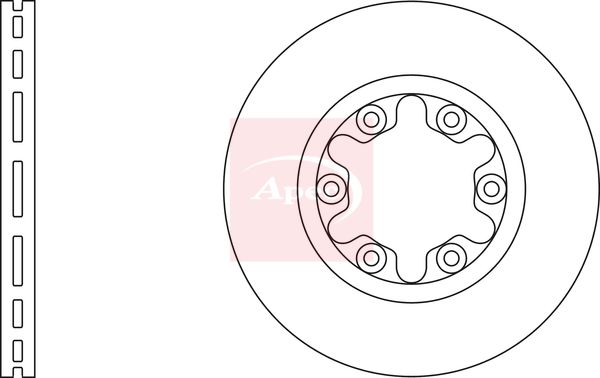

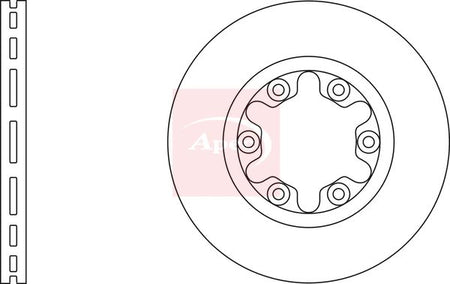

Apec DSK2320 Brake Disc

SKU: DSK2320
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£34.91 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 TD 4x4 2500 CCM 109 HP 10/1999 - 06/2006
MAZDA
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD 2499 CCM 109 HP 06/1999 - 07/2006
2.5 D 4WD 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 4WD 2499 CCM 83 HP 11/1999 - 12/2001

The Apec DSK2320 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 274 mm outer diameter, 24 mm brake disc thickness, and 93 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 24
Height [mm] : 24
Bolt Hole Circle Ø [mm] : 116
Centering Diameter [mm] : 93
Number of Holes : 6
Test Mark : 90R-02C0301/0264
  • Vendor APEC
  • SKU DSK2320
  • Barcode 5028906087203
  • FORD : 1497307 3902839
  • MAZDA : UH7433251 UN1333251 UN13633251
  • BLUE PRINT : ADM54366
  • BORG & BECK : BBD4647
  • BREMBO : 09.A860.10
  • DELPHI : BG3809
  • FEBI BILSTEIN : 44106
  • FTE : 9072783
  • HELLA : 8DD 355 111-741
  • MINTEX : MDC1412
  • National : NBD1026
  • National : NBD1194
  • SKF : VKBD 80733 V2
  • TEXTAR : 92136300
