Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Apec DSK2323 Brake Disc - 1
Apec DSK2323 Brake Disc - 1
APEC

Apec DSK2323 Brake Disc

SKU: DSK2323
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£85.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 84 HP 05/2007 - 12/2009
MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 02/2004 - 12/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ,
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 08/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 04/2004 - 11/2009
TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 02/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
3.2 V6 4motion 3189 CCM 235 HP 11/2003 - 12/2009
2.5 TDi 2461 CCM 163 HP 11/2003 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009
TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 02/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
VR6 3.2 4motion 3189 CCM 235 HP 11/2003 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009

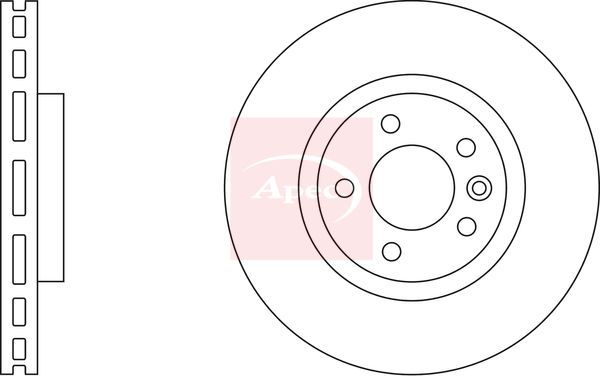

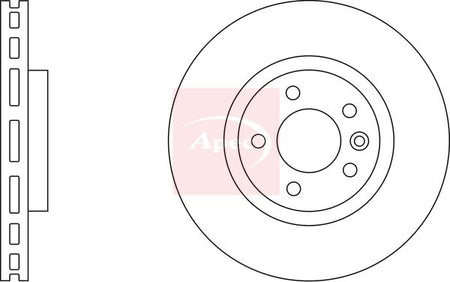

The Apec DSK2323 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 333 mm outer diameter, 32 mm brake disc thickness, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 333
Brake Disc Thickness [mm] : 32
Height [mm] : 55
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 76
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2323
  • Barcode 5028906087234
  • VW : 7H0615301E 7H0615301F
  • BORG & BECK : BBD5916S
  • BOSCH : 0 986 479 096
  • DELPHI : BG9892
  • FEBI BILSTEIN : 43996
  • HELLA : 8DD 355 109-681
  • MEYLE : 115 521 0038
  • MEYLE : 115 521 0038/PD
  • MINTEX : MDC1705
  • National : NBD1290
  • SKF : VKBD 81039 V1
  • TEXTAR : 92121305
  • TRW : DF4309S
  • VALEO : 672740
