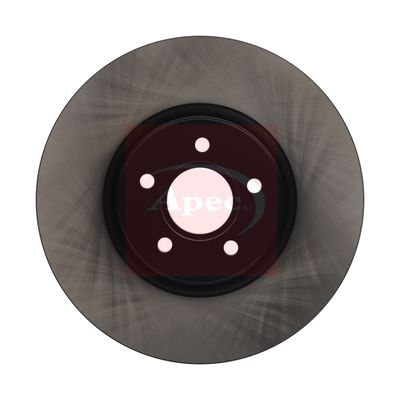

Apec DSK2344 Brake Disc

SKU: DSK2344
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£61.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 06/2013
D4 1984 CCM 177 HP 10/2010 - 06/2013
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
D5 2400 CCM 180 HP 03/2006 - 06/2013
T5 2521 CCM 230 HP 03/2007 - 06/2013
2.0 D 1998 CCM 136 HP 01/2008 - 10/2009
2.4 D 2400 CCM 163 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D5 2400 CCM 179 HP 03/2006 - 12/2010
V40 Hatchback (525)
Description Cylinder Capacity Horse Power Year
T4 1984 CCM 180 HP 07/2013 - 12/2015
T4 GTDi 1596 CCM 180 HP 03/2012 - 12/2016
D2 1560 CCM 114 HP 03/2012 - 12/2016
D3 1984 CCM 150 HP 03/2012 - 03/2015
D4 1984 CCM 177 HP 03/2012 - 12/2014
T5 2497 CCM 254 HP 12/2012 - 12/2014
T5 1984 CCM 214 HP 03/2013 - 12/2015
D4 1969 CCM 190 HP 05/2014 - 08/2019
T5 1969 CCM 245 HP 05/2014 - 08/2019
T3 1969 CCM 152 HP 02/2015 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
V40 Cross Country (526)
Description Cylinder Capacity Horse Power Year
T4 AWD 1984 CCM 180 HP 07/2013 - 12/2015
T5 AWD 1984 CCM 214 HP 03/2013 - 12/2015
T5 AWD 2497 CCM 254 HP 10/2012 - 12/2016
T5 AWD 1969 CCM 245 HP 05/2014 - 08/2019
T4 AWD 1969 CCM 190 HP 05/2014 - 08/2019
D4 1969 CCM 190 HP 05/2014 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
T3 1498 CCM 152 HP 04/2015 - 08/2019
D3 1969 CCM 150 HP 04/2015 - 08/2019
T4 GTDi 1596 CCM 180 HP 10/2012 - 12/2016
D2 1560 CCM 114 HP 10/2012 - 12/2016
D3 1984 CCM 150 HP 10/2012 - 03/2015
V50 (545)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
T5 2521 CCM 220 HP 04/2004 - 12/2007
2.0 D 1998 CCM 136 HP 04/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
D5 2400 CCM 179 HP 04/2006 - 02/2008
T5 2521 CCM 230 HP 03/2007 - 12/2012

The Apec DSK2344 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 25 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 25
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2344
  • Barcode 5028906087449
  • VOLVO : 274521 2745214 31262720 31302573 31329122 31341644 31400938 31400942
  • APEC : SDK6740
  • BLUE PRINT : ADF124351
  • BORG & BECK : BBD5348
  • BORG & BECK : BBD5533
  • BORG & BECK : BBD5925S
  • BOSCH : 0 986 479 310
  • BOSCH : 0 986 479 680
  • BOSCH : 0 986 479 C75
  • DELPHI : BG4056
  • DELPHI : BG4056C
  • DELPHI : BG5216C
  • Fahren : FBD6224
  • FEBI BILSTEIN : 43870
  • HELLA : 8DD 355 128-541
  • MEYLE : 515 521 0034/PD
  • MINTEX : MDC1800
  • MINTEX : MDC1800C
  • NAPA : NBD5134
  • National : NBD2054
  • SKF : VKBD 80213 V1
  • TEXTAR : 92149100
  • TEXTAR : 92149105
  • VALEO : 197143
  • VALEO : 672552
