Apec DSK2390 Brake Disc - 1
Apec DSK2390 Brake Disc - 1
APEC

Apec DSK2390 Brake Disc

SKU: DSK2390
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£27.16 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
CORSA C (X01)
Description Cylinder Capacity Horse Power Year
1.8 (F08, F68) 1796 CCM 125 HP 09/2000 - 12/2009
TIGRA TwinTop (X04)
Description Cylinder Capacity Horse Power Year
1.4 (R97) 1364 CCM 90 HP 06/2004 - 12/2010
1.8 (R97) 1796 CCM 125 HP 06/2004 - 12/2010
1.3 CDTI (R97) 1248 CCM 69 HP 06/2004 - 12/2010
VAUXHALL
CORSA Mk II (C) (X01)
Description Cylinder Capacity Horse Power Year
1.2 Twinport (F08, F68) 1229 CCM 80 HP 07/2004 - 10/2006
1.2 16V (F08, F68) 1199 CCM 75 HP 09/2000 - 10/2006
1.8 16V (F08, F68) 1796 CCM 125 HP 08/2000 - 09/2006
1.3 CDTI 16V (F08, F68) 1248 CCM 69 HP 10/2003 - 04/2007
1.2 16V Dualfuel (F08) 1199 CCM 75 HP 08/2001 - 10/2006
TIGRA TwinTop (X04)
Description Cylinder Capacity Horse Power Year
1.4 1364 CCM 90 HP 06/2004 - 08/2009
1.8 1796 CCM 125 HP 06/2004 - 08/2009
1.3 CDTI 1248 CCM 69 HP 06/2004 - 08/2009

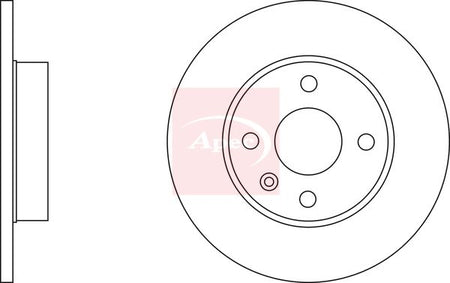

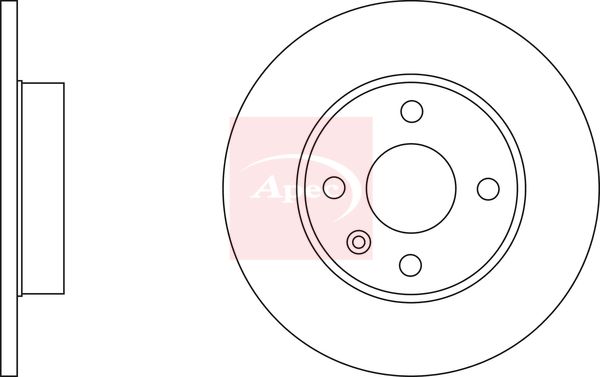

The Apec DSK2390 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 240 mm outer diameter, 10 mm brake disc thickness, and 57 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 240
Brake Disc Thickness [mm] : 10
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 57
Number of Holes : 4
Test Mark : 90R-02C 0085/0001
  • Vendor APEC
  • SKU DSK2390
  • Barcode 5028906087906
  • OPEL : 569112
  • VAUXHALL : 9196592
  • BLUE PRINT : ADW194349
  • BORG & BECK : BBD4320
  • BOSCH : 0 986 478 731
  • BREMBO : 08.9739.10
  • DELPHI : BG3771
  • FEBI BILSTEIN : 23553
  • HELLA : 8DD 355 108-251
  • MINTEX : MDC1519
  • National : NBD1146
  • SKF : VKBD 90720 S2
  • TEXTAR : 92111003
  • TRW : DF4200
  • VALEO : 186791
  • VALEO : 673070
