Apec DSK2398 Brake Disc - 1
Apec DSK2398 Brake Disc - 1
APEC

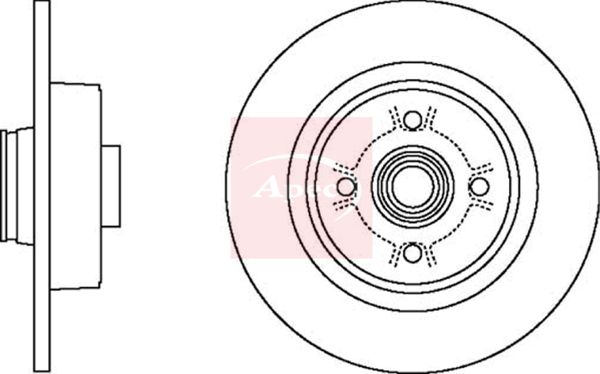

Apec DSK2398 Brake Disc

SKU: DSK2398
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£90.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
GRAND SCÉNIC II (JM0/1_)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 113 HP 04/2004 - 08/2006
2.0 1998 CCM 135 HP 04/2004 - 06/2009
1.5 dCi (JM02, JM13) 1461 CCM 101 HP 04/2004 - 11/2008
1.9 dCi (JM0G, JM12, JM1G, JM2C) 1870 CCM 120 HP 04/2004 - 05/2006
2.0 1998 CCM 163 HP 04/2004 - 06/2009
1.9 dCi (JM15) 1870 CCM 110 HP 05/2005 - 11/2008
1.9 dCi (JM14) 1870 CCM 131 HP 04/2004 - 02/2008
1.5 dCi (JM1E) 1461 CCM 106 HP 05/2005 - 01/2009
1.6 1598 CCM 112 HP 06/2006 - 11/2008
1.6 Flex 1598 CCM 112 HP 06/2006 - 06/2009
1.9 dCi 1870 CCM 116 HP 05/2005 - 01/2009
1.5 dCi 1461 CCM 103 HP 06/2006 - 11/2008

The Apec DSK2398 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 274 mm outer diameter, 11 mm brake disc thickness, and 30 mm stub axle diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 11
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Supplementary Article/Supplementary Info 2 : with wheel bearing
Height [mm] : 82
Stub Axle Diameter [mm] : 30
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 62
Number of Holes : 4
  • Vendor APEC
  • SKU DSK2398
  • Barcode 5028906087982
  • RENAULT : 7701208230 8200209774 8671018105
  • APEC : SDK6453
  • BLUE PRINT : ADR164325
  • BORG & BECK : BBD5742S
  • BORG & BECK : BBD5794S
  • BOSCH : 0 986 479 273
  • BOSCH : 0 986 479 277
  • BREMBO : 08.9792.17
  • BREMBO : 08.A238.17
  • BREMBO : 08.B650.17
  • DELPHI : BG9030RS
  • DELPHI : BG9030RSC
  • FEBI BILSTEIN : 21299
  • FEBI BILSTEIN : 28156
  • HELLA : 8DD 355 123-331
  • MEYLE : 16-15 523 0027/PD
  • MEYLE : 16-15 523 4116
  • MINTEX : MDC2201
  • National : NBD1500
  • TEXTAR : 92223200
  • TEXTAR : 92223203
  • VALEO : 675406
