Apec DSK2446 Brake Disc - 1
Apec DSK2446 Brake Disc - 1
APEC

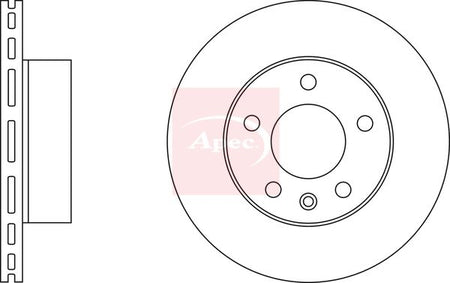

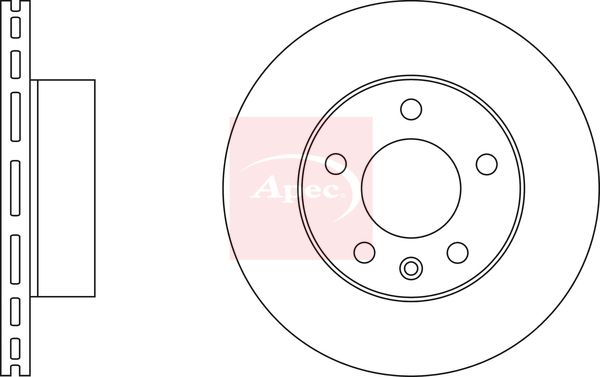

Apec DSK2446 Brake Disc

SKU: DSK2446
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£52.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LDV
MAXUS Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 95 HP 02/2005 - 12/2008
2.5 D 2499 CCM 120 HP 10/2005 - 12/2009
2.5 D 2499 CCM 135 HP 02/2006 - 12/2009
MAXUS Bus
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 95 HP 02/2005 - 12/2008
2.5 D 2499 CCM 120 HP 02/2005 - 12/2009
2.5 D 2499 CCM 135 HP 02/2006 - 12/2009
MAXUS Van
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 95 HP 02/2005 - 12/2008
2.5 D 2499 CCM 120 HP 10/2005 - 12/2009
2.5 D 2499 CCM 135 HP 02/2006 - 12/2009
2.5 D 2499 CCM 106 HP 04/2007 - 12/2009

The Apec DSK2446 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 278 mm outer diameter, 24 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 278
Brake Disc Thickness [mm] : 24
Height [mm] : 72
Bolt Hole Circle Ø [mm] : 118
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 72
Number of Holes : 5
Test Mark : 90R-02C 0370/0007
  • Vendor APEC
  • SKU DSK2446
  • Barcode 5028906088460
  • LDV : 545110026
  • BORG & BECK : BBD4685
  • DELPHI : BG4022
  • National : NBD1578
  • TEXTAR : 93191100
