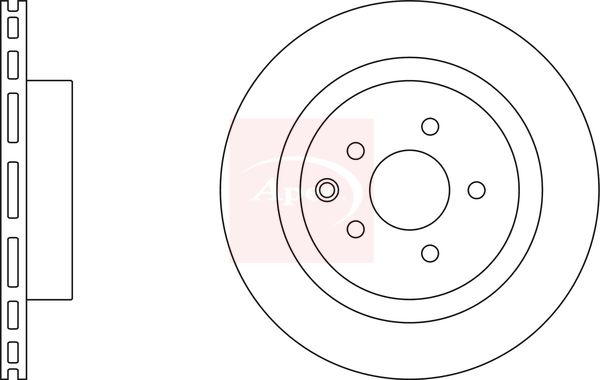

Apec DSK2501 Brake Disc - 1

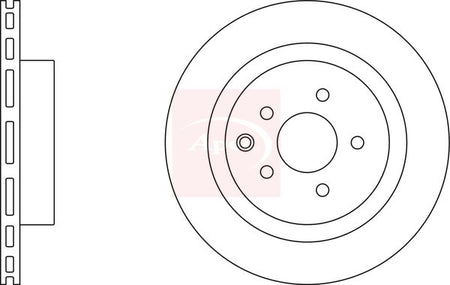

Apec DSK2501 Brake Disc - 1
APEC

Apec DSK2501 Brake Disc

SKU: DSK2501
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£34.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
350Z Coupe (Z33)
Description Cylinder Capacity Horse Power Year
3.5 (AAZ33) 3498 CCM 280 HP 10/2003 - 12/2006
3.5 (AAZ33) 3498 CCM 301 HP 09/2002 - 12/2008
3.5 3498 CCM 291 HP 11/2004 - 01/2007
3.5 (BAZ33) 3498 CCM 313 HP 09/2005 - 12/2008
350Z Roadster (Z33)
Description Cylinder Capacity Horse Power Year
3.5 (AAZ33) 3498 CCM 280 HP 03/2005 - 12/2007
3.5 (AAZ33) 3498 CCM 301 HP 11/2004 - 01/2007
3.5 (BAZ33) 3498 CCM 313 HP 09/2005 - 12/2009
SKYLINE Coupe (R34)
Description Cylinder Capacity Horse Power Year
2.6 Turbo 4x4 (BNR34) 2569 CCM 333 HP 01/1999 - 02/2008
2.6 Turbo 4x4 (BNR34) 2569 CCM 280 HP 10/1999 - 08/2002

The Apec DSK2501 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 322 mm outer diameter, 22 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 322
Brake Disc Thickness [mm] : 22
Height [mm] : 61
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2501
  • Barcode 5028906089016
  • NISSAN : 43206AA301 43206CD000 43206CD005
  • BLUE PRINT : ADN143110
  • BORG & BECK : BBD5405
  • BREMBO : 09.7356.21
  • BREMBO : 09.7356.2X
  • DELPHI : BG4162
  • DELPHI : BG4162C
  • HELLA : 8DD 355 120-271
  • MINTEX : MDC2615
  • National : NBD1560
  • TEXTAR : 92203603
  • VALEO : 197671
