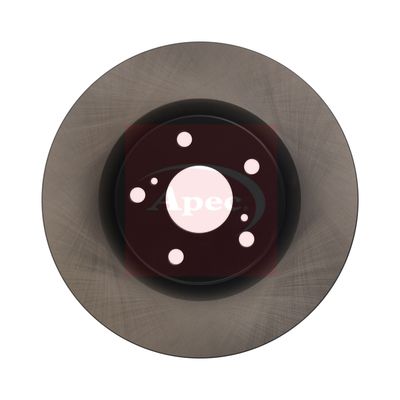

Apec DSK2514 Brake Disc

SKU: DSK2514
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£41.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 (ZRE152) 1798 CCM 136 HP 10/2006 - 09/2012
1.8 Hybrid (ZWE150_, ZWE150R) 1798 CCM 136 HP 09/2010 - 09/2012
AURIS (_E18_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE186_, ZWE186R) 1798 CCM 136 HP 10/2012 - 12/2018
AURIS Estate (_E18_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE186_, ZWE186R, ZWE186H) 1798 CCM 136 HP 07/2013 - 12/2018
MIRAI (JPD1_)
Description Cylinder Capacity Horse Power Year
FCV (JPD10_) 154 HP 12/2014 - 05/2020
PRIUS PLUS (_W4_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZVW40W, ZVW41W) 1798 CCM 136 HP From 05/2011
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018

The Apec DSK2514 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 28 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 296
Brake Disc Thickness [mm] : 28
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C0301/0060
  • Vendor APEC
  • SKU DSK2514
  • Barcode 5028906089146
  • TOYOTA : 4351202250 4351206090 4351206120 4351206121 4351206140 4351233130 4351242050 4351242090 4351242100
  • LEXUS : 4351233140
  • APEC : SDK6253
  • BLUE PRINT : ADT343206
  • BORG & BECK : BBD4606
  • BOSCH : 0 986 479 768
  • BOSCH : 0 986 479 S22
  • BOSCH : 0 986 479 W40
  • DELPHI : BG4114
  • DELPHI : BG4114C
  • DELPHI : BG4192
  • Fahren : FBD6253
  • FEBI BILSTEIN : 108384
  • HELLA : 8DD 355 118-561
  • MEYLE : 30-15 521 0120/PD
  • MINTEX : MDC1850
  • NAPA : NBD5436
  • National : NBD1455
  • SKF : VKBD 80129 V1
  • TEXTAR : 92168803
  • TRW : DF4828S
  • VALEO : 197152
  • VALEO : 672538
