Apec DSK2557 Brake Disc - 1
Apec DSK2557 Brake Disc - 1
APEC

Apec DSK2557 Brake Disc

SKU: DSK2557
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£90.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LEXUS
GS (_S19_)
Description Cylinder Capacity Horse Power Year
450h (GRS191_, GWS191_, GRS191R, GWS191R) 3456 CCM 345 HP 02/2006 - 11/2011
300 (GRS190_, GRS190R) 2995 CCM 249 HP 04/2005 - 11/2011
430 (UZS190_, UZS190R) 4293 CCM 283 HP 04/2005 - 11/2011
460 (URS190_, URS190R) 4608 CCM 347 HP 09/2007 - 11/2011
GS (_L1_)
Description Cylinder Capacity Horse Power Year
450h (GWL10_, GWL10R) 3456 CCM 345 HP 03/2012 - 09/2018
250 (GRL11_, GRL11R) 2499 CCM 209 HP From 01/2012
450h (GWL10_, GWL10, GWL10R) 3456 CCM 345 HP 03/2012 - 09/2018
300h (AWL10_, AWL10R) 2494 CCM 223 HP From 10/2013
IS III (_E3_)
Description Cylinder Capacity Horse Power Year
200t (ASE30) 1998 CCM 245 HP From 08/2015
RC (_C1_)
Description Cylinder Capacity Horse Power Year
300h (AVC10_, AVC10R) 2494 CCM 223 HP From 09/2014
200t (ASC10) 1998 CCM 245 HP From 08/2015
2.5 300h (AVC10) 2494 CCM 220 HP From 09/2014

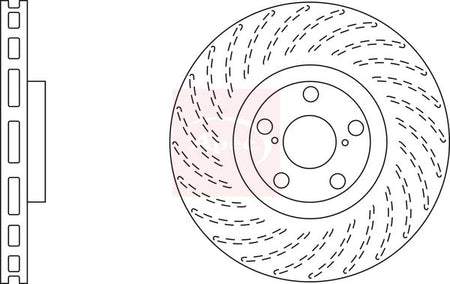

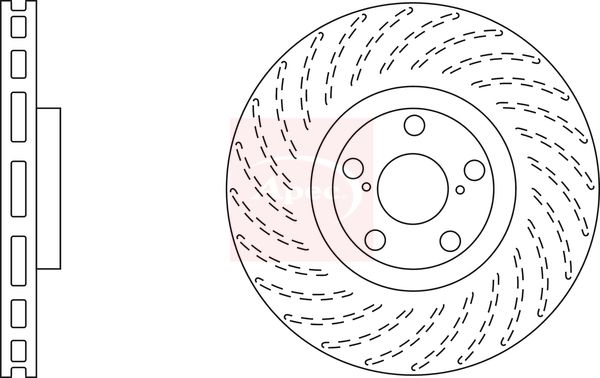

The Apec DSK2557 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 334 mm outer diameter, 30 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 334
Brake Disc Thickness [mm] : 30
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK2557
  • Barcode 5028906089573
  • LEXUS : 4351622010 4351630061
  • BLUE PRINT : ADT343201C
  • BLUE PRINT : ADT343202C
  • BORG & BECK : BBD5783S
  • BORG & BECK : BBD5784S
  • DELPHI : BG9012
  • HELLA : 8DD 355 112-871
  • HELLA : 8DD 355 129-841
  • MINTEX : MDC2353L
  • TEXTAR : 92147800
  • TEXTAR : 92147803
  • TRW : DF4856S
  • VALEO : 672678
